LANDYINDUS S-BB Skid Steer Hydraulic Box Broom Sweeper Bucket | Bidirectional 72"/83" Quick-Change Brush

LANDYINDUS S-BB Skid Steer Hydraulic Box Broom Sweeper Bucket | Bidirectional 72"/83" Quick-Change Brush

Forward for fine debris. Reverse for rock and gravel. Lift and tilt to dump. The LANDYINDUS S-BB Skid Steer Hydraulic Box Broom is a heavy-duty quick attach sweeping attachment that combines sweeping, collecting, and dumping into a single integrated operation — available in 72" (1830mm) and 83" (2110mm) working widths. Unlike conventional rotary brooms that scatter debris or standard pickup brooms with fixed-direction sweeping, the S-BB delivers full material handling capability across the complete range of surface debris types in a single attachment.

Bidirectional Brush System — Fine Debris Forward, Rock & Gravel in Reverse

The standout feature of the S-BB is its bidirectional brush system:

• Forward rotation — sweeps dirt, dust, and fine debris efficiently from paved and unpaved surfaces
• Reverse rotation — collects rocks, gravel, and heavier construction debris that forward-only brooms leave behind

One attachment. Both directions. Every debris type on your job site handled without swapping implements.

Box Bucket Design — More Volume, Less Recirculation

The enclosed box bucket hopper holds considerably more debris volume per cycle than open-frame collection systems. The box geometry significantly reduces material recirculation — the common problem with conventional sweepers where swept debris gets picked up, partially deposited, and re-swept repeatedly rather than being cleanly captured. When the hopper is full, dumping is as simple as lifting and tilting the attachment — no chains, no manual release mechanisms, no dismounting required.

Quick-Change Brush System — No Hydraulic Line Disconnection

The quick-change brush system allows you to replace worn brush elements without disconnecting hydraulic lines — keeping maintenance downtime to a minimum and eliminating hydraulic fluid spillage during routine brush replacement. Standard supply includes nylon brush elements: 38 on the 72" model and 44 on the 83" model, fitted to a 550mm diameter drum for consistent sweeping action across the full working width.

Built for Commercial & Municipal Daily Use

The hydraulic system operates at 16 MPa / 60 LPM, compatible with standard skid steer auxiliary hydraulic circuits. Available in working weights of 439kg (72") and 492kg (83"), the S-BB is built with the structural mass needed for stable, consistent brush contact across the full sweeping width on paved roads, parking lots, construction sites, and municipal surfaces.

Key Features

• Bidirectional brush: forward for fine debris, reverse for rock and construction debris
• Available in 72" (1830mm) and 83" (2110mm) working widths
• Enclosed box bucket hopper — higher volume, less material recirculation vs. conventional sweepers

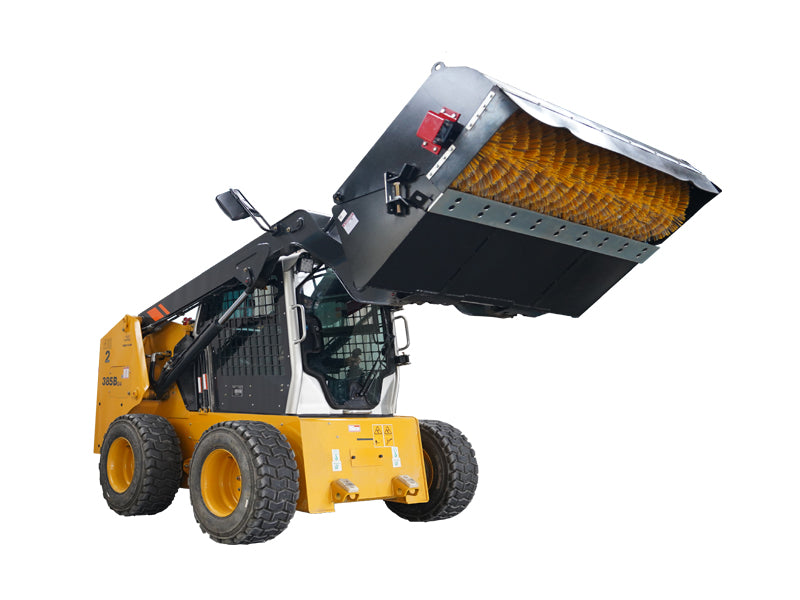

• Lift-and-tilt dump — no chains, no manual release, no dismounting required
• Quick-change brush system — replace brushes without disconnecting hydraulic lines
• 550mm brush drum with nylon brush elements (38 pcs / 44 pcs)
• 16 MPa / 60 LPM hydraulic system — compatible with standard skid steer aux circuits
• Universal quick tach compatible — no adapters or modifications required

Technical Drawing:

Specifications
