LANDYINDUS S-HAB Skid Steer Hydraulic Angle Rotary Broom | 72" 30° Sweep Snow Debris Quick Attach

LANDYINDUS S-HAB Skid Steer Hydraulic Angle Rotary Broom | 72" 30° Snow & Debris Sweep Quick Attach

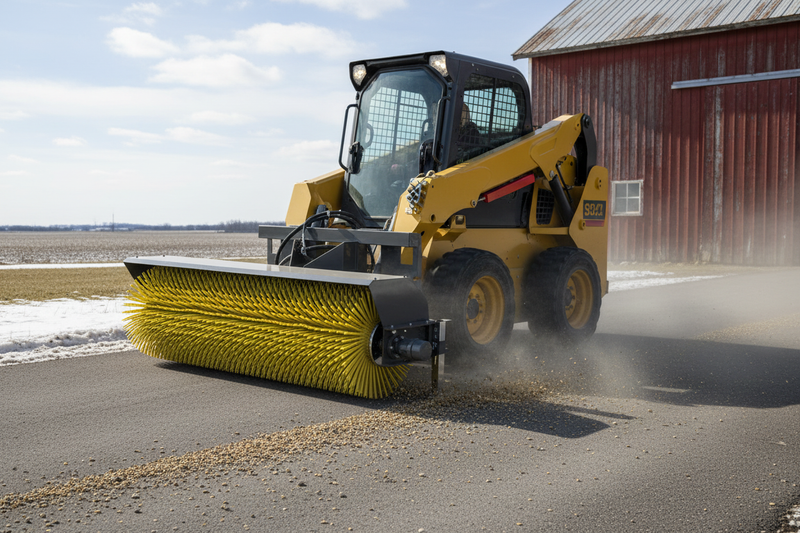

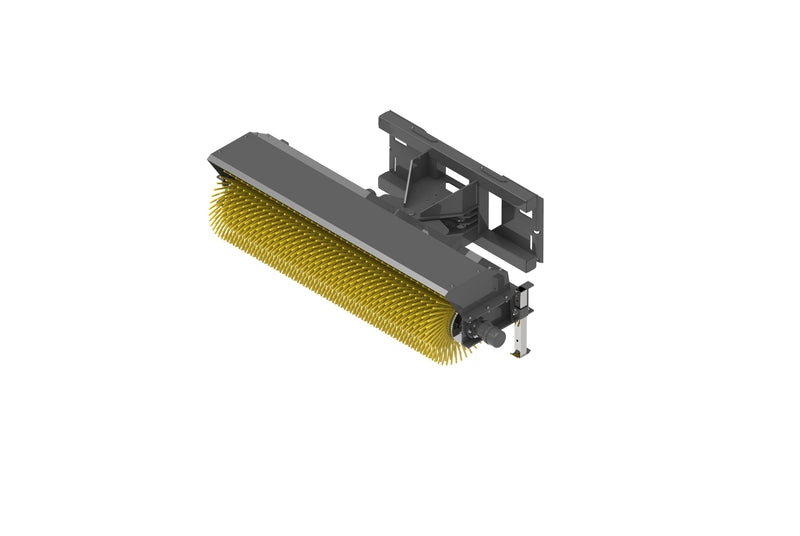

Sweep wider. Direct smarter. Finish faster. The LANDYINDUS S-HAB1830 Skid Steer Hydraulic Angle Rotary Broom is a versatile quick attach sweeping attachment designed for efficient clearing of dirt, debris, gravel, light snow, and loose material from paved surfaces, gravel lots, construction sites, farm lanes, and warehouse floors. With a 1830mm (72") sweeping width and a 550mm diameter brush drum fitted with 38 brush elements, this rotary broom covers a wide swath in every pass — reducing total sweep time and the number of passes required to clear large surface areas.

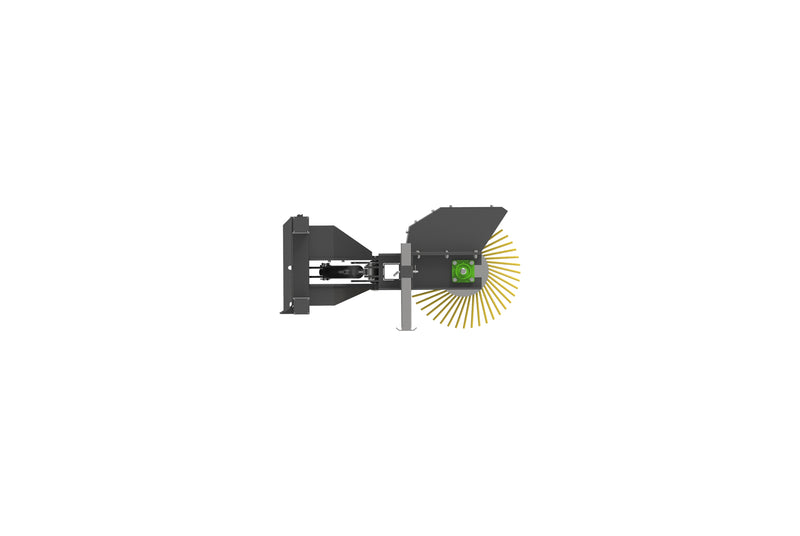

30° Hydraulic Angle Adjustment — Direct Material Where You Need It

The standout operational feature of the S-HAB1830 is its 30-degree hydraulically adjustable angle, allowing you to direct swept material to either side of the machine without dismounting or reconfiguring the attachment. This angled sweeping action is particularly effective for:

• Clearing debris off road edges and sweeping into windrows for collection
• Clearing snow to the side of driveways, lanes, and parking lots
• Working along walls, curbs, and barriers where straight-ahead sweeping pushes material into obstacles

Directional sweeping control without stopping. That’s the operational advantage the 30° angle delivers on every job.

Hydraulically Efficient — Only 30 LPM Flow Required

The hydraulically driven brush drum operates at 16 MPa with a flow requirement of just 30 LPM — making the S-HAB1830 one of the most hydraulically efficient sweeping attachments available for skid steers. The low flow requirement means compatibility with a wider range of skid steer hydraulic systems, including machines with lower auxiliary hydraulic output, without sacrificing sweeping performance.

72" Sweep Width — 38 Brush Elements for Maximum Coverage

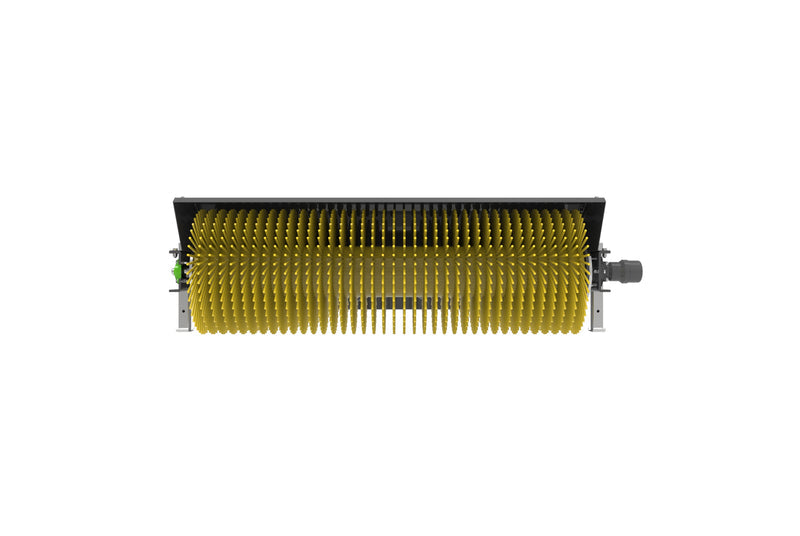

The 1830mm (72") sweeping width combined with 38 brush elements on the 550mm drum delivers consistent, thorough coverage across the full sweep path on every pass. Fewer passes per area means less machine time, less fuel, and more ground cleared per hour.

Lightweight at 303kg — Minimal Impact on Lift Capacity

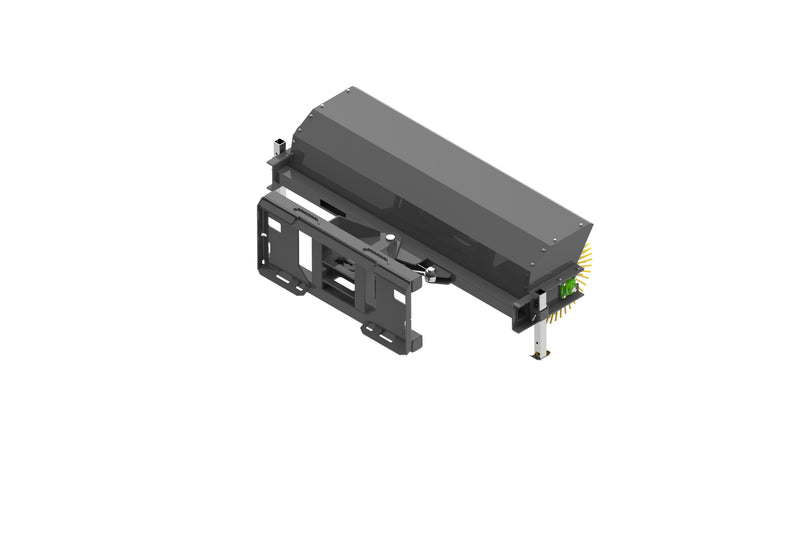

At 303kg and compact dimensions of 2157mm × 1167mm × 595mm, the S-HAB1830 minimizes the impact on your skid steer's lift capacity and fuel consumption during sweeping operations. Compatible with standard skid steer quick tach systems and most tractor loaders — mounts and dismounts quickly without tools.

Key Features

• 1830mm (72") sweeping width — maximum coverage per pass
• 30° hydraulic angle adjustment — direct material left or right without dismounting
• 550mm brush drum with 38 brush elements for thorough, consistent sweeping
• 16 MPa / 30 LPM — hydraulically efficient, compatible with lower-output machines
• Clears dirt, debris, gravel, and light snow from paved and unpaved surfaces
• Universal quick tach compatible — no tools or modifications required

Technical Drawing:

Specifications
