LANDYINDUS S-HD-SSRSA Heavy-Duty Skid Steer Quick Attach Hay Bale Spear Frame | Dual Spear

LANDYINDUS S-HD-SSRSA Heavy-Duty Skid Steer Quick Attach Hay Bale Spear Frame | Dual Spear

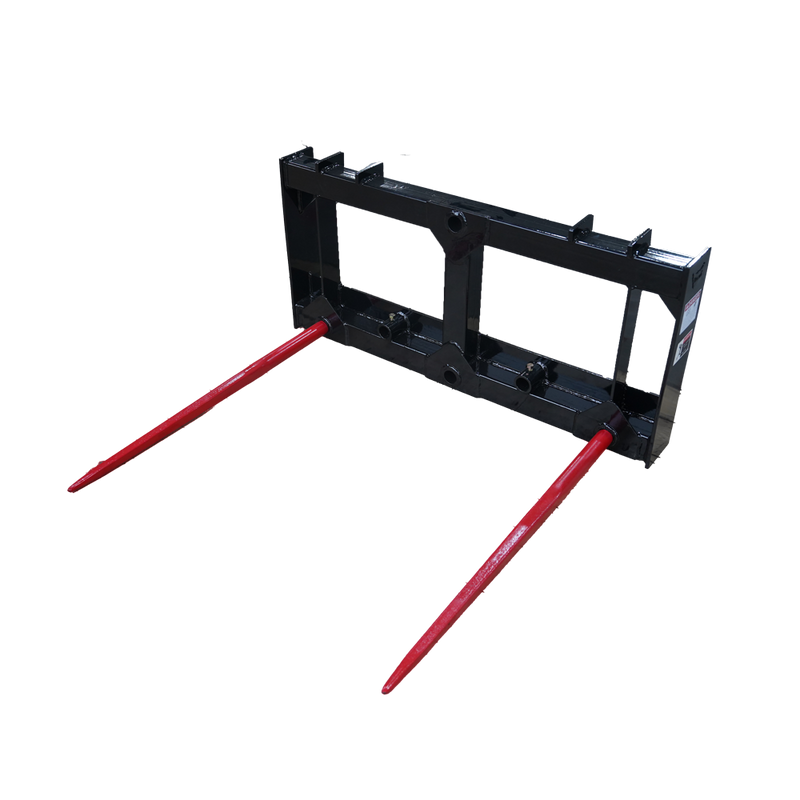

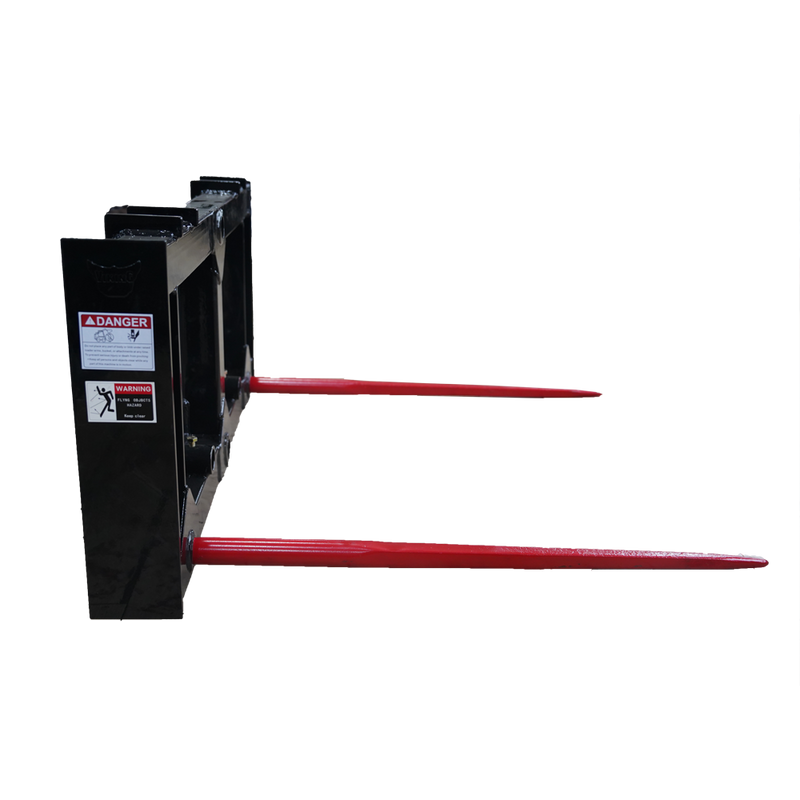

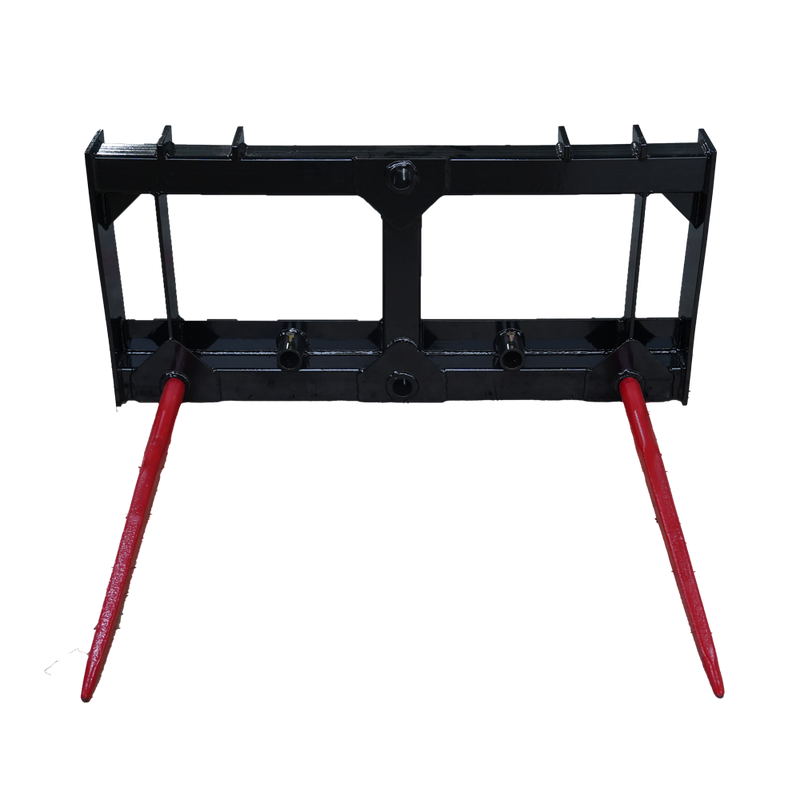

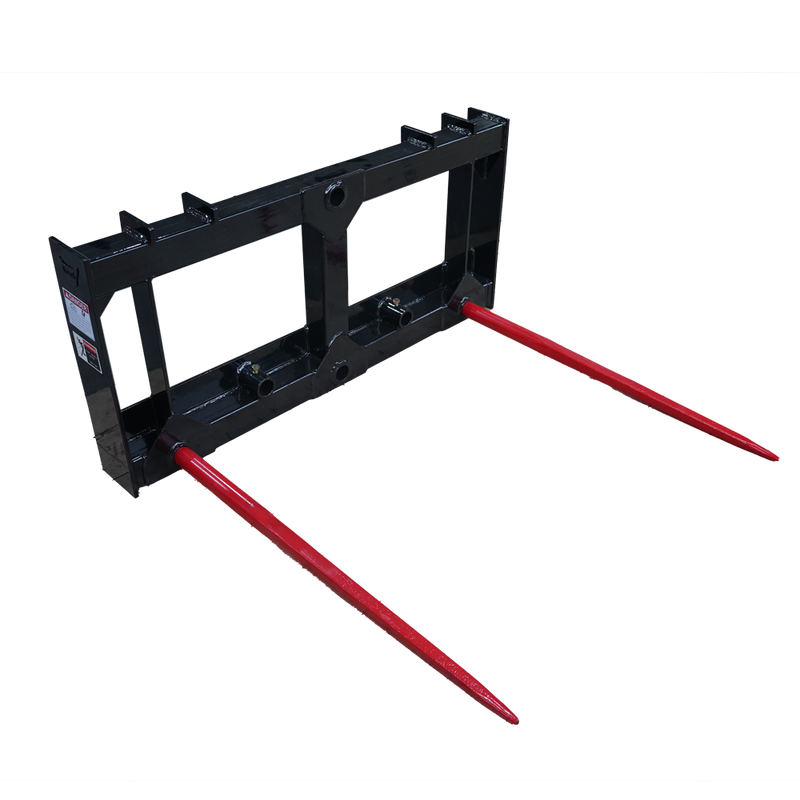

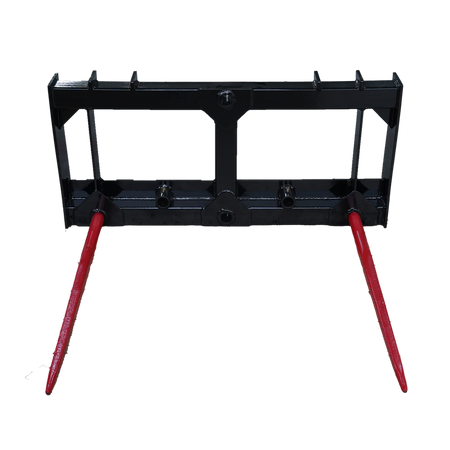

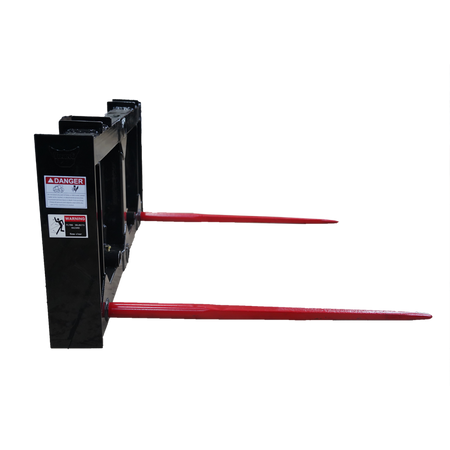

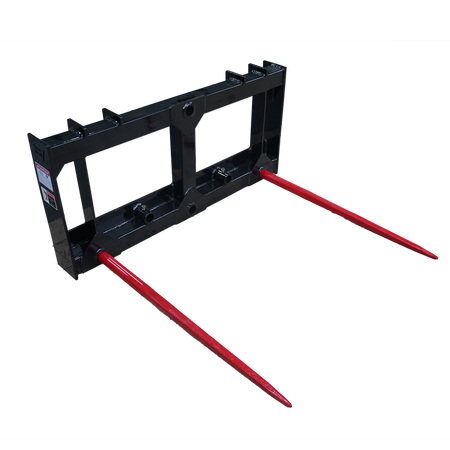

Built heavier. Built deeper. Built for the bales that break standard frames. The LANDYINDUS S-HD-SSRSA Heavy-Duty Skid Steer Hay Bale Spear Frame is a robust quick attach attachment engineered for serious bale handling on farms, ranches, and livestock operations. Featuring two main spears — each φ45mm × 1100mm — the dual-spear configuration delivers a balanced, two-point penetration into round and square bales for a more stable, secure lift compared to single-spear alternatives.

Dual Spear Configuration — Balanced Lift, No Bale Rotation

The two-spear design keeps bales centered and prevents rotation during transport, giving you confident control whether you're moving bales across a field, stacking in a barn, or loading onto a trailer. Two penetration points distribute the load evenly across the frame — reducing stress on individual spear mounting points and delivering a cleaner, more controlled lift on every cycle.

HD Deep Frame Construction — 1117mm Frame Depth

What distinguishes the S-HD-SSRSA from standard bale spear frames is its heavy-duty deep frame construction with a 1117mm frame depth — significantly greater structural clearance and spear support than conventional shallow-frame designs. This extended depth keeps the spears rigidly aligned under load, reducing flex and lateral movement during heavy lifts. A critical advantage when handling large, dense round bales that put maximum stress on the spear mounting points. The "HD" designation reflects reinforced build quality throughout — from frame steel gauge to spear attachment points.

Sized for Stability and Balance

At 1160mm wide × 595mm tall and weighing 94kg, the S-HD-SSRSA is proportioned for stability and balance on your skid steer's quick attach plate, keeping your machine well-centered under load during bale transport and stacking.

Universal Quick Tach — No Adapters Required

Compatible with standard universal skid steer quick tach systems and most tractors equipped with a quick attach loader, the S-HD-SSRSA mounts directly without adapters or modifications — a straightforward addition to any attachment lineup.

Key Features

• Dual main spears: φ45mm × 1100mm × 2 pcs — balanced two-point bale penetration
• HD deep frame: 1117mm depth for superior spear rigidity under heavy load
• Prevents bale rotation and shifting during transport
• Reinforced frame steel gauge and spear attachment points throughout
• Handles heavy round and square bales on farms, ranches, and livestock operations
• Universal quick tach compatible — no adapters or modifications required

Technical Drawing:

Specifications
