LANDYINDUS S-HS1160 Skid Steer Quick Attach Hay Bale Spear Frame | 3000 lb Forged | 1 Main + 2 Stabilizer Spears

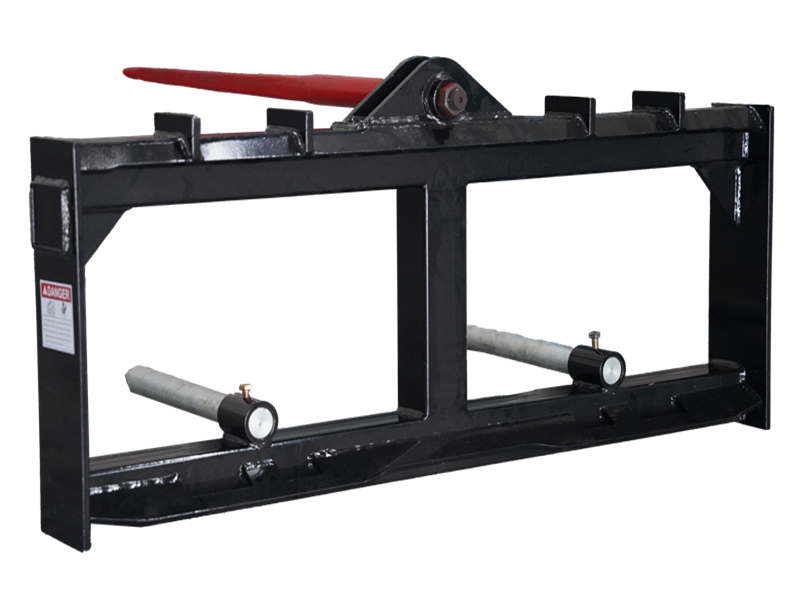

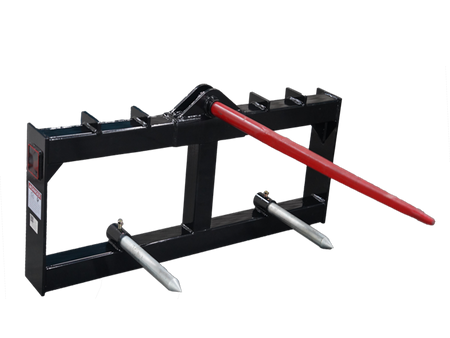

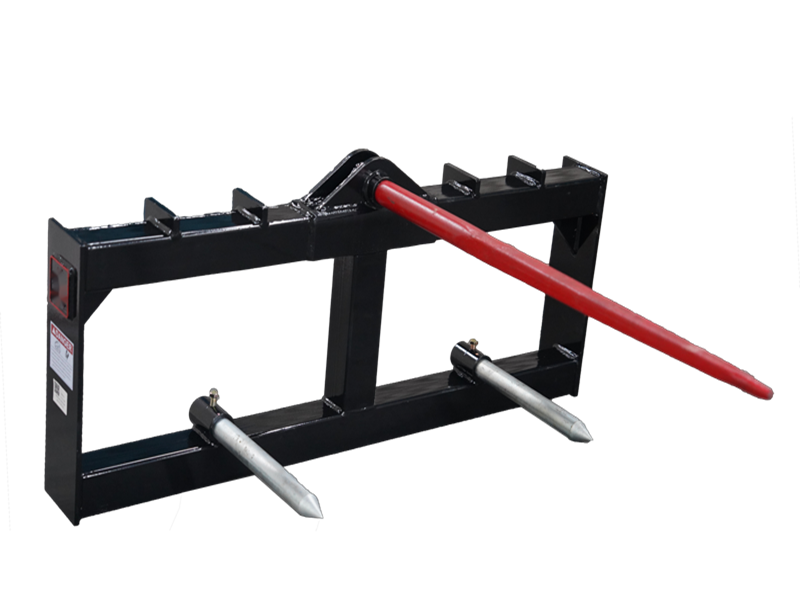

LANDYINDUS S-HS1160 Skid Steer Quick Attach Hay Bale Spear Frame

Handle your heaviest bales with confidence. The LANDYINDUS S-HS1160 Skid Steer Hay Bale Spear Frame is a heavy-duty quick tach attachment engineered for efficient bale handling on farms, ranches, and livestock operations. Rated to a 3000 lb (1360kg) safe working load, the S-HS1160 gives you the lifting and carrying capacity to tackle the heaviest round and square bales in hay, straw, and silage operations — all from your existing skid steer quick attach system with no adapters or modifications required.

Three-Point Spear Configuration for Secure Bale Control

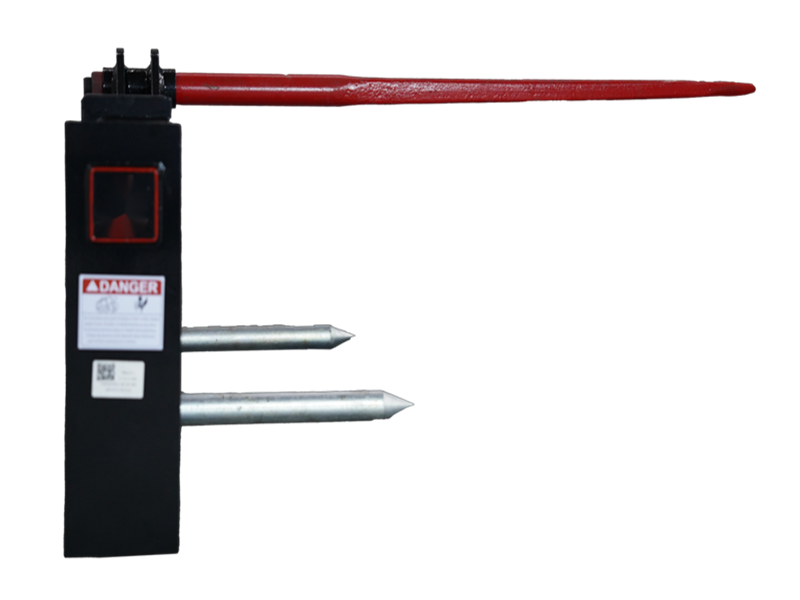

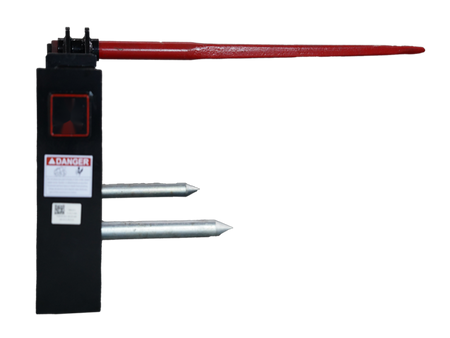

The S-HS1160 comes equipped with 1 main spear + 2 stabilizer spears, creating a three-point contact configuration that keeps bales securely centered and balanced during lifting, carrying, and stacking:

• Main Spear: φ45mm diameter × 1100mm length — deep, reliable penetration into the core of round and square bales
• Stabilizer Spears: φ40mm × 432mm × 2 pcs — prevent bale rotation and sliding during transport across uneven terrain or when stacking at height

HD Forged Steel Spears — Not Welded, Not Fabricated

All spears are HD forged steel construction — denser, stronger, and more resistant to bending under load than round-bar, hollow-tube, or plate-fabricated alternatives commonly found on lower-cost bale spears. When you drive a forged spear into a tightly packed bale, it penetrates cleanly and holds firm, rather than deflecting off the surface or pushing the bale sideways. That's the difference forged construction makes on every lift.

Universal Quick Tach — Mount in Seconds, No Tools Required

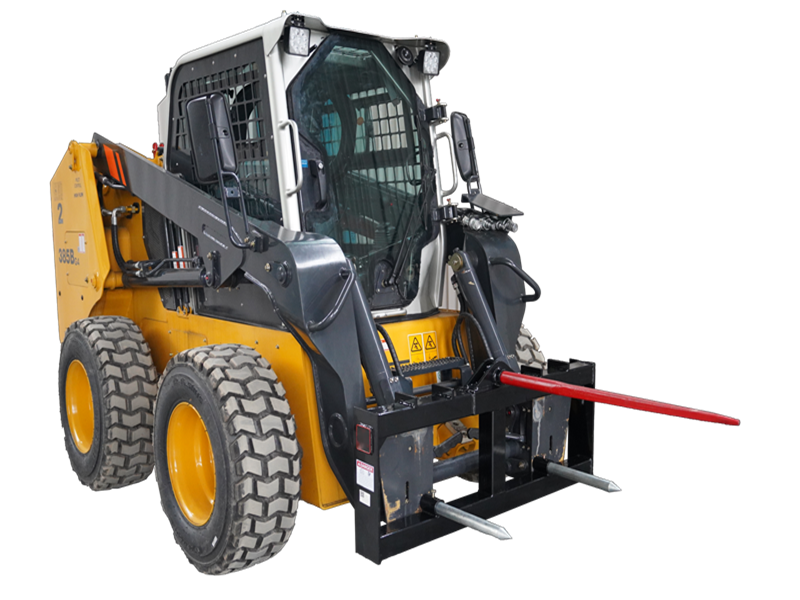

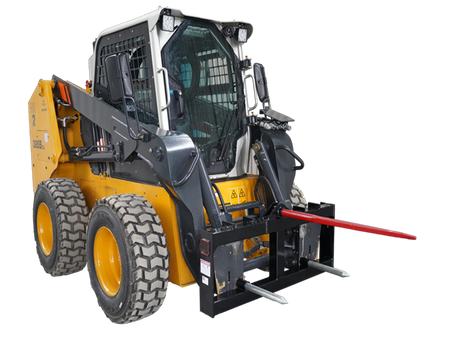

Compatible with full-size skid steers and most tractors equipped with a universal quick tach system, the S-HS1160 mounts and dismounts quickly without tools — making it easy to swap in and out of your attachment rotation as your workload demands.

Sized for Stability and Balance

At 1160mm wide × 480mm tall and weighing 78kg, the S-HS1160 frame is proportioned for stability and balance on your machine's quick attach plate, keeping your skid steer well-centered under load during bale transport and stacking.

Key Features

• 3000 lb (1360kg) safe working load — handles the heaviest round and square bales
• Three-point spear configuration: 1 main + 2 stabilizer spears for secure bale control
• HD forged steel spears — stronger and more durable than welded or fabricated alternatives
• Universal quick tach compatible — no adapters or modifications required
• Quick-change design — mounts and dismounts in seconds without tools

Technical Drawing:

Specifications
