The highest-capacity bale grab in its class. The LANDYINDUS S-RBG170 Skid Steer Hydraulic Bale Grab is rated to a 2000kg safe working load — built for operators handling the heaviest round bales in hay, silage, and straw operations where standard-capacity grabs fall short. With a full-range opening from 0mm to 1798mm, the S-RBG170 accommodates any round bale diameter you'll encounter, while the full-close capability lets you grip smaller or irregularly shaped loads that a fixed-minimum-opening grab simply cannot handle.

Greasable Pivot Pins & Bronze Bushes — Built for Long-Term Daily Use

What sets the S-RBG170 apart from sealed, non-serviceable designs is its greasable pivot pins on both the arms and the hydraulic ram, combined with greasable bronze bushes in the arm ends. This combination of serviceable pivot points and bronze bush bearings significantly reduces wear at the highest-stress connection points — extending the working life of the grab and reducing component replacement frequency compared to sealed alternatives. For operators running the attachment daily in demanding farm and feedlot conditions, the ability to regrease pivot points on a regular schedule is a practical maintenance advantage that pays off over years of use.

Full-Range Opening — 0mm to 1798mm

The hydraulic arms open from fully closed (0mm) to a maximum of 1798mm — the widest opening range available in this class. Full-close capability means you can grip smaller, irregularly shaped, or partially collapsed bales that fixed-minimum-opening grabs leave behind. One attachment handles every bale on your operation.

2000kg SWL — Smooth Power at Maximum Load

The hydraulic system operates at 16 MPa with a flow requirement of 60 LPM, delivering smooth, powerful, and responsive arm movement even when gripping the heaviest 2000kg bale loads. No hesitation, no lag — just controlled, confident grip from open to close.

Heavy-Duty Frame — Stable Under Commercial-Scale Loads

At 1432mm wide × 1535mm tall × 859mm deep and weighing 266kg, the S-RBG170's robust steel frame provides the structural mass and rigidity needed to stay stable and balanced on your skid steer's quick attach plate during heavy lifts and long-distance bale carries across fields and yards.

Key Features

• 2000kg safe working load — highest-capacity bale grab in its class
• Full-range opening: 0mm to 1798mm — handles any round bale diameter including full-close grip
• Greasable pivot pins on arms and hydraulic ram for long-term serviceability
• Greasable bronze bushes in arm ends — reduces wear at highest-stress connection points
• 16 MPa operating pressure / 60 LPM hydraulic flow for smooth, powerful arm movement
• Universal quick tach compatible — no adapters or modifications required

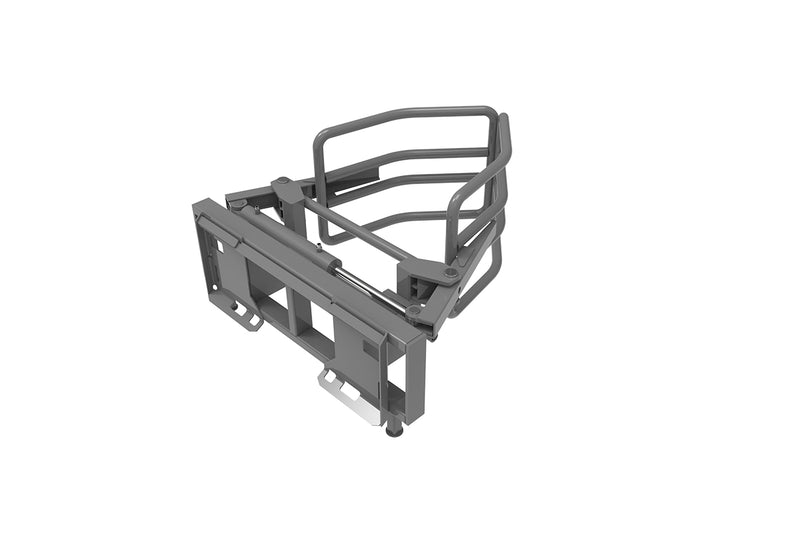

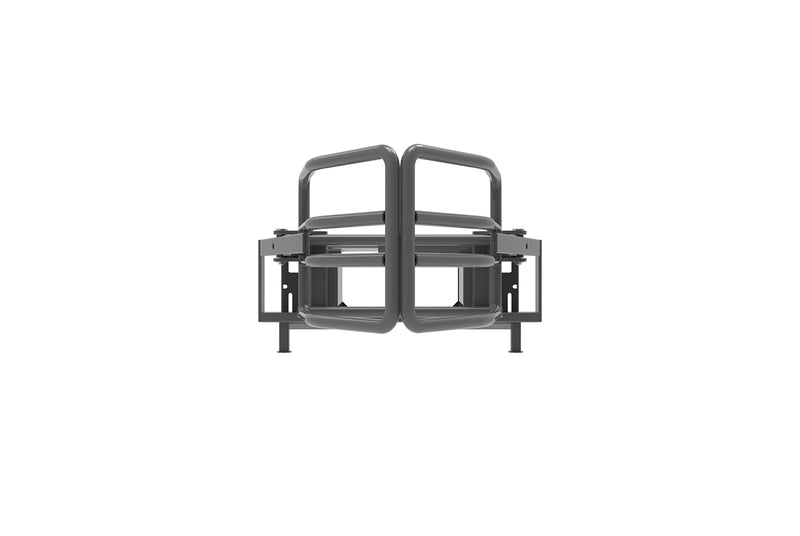

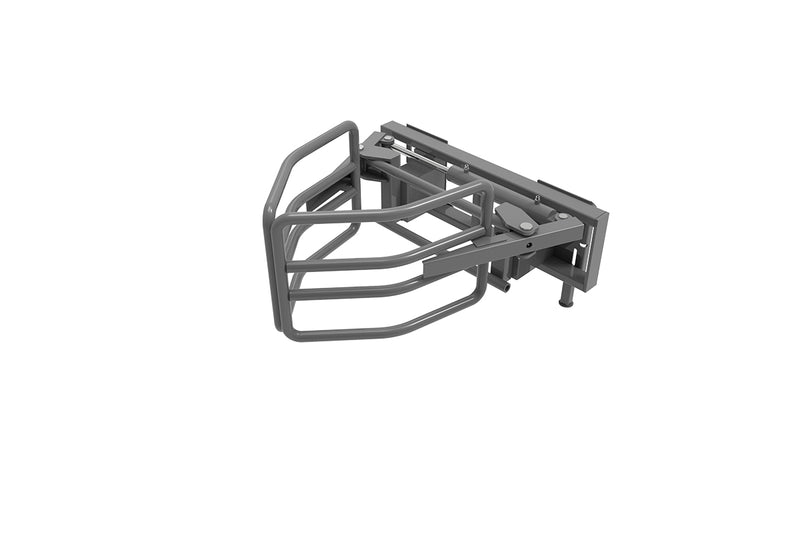

Technical Drawing:
