LANDYINDUS S-RBS1220 Skid Steer Quick Attach Round Bale Spear Frame | 2200 lb Dual Spear

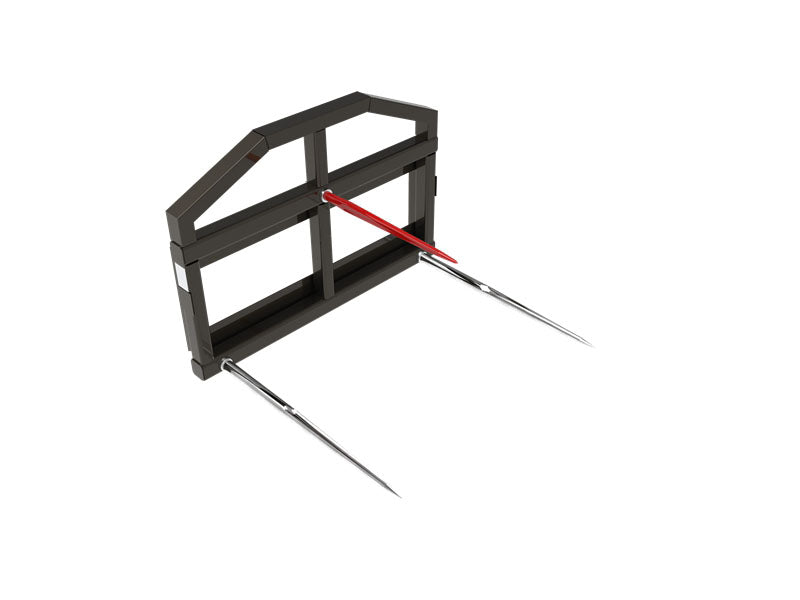

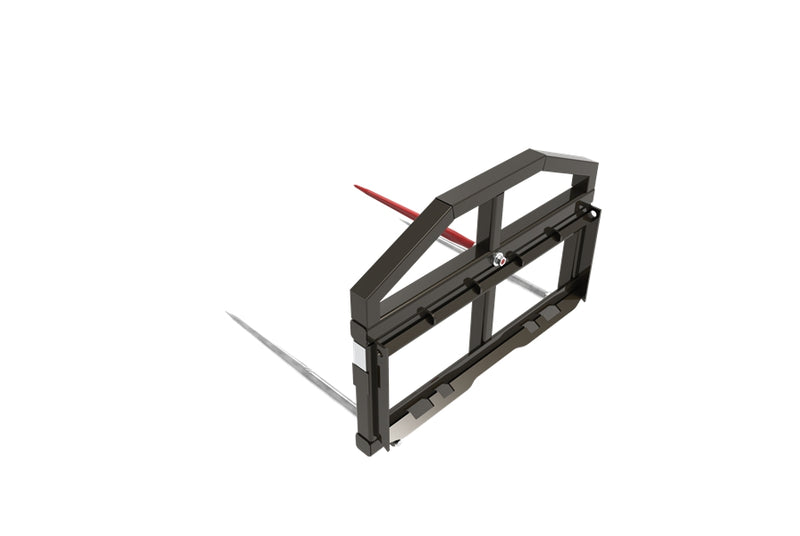

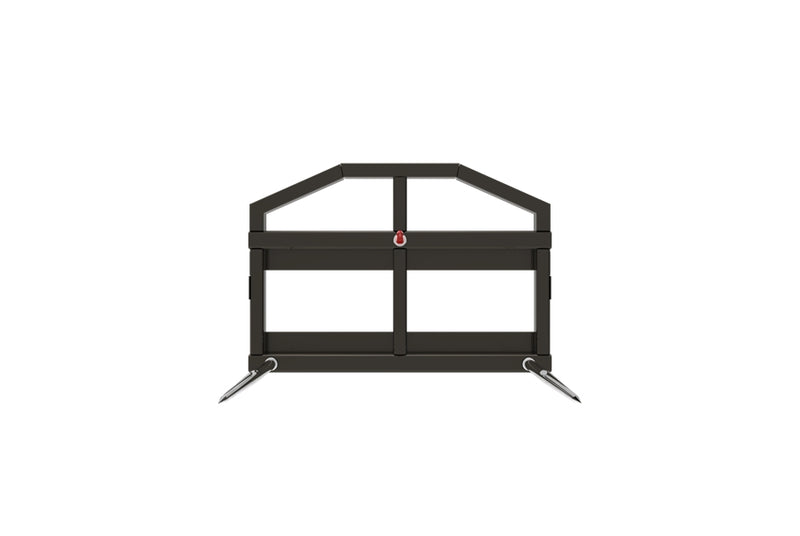

LANDYINDUS S-RBS1220 Skid Steer Quick Attach Round Bale Spear Frame

Move more bales in less time. The LANDYINDUS S-RBS1220 Skid Steer Round Bale Spear Frame is a heavy-duty quick attach attachment engineered for efficient handling of round bales, square bales, and any size hay or straw bale on farms, ranches, and livestock operations. Rated to a 1000kg safe working load, the S-RBS1220 delivers the lifting and carrying capacity your operation demands — all from your existing skid steer quick tach system with no adapters or modifications required.

Dual Main Spears for Balanced, Stable Bale Lifts

Unlike single-spear bale handlers, the S-RBS1220 features two main spears — each φ45mm × 1100mm — that penetrate the bale from two points simultaneously, delivering a more balanced, stable lift that reduces the risk of the bale rolling or shifting during transport. A single φ36mm × 810mm stabilizer spear provides additional centering support, keeping the bale securely positioned throughout every carry and stack cycle. The short removable centre tine adds a safety element, allowing you to remove it when working in confined spaces or when the application doesn't require it.

Optional Adjustable High Back — Carry Two Bales at Once

One of the standout features of the S-RBS1220 is the optional adjustable high back, which allows you to carry two bales simultaneously in a single pass. For high-volume hay operations, livestock farms, or bale stacking work where time efficiency matters, moving two bales at once can cut your handling time in half and significantly reduce fuel and machine hours over the course of a season.

Conus 2 Taper Bush Fitting — Precision Spear Connection

The frame includes a Conus 2 taper bush fitting — a precision-machined, self-centering spear connection that ensures a tight, rattle-free fit between the spear and the frame. This engineering detail extends spear life and reduces wear over time, making the S-RBS1220 a long-term investment for serious bale handling operations.

Sized for Stability and Balance

At 1220mm wide × 900mm tall and weighing 108kg, the S-RBS1220 is proportioned for stability and balance on your skid steer's quick attach plate, keeping your machine well-centered under load during bale transport and stacking.

Key Features

• 1000kg safe working load — handles the heaviest round and square bales
• Dual main spears (φ45mm × 1100mm × 2 pcs) for balanced, stable bale lifts
• φ36mm × 810mm stabilizer spear for secure bale centering
• Short removable centre tine for added safety and versatility
• Optional adjustable high back — carry two bales simultaneously
• Conus 2 taper bush fitting for precision, rattle-free spear connection
• Universal quick tach compatible — no adapters or modifications required

Technical Drawing:

Specifications
