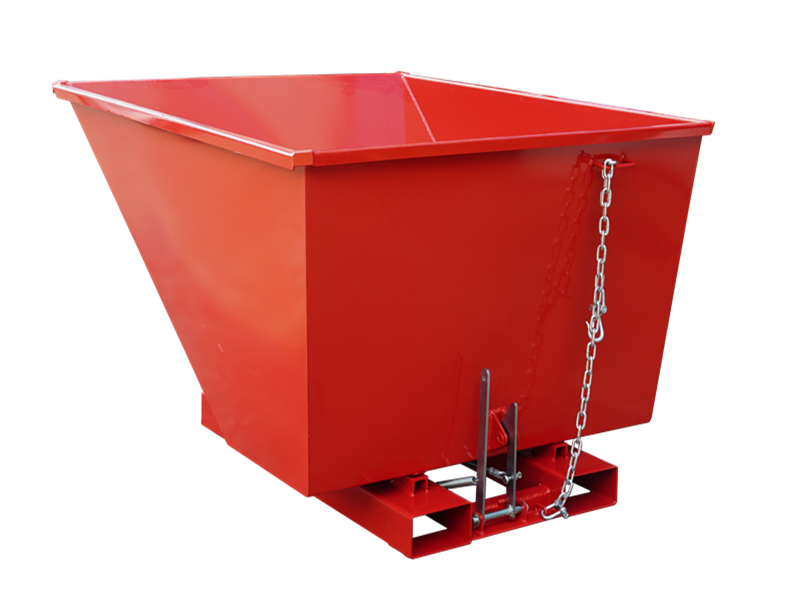

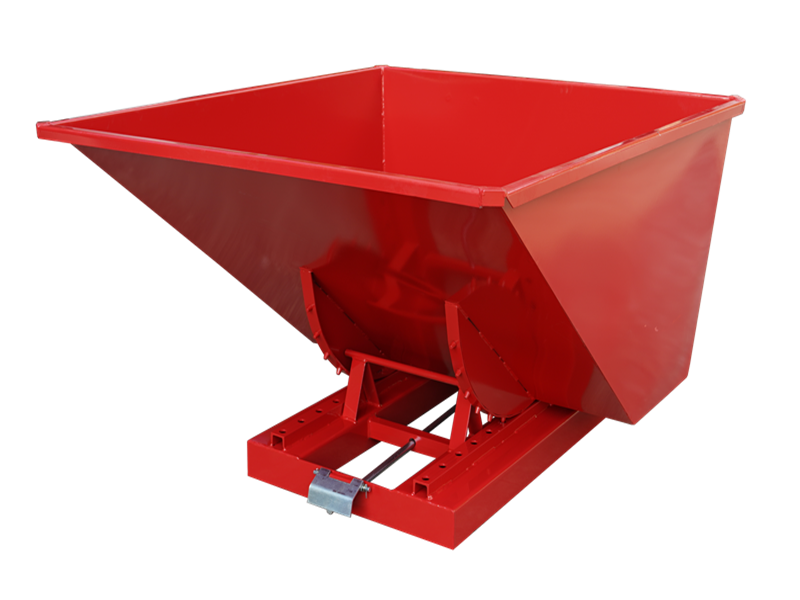

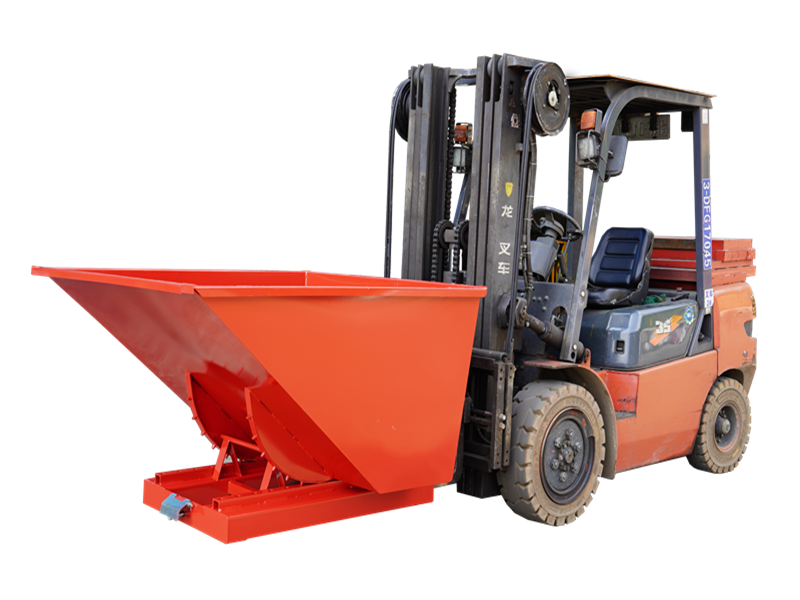

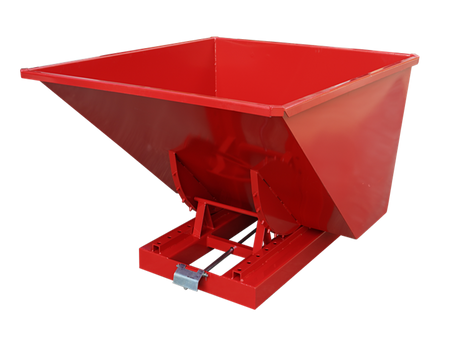

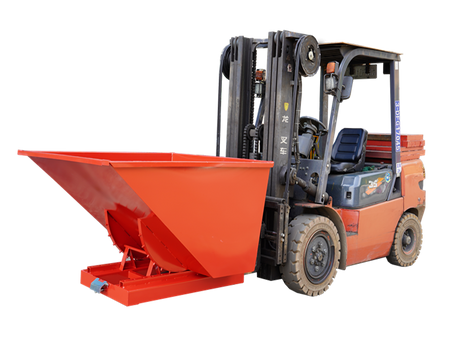

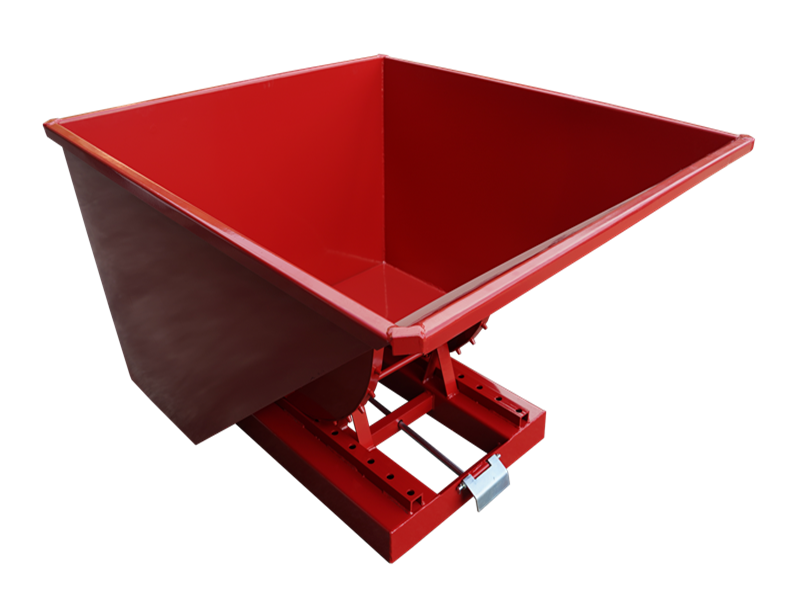

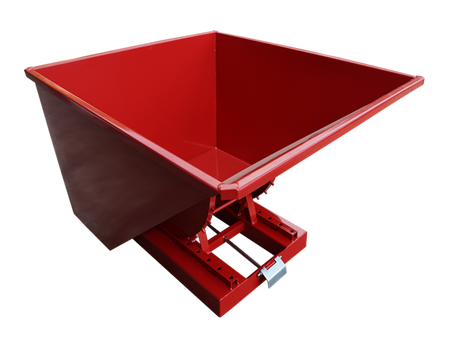

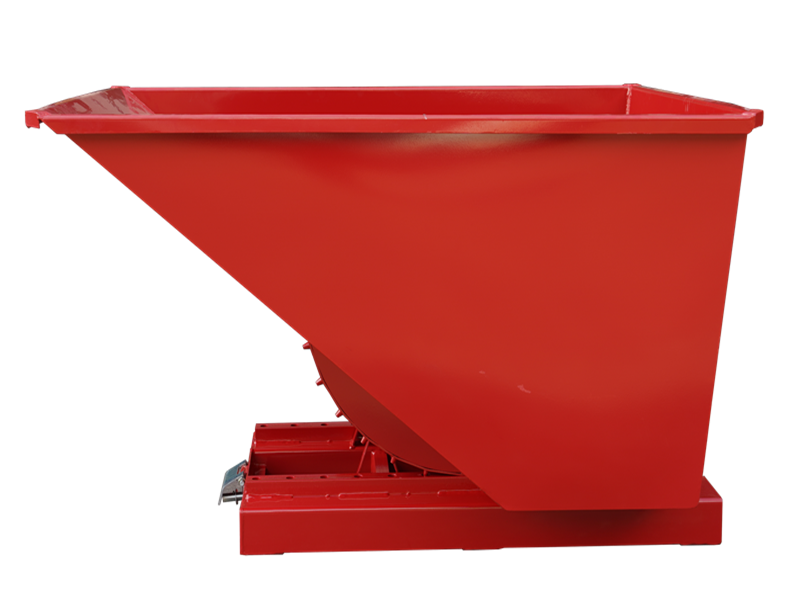

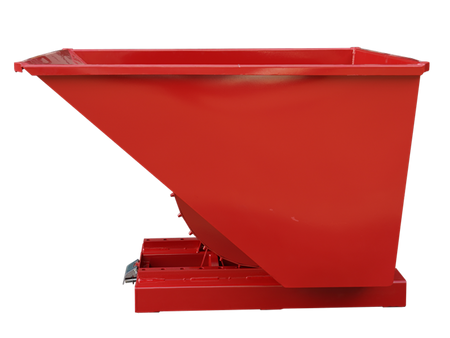

LANDYINDUS Self-Dumping Hopper Heavy Duty Steel Forklift Tipping Bin 0.15–3.0m³ F-TS Series
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!
Product Overview
Looking for the ultimate waste management solution? The LANDYINDUS Heavy Duty Steel Self-Dumping Hopper offers scalable capacities and automatic emptying for effortless bulk material handling.
The Heavy Duty Steel Self-Dumping Hopper is the industry's most versatile forklift tipping bin solution for waste sorting, bulk material handling, and industrial waste management, available in nine capacity configurations ranging from 0.15m³ to 3.00m³ and safe working loads from 1200kg to 2000kg to suit operations of every scale. Each self-dumping hopper is fabricated from heavy-gauge steel with a 3mm main plate thickness throughout, reinforced fork pockets sized at 200×100mm with 525mm pocket centres, and a high-quality painted finish engineered to maximize corrosion resistance, structural integrity, and service life across demanding industrial environments. Whether managing small-volume scrap collection or large-scale bulk waste transfer, this range of forklift tipping bins provides a purpose-built, cost-effective solution for every material handling requirement.
Core Selling Points
- Automatic Emptying: Integrated spring pressure plate mechanism enables fully automatic emptying when tipped, releasing contents cleanly without manual intervention.

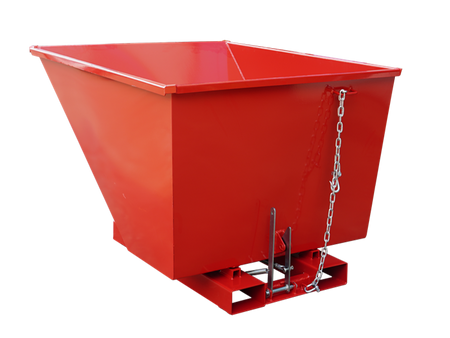

- Manual Override Option: A manual tipping device is also available, giving operators the flexibility to choose between automatic and manual release based on workflow.
- Heavy-Duty Construction: Built with 3mm thick steel and reinforced fork pockets to withstand impact, abrasion, and harsh outdoor environments.
- Massive Scalability: Available in 9 standard models ranging from 0.15m³ up to 3.00m³, making it easy to match the bin to your specific waste stream volume.
Specifications
| Type | SWL/kg | Dimension (L×W×H)/mm | Main Plate Thickness /mm | Pocket Size (a×b)/mm | Pocket Centres /mm | Volume /m³ | Weight /kg |
|---|---|---|---|---|---|---|---|
| F-TS15 | 1200 | 815×760×580 | 3 | 200×100 | 525 | 0.15 | 105 |
| F-TS30 | 1500 | 1235×840×750 | 3 | 200×100 | 525 | 0.30 | 150 |
| F-TS60 | 2000 | 1525×865×870 | 3 | 200×100 | 525 | 0.60 | 175 |
| F-TS90 | 2000 | 1525×1215×870 | 3 | 200×100 | 525 | 0.90 | 194 |
| F-TS110 | 2000 | 1700×1215×1045 | 3 | 200×100 | 525 | 1.10 | 228 |
| F-TS160 | 2000 | 2073×1066×1248 | 3 | 200×100 | 525 | 1.60 | 268 |
| F-TS200 | 2000 | 2073×1316×1248 | 3 | 200×100 | 525 | 2.00 | 274 |
| F-TS250 | 2000 | 2073×1566×1248 | 3 | 200×100 | 525 | 2.50 | 289 |
| F-TS300 | 2000 | 2073×1866×1248 | 3 | 200×100 | 525 | 3.00 | 317 |
Technical Drawing
⚠️ Safety & Compatibility Warnings
- Mounting Compatibility: Ensure your forklift forks match the specified pocket size (200×100mm) and pocket centres (525mm) prior to lifting.
- Dynamic Load Shift: Tipping heavy loads up to 2000kg causes a sudden shift in the center of gravity. Ensure your forklift has sufficient de-rated capacity and only dump on level ground.
- Clearance Zone: When using the automatic spring-release or manual override, ensure the drop zone is entirely clear of personnel and equipment before initiating the dump cycle.
- Installation & Retention: The hopper must be properly secured to the forklift carriage to prevent the unit from slipping off the forks during the aggressive self-dumping motion.
