LANDYINDUS Skid Steer Box Blade Attachment | Hydraulic Grader Blade 63" 72" 80" Land Leveling & Grading Quick Attach

LANDYINDUS Skid Steer Box Blade Attachment | Hydraulic Grader Blade 63" 72" 80" Land Leveling & Grading Quick Attach

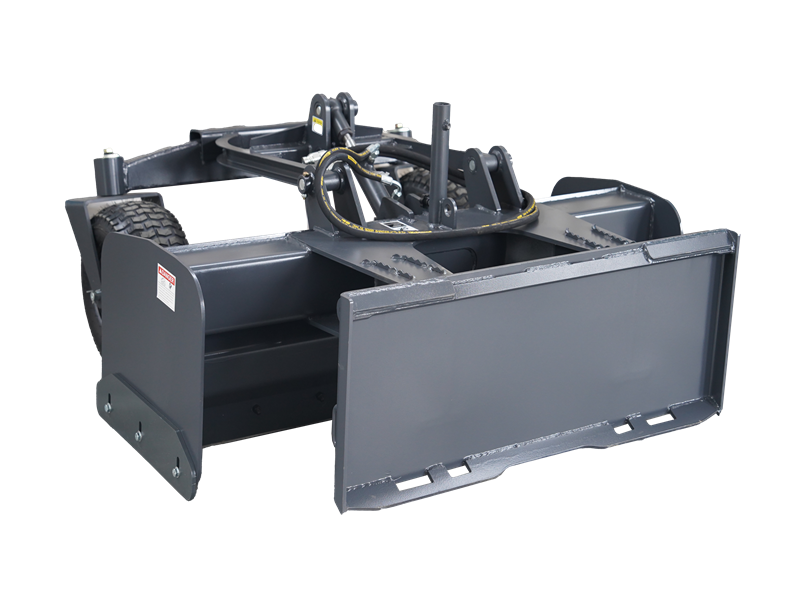

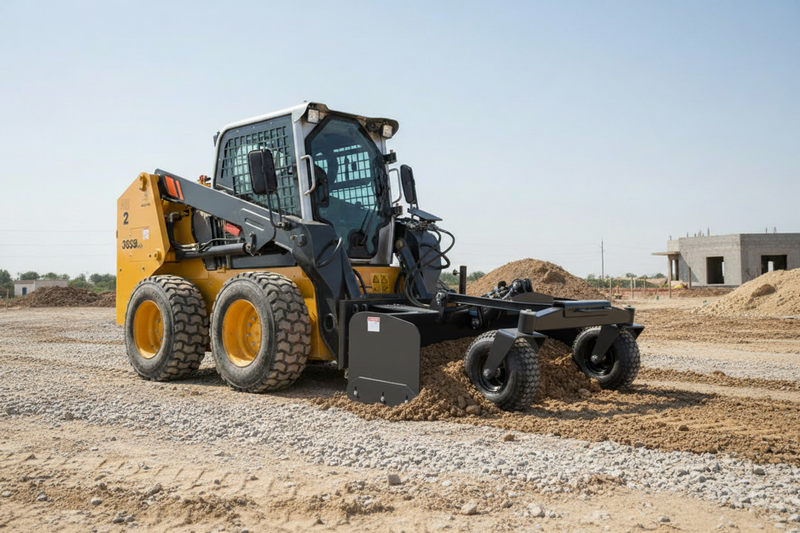

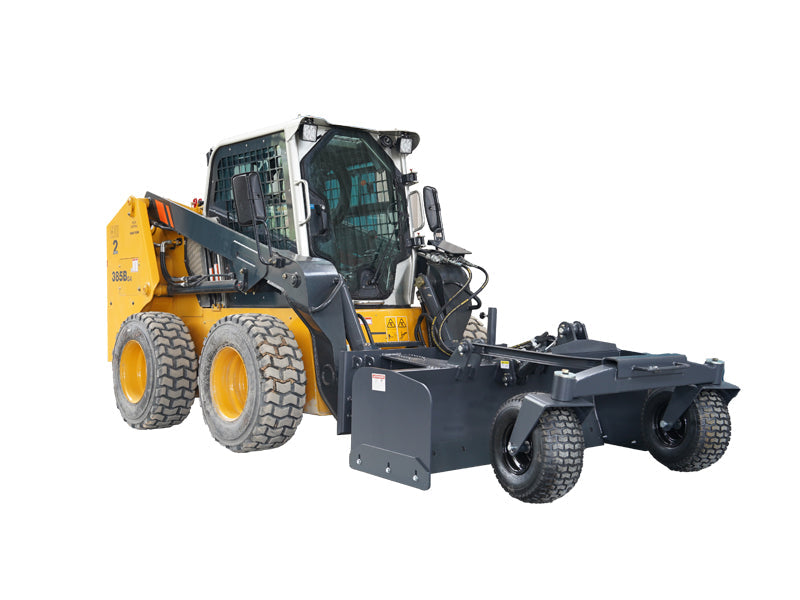

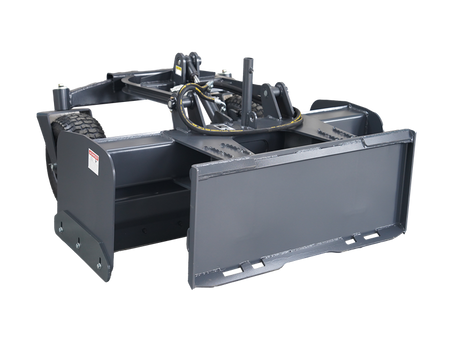

Grade. Level. Backfill. Reclaim. The LANDYINDUS Skid Steer Box Blade Grader Attachment is a heavy-duty hydraulic land leveling tool designed for grading driveways, leveling building sites, backfilling trenches, and reclaiming overgrown or uneven terrain. Available in 63", 72", and 80" widths, this skid steer grader blade gives operators the flexibility to match blade coverage to the scale of their project — from residential lot preparation to large-scale civil engineering and agricultural land leveling applications.

17° Hydraulic Swing Angle — Angle Left or Right Without Repositioning

The S-GD series features a hydraulic swing angle of up to 17 degrees, allowing the blade to angle left or right for efficient material displacement and contour grading without repositioning the machine. Angled grading is essential for pushing material to the side of a road, shaping drainage channels, and working along fence lines or structures where straight-ahead grading would push material into obstacles. Hydraulic angle control from the cab means faster, more precise grading on every pass.

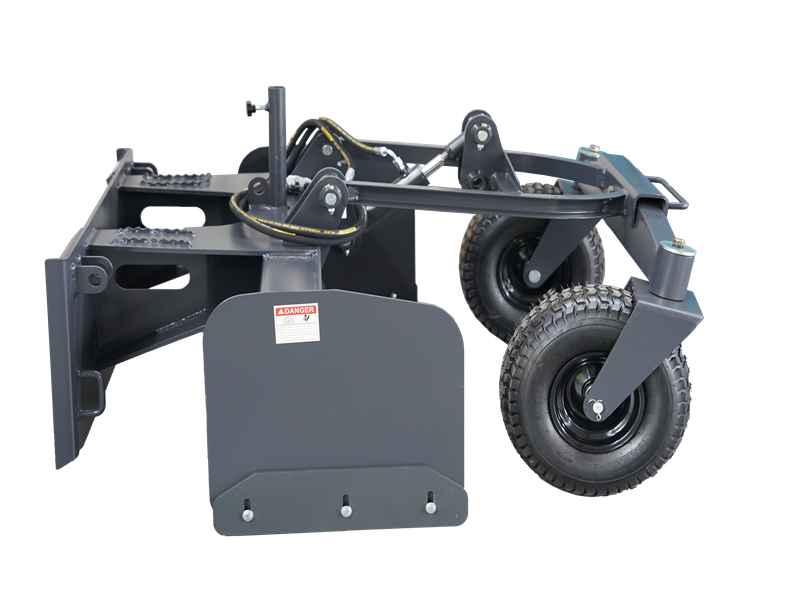

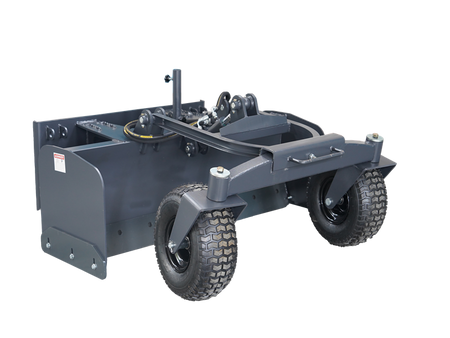

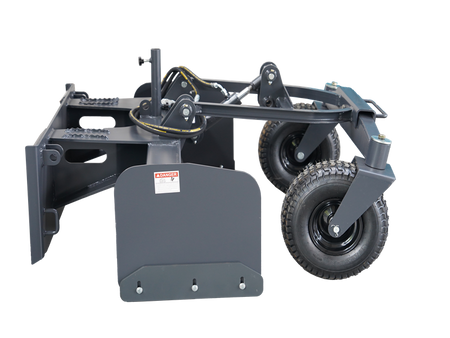

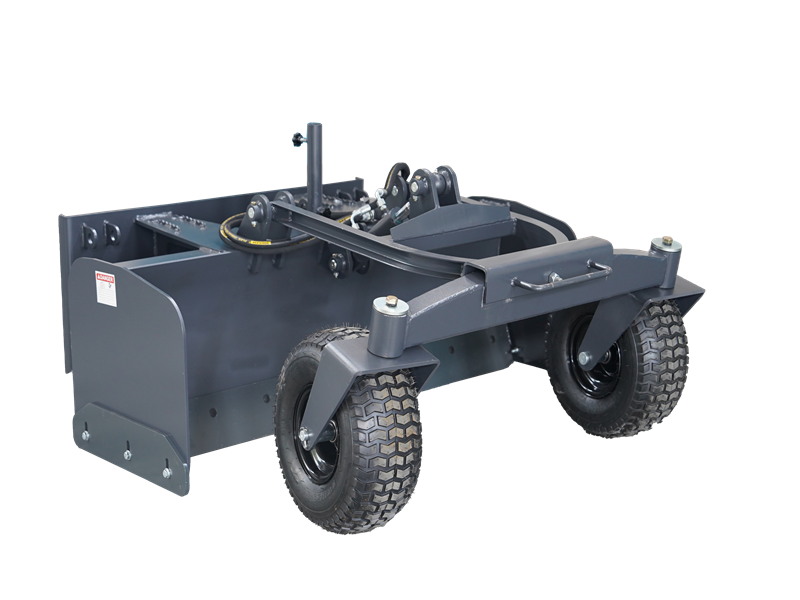

Hydraulic Gauge Wheels + Replaceable Skid Shoes — Consistent Depth & Extended Service Life

Hydraulic gauge wheels provide consistent blade depth control across uneven ground — maintaining a uniform cut depth even as terrain elevation changes beneath the machine. Replaceable skid shoes protect the cutting edge and extend the service life of the attachment, reducing long-term maintenance costs on high-use grading operations. Replace the skid shoes when worn — keep the blade working.

8mm Main Plate — Sustained Heavy-Duty Grading Without Flex

With an 8mm main plate thickness and a robust steel frame, this box blade is built to handle sustained heavy-duty grading work without flexing or wearing prematurely. The structural rigidity of the 8mm shell ensures the blade maintains its geometry and cutting angle through full seasons of commercial and agricultural grading work.

3 Width Options — 63", 72" & 80" for Every Project Scale

Operating at 16 MPa with 60 LPM hydraulic flow, the LANDYINDUS hydraulic grader blade integrates directly with your skid steer's existing hydraulic system and is compatible with most standard universal skid steer loaders and compact track loaders. Select the width that matches your machine and job site coverage requirements.

Key Features

• 17° hydraulic swing angle — angle blade left or right from the cab without repositioning
• Hydraulic gauge wheels for consistent blade depth control on uneven terrain
• Replaceable skid shoes to protect cutting edge and extend service life
• 8mm main plate for sustained heavy-duty grading without flex or premature wear
• Available in 63", 72", and 80" widths
• 16 MPa / 60 LPM — integrates with existing skid steer hydraulic system
• Universal quick attach — compatible with most skid steer loaders and compact track loaders
• Ideal for driveway grading, building site leveling, trench backfill & land reclamation

Technical Drawing:

Specifications
