LANDYINDUS Skid Steer Hydraulic Tire Grabber | Three-Arm | 1,800kg SWL | ±50° Rotation | 1,370–2,260mm | Agricultural Mining OTR | MP1140

LANDYINDUS S-TG4000-1370-2260 Skid Steer Hydraulic Tire Grabber | Three-Arm Extended Gripper | 1,800kg SWL | ±50° Hydraulic Rotation | 1,370–2,260mm Opening | Agricultural, Construction, Mining & OTR Tires | MP1140 Universal Quick Attach

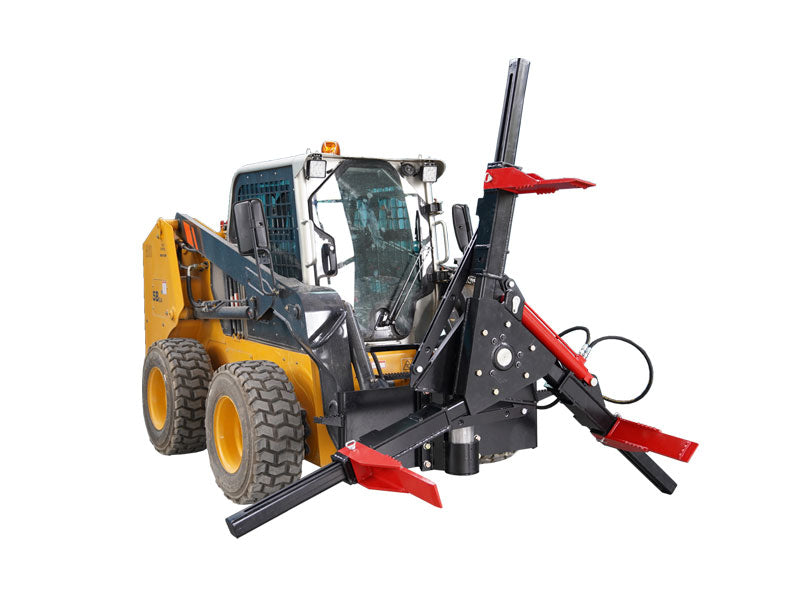

The LANDYINDUS S-TG4000 Skid Steer Hydraulic Tire Grabber is a purpose-built industrial tire handling tool that allows heavy equipment operators to safely mount, dismount, rotate, and store large tires without forks, straps, chains, or additional ground crew. Mounted to any skid steer or hydraulic-equipped loader, the attachment handles tires up to 1,800kg with an opening range of 1,370–2,260mm — covering the full diameter range of large agricultural, construction, mining, and OTR tires that are too heavy and awkward to handle safely by conventional means.

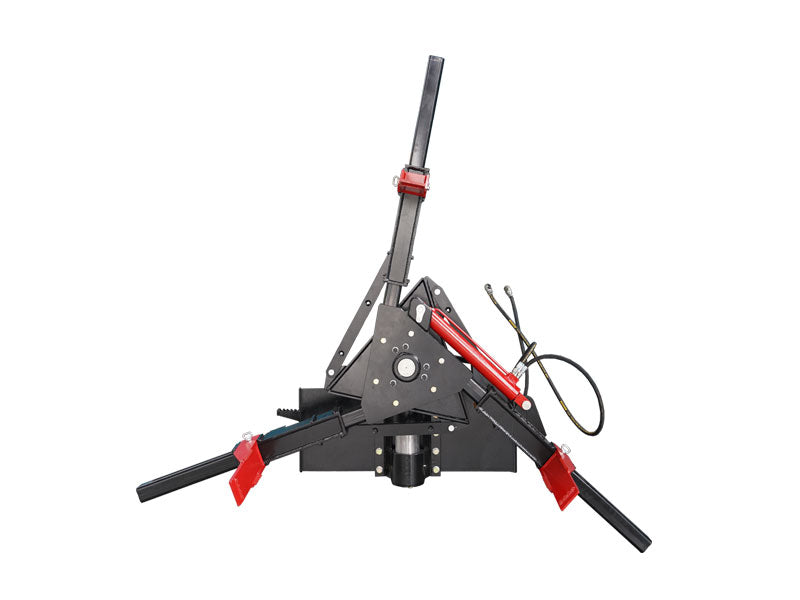

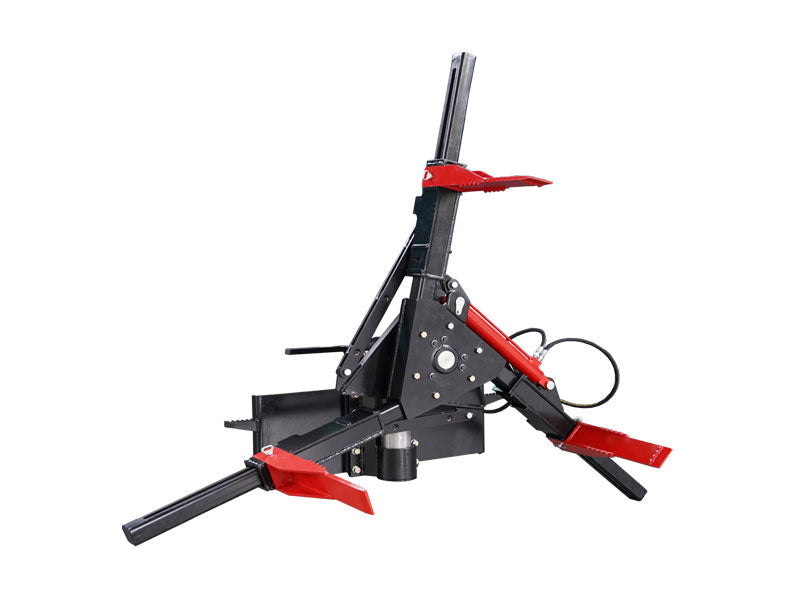

Three-Arm Extended Gripper — Even Clamping Force Around Full Tire Circumference, Stable Balanced Grip vs Two-Arm or Fork Methods

The extended-reach three-arm gripper design is the core safety and performance advantage of this hydraulic tire handler. Unlike two-arm or fork-based tire handling methods that can allow the tire to shift or tip during lifting, the three-arm configuration distributes clamping force evenly around the tire circumference — providing a secure, balanced grip that remains stable throughout the entire lift, swing, and placement cycle. This three-point stability is critical when handling 1,800kg OTR and mining tires where an unstable grip creates serious injury and equipment damage risk.

±50° Hydraulic Rotation — Horizontal to Vertical from the Cab, Precise Hub Alignment & Controlled Flat Stacking

The ±50-degree hydraulic rotation allows the operator to swing the tire from horizontal to vertical and back from the cab, enabling precise positioning for wheel hub alignment during mounting and controlled flat stacking during storage — both operations that previously required multiple workers and significant physical effort to perform safely. The cab-controlled rotation eliminates the need for ground crew to manually tip and position heavy tires during the mounting cycle.

Tool-Free Operation — No Chains, No Straps, No Forks, No Ground Crew — Eliminates Manual Tire Handling Injury Risk

The tool-free operation eliminates the injury risks associated with manual tire handling methods — no chains to attach, no straps to thread, no forks to position under an unstable tire. This makes the attachment particularly valuable in high-volume tire change environments such as mining operations, large agricultural fleets, and construction equipment maintenance facilities where tire changes are frequent and worker safety is a priority. Grabs, swings, rotates, and stacks tires for neat, space-saving storage — streamlining the entire tire change workflow from a single operator in the cab.

1,370–2,260mm Opening Range | 1,800kg SWL — Full Diameter Range of Agricultural, Construction, Mining & OTR Tires

The 1,370–2,260mm opening range covers the full diameter range of large tires encountered in agricultural, construction, mining, and OTR applications — from large tractor rear tires through to massive mining haul truck tires. The 1,800kg safe working load handles the heaviest tires in these categories safely within the attachment’s rated capacity.

16 MPa | 60 LPM Standard Flow | Universal MP1140 — Standard Hydraulics, Fast Tool-Free Installation

Operating at 16 MPa with a hydraulic flow requirement of 60 LPM, the S-TG4000 integrates with most standard skid steer auxiliary hydraulic systems — no high-flow upgrade required. At 582kg with overall dimensions of 2,409 × 1,101 × 2,297mm, the attachment mounts via universal MP1140 quick-attach plate for fast, tool-free installation.

Key Features

• Three-arm extended gripper — even clamping force around full circumference, stable vs two-arm or fork methods
• ±50° hydraulic rotation — horizontal to vertical from cab, hub alignment & flat stacking
• Tool-free operation — no chains, straps, or forks, eliminates manual handling injury risk
• 1,800kg SWL | 1,370–2,260mm opening — agricultural, construction, mining & OTR tires
• Single-operator cab control — no ground crew required for tire mounting or storage
• High-volume tire change environments — mining, agricultural fleets & equipment maintenance
• Neat space-saving stacking — controlled flat stack placement from the cab
• 16 MPa | 60 LPM — standard skid steer auxiliary hydraulics, no high-flow required
• 2,409×1,101×2,297mm | 582kg
• Universal MP1140 quick attach — fast tool-free installation on any skid steer

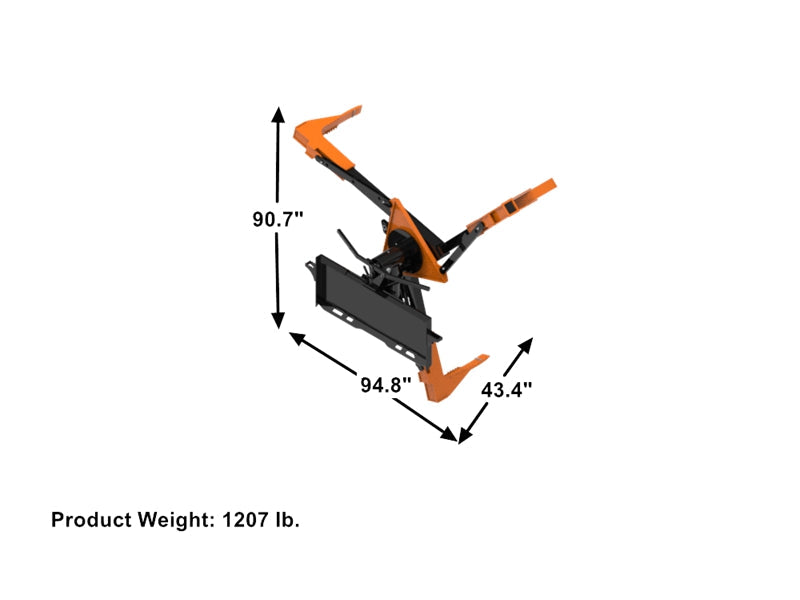

Technical Drawing:

Specifications
