LANDYINDUS Skid Steer Lifting Jib Attachment | 1,500kg SWL | Heavy Duty Crane Arm | 686mm Reach | MP1140

LANDYINDUS S-CJ1673-MP1140 Skid Steer Lifting Jib Attachment | 1,500kg SWL | Heavy Duty Crane Arm | 686mm Reach | MP1140 Universal Quick Attach

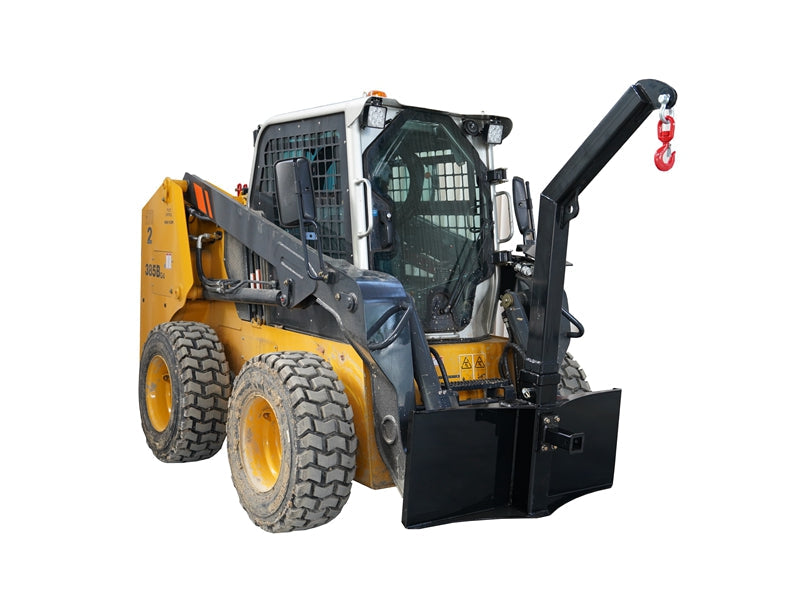

The LANDYINDUS S-CJ1673 Skid Steer Lifting Jib Attachment is a heavy-duty crane arm solution engineered for operators who need reliable, high-capacity lifting performance on demanding job sites. Designed to mount directly onto standard skid steer loaders, this jib crane attachment eliminates the need for separate lifting equipment — saving both time and operational costs on construction sites, agricultural operations, and industrial material handling applications.

1,500kg SWL | 686mm Reach — Extended Reach & Superior Lifting Capacity vs Standard Mini Loader Jibs

With a safe working load (SWL) of 1,500kg and a depth of 686mm, this skid steer jib attachment delivers extended reach and superior lifting capacity compared to standard mini loader jibs. The 686mm depth provides the horizontal reach needed to lift and place loads over obstacles, trailer sides, and equipment without repositioning the host machine — improving cycle efficiency on pallets, pipes, concrete blocks, and other heavy material handling tasks.

81kg Frame | 1,140 × 686 × 1,773mm — Straightforward Attach & Detach, No Specialised Tools

The compact overall dimensions of 1,140mm width × 1,773mm height, combined with a lightweight 81kg frame, make it straightforward to attach and detach without specialised tools — keeping your crew productive and downtime minimal. Despite its 1,500kg SWL rating, the 81kg self-weight maximises the host machine’s effective lifting capacity by minimising the attachment’s own contribution to the front axle load.

High-Strength Structural Steel — Daily Heavy-Duty Use Across Construction, Agriculture & Industrial Applications

Built from high-strength structural steel, the LANDYINDUS skid steer crane jib arm is designed to handle the rigours of daily heavy-duty use across a wide range of industries. Whether lifting pallets, pipes, concrete blocks, or other heavy materials, this attachment gives your existing skid steer loader the versatility of a dedicated crane at a fraction of the cost — making it one of the most practical and cost-effective jib crane arm attachments available for professional operators.

Key Features

• 1,500kg SWL — 50% higher capacity than the S-LJ1670 mini loader jib
• 686mm reach — extended horizontal reach for load placement over obstacles
• 81kg frame — lightweight, no specialised tools for attach & detach
• 1,140×686×1,773mm — compact footprint, 1,773mm working height
• High-strength structural steel — daily heavy-duty use across multiple industries
• Eliminates need for separate lifting equipment on mixed-task job sites
• Universal MP1140 quick attach — most standard skid steer loaders

Technical Drawing:

Specifications
