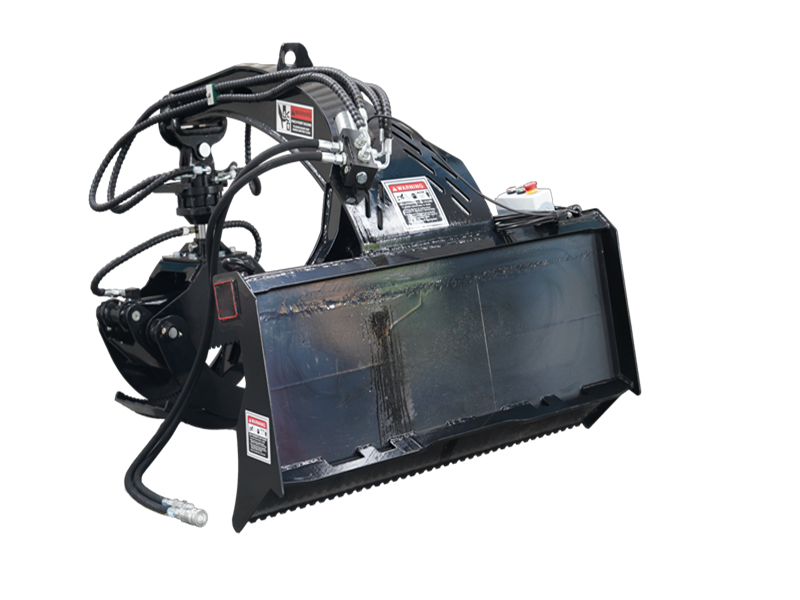

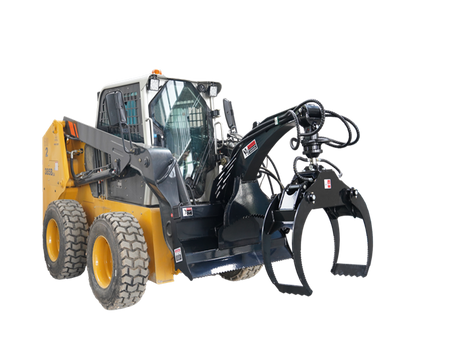

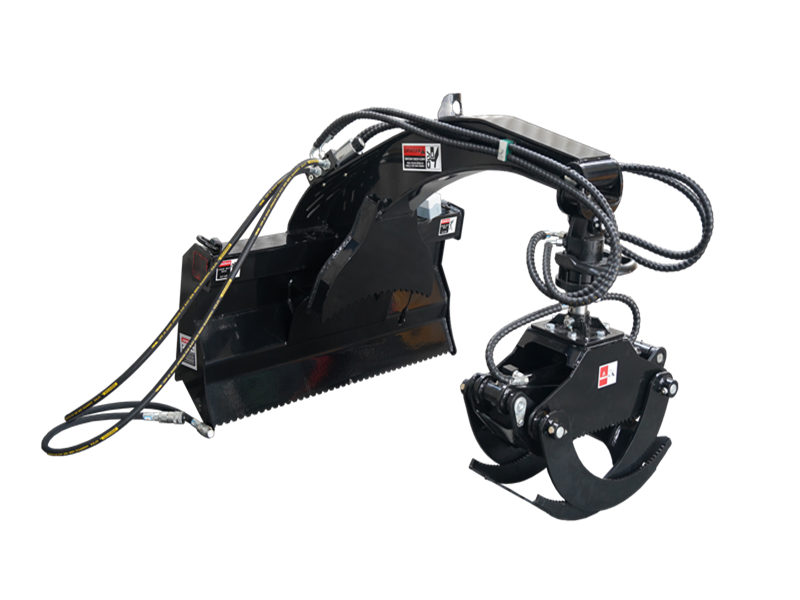

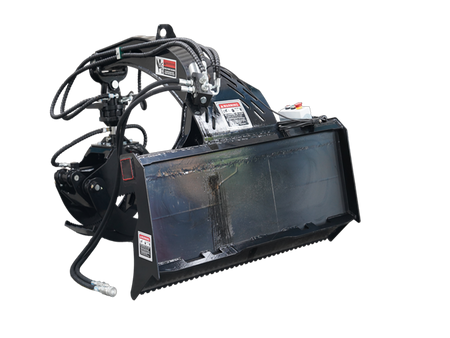

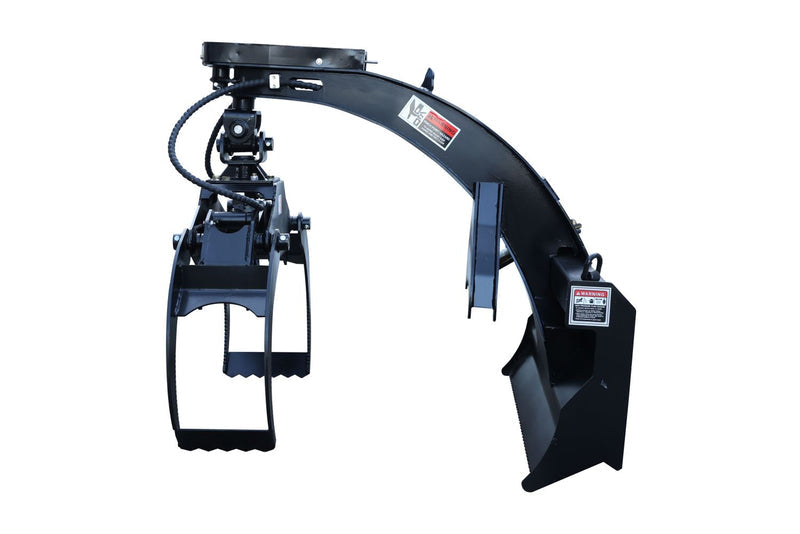

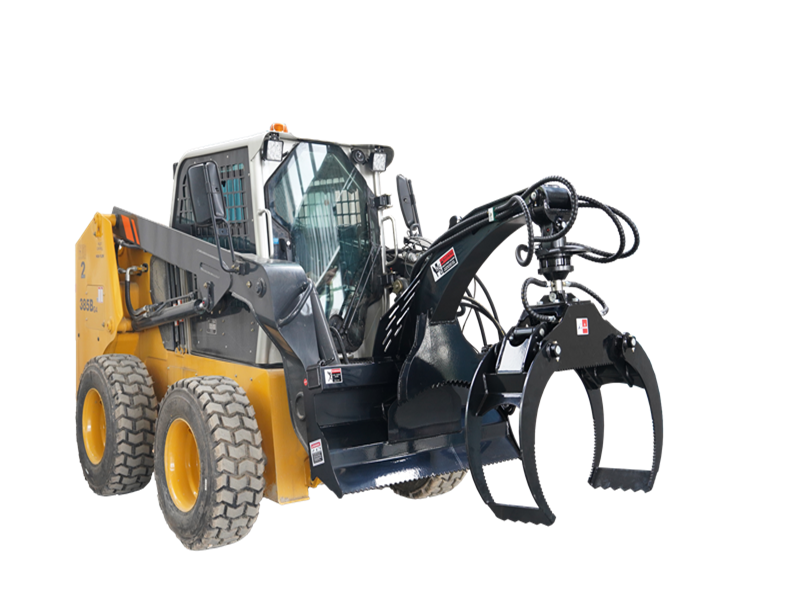

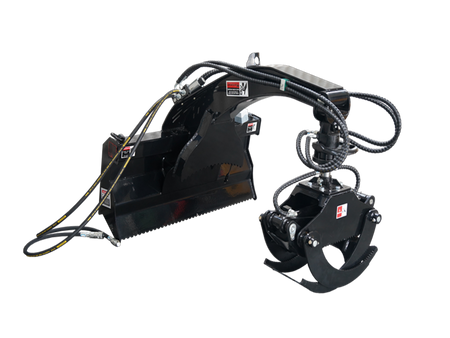

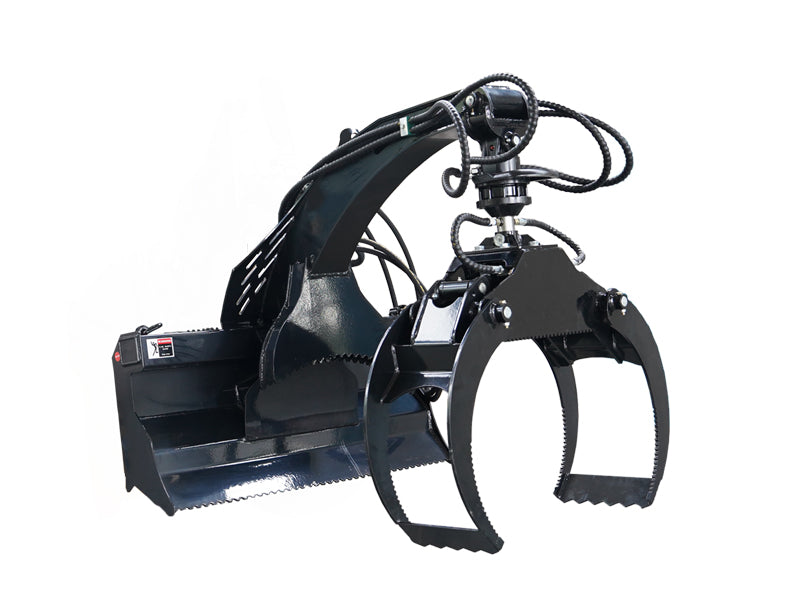

LANDYINDUS Skid Steer Log Grapple | 360° Hydraulic Rotation | 1,360kg SWL | Heavy Duty | MP1140 Universal Quick Attach

LANDYINDUS S-LG1360 Skid Steer Log Grapple | 360° Hydraulic Rotation | 1,360kg SWL | Heavy Duty | MP1140 Universal Quick Attach

The LANDYINDUS S-LG1360 Skid Steer Log Grapple is a heavy-duty hydraulic attachment designed for fast, efficient, and precise log handling in forestry, timber processing, landscaping, and firewood operations. Mounted directly to the skid steer universal quick attach plate, this log grapple gives operators complete control from inside the cab to pick up, reposition, and move logs of varying sizes with a level of agility that manual handling or conventional bucket attachments simply cannot match.

360° Hydraulic Rotation — Rotate the Full Grapple Head from the Cab, No Machine Repositioning

The standout feature of this skid steer log grapple is its hydraulic 360-degree rotation capability, which allows the operator to rotate the entire grapple head from within the cab without repositioning the machine. This full rotation eliminates the need for repeated machine manoeuvring when aligning logs for loading or transport — dramatically reducing cycle time and operator fatigue on high-volume timber handling jobs. The rotation system operates smoothly under load, giving operators precise angular control even when handling heavy or awkwardly shaped logs.

Serrated Cradle Design — Steadies Logs In-Line, Prevents Rolling & Shifting During Grip & Lift

The serrated cradle design steadies logs in-line during gripping, preventing rolling or shifting as the grapple closes and lifts. This keeps logs aligned for straight-on loading onto trailers or processing equipment — reducing the number of repositioning passes needed per cycle and improving throughput on high-volume timber loading and firewood sorting operations.

80–1,220mm Opening Range | 1,360kg SWL — Small Firewood to Large-Diameter Timber in One Attachment

The grapple opens from 80mm to a full 1,220mm, accommodating everything from small-diameter firewood to large-diameter timber logs in a single attachment without adjustment or tool changes. With a safe working load of 1,360kg, the S-LG1360 delivers the clamping force needed for serious timber handling across forest clearing, truck loading, and processing yard operations.

20 MPa | 60 LPM | 271kg — Robust Build, Compatible with Standard Skid Steer Hydraulic Circuits

The hydraulic system operates at up to 20 MPa with a recommended flow of 60 LPM, delivering the clamping force needed to handle loads up to the 1,360kg SWL rating. At 271kg with overall dimensions of 1,220×1,348×1,112mm, the attachment offers a robust and durable build without adding excessive weight to the front of the machine. Compatible with most skid steer loaders and compact track loaders via universal MP1140 quick attach.

Key Features

• 360° hydraulic rotation — full grapple head rotation from the cab, no machine repositioning
• Serrated cradle design — steadies logs in-line, prevents rolling & shifting during lift
• 80–1,220mm opening range — small firewood to large-diameter timber, no tool changes
• 1,360kg safe working load — serious timber handling across forestry & processing operations
• Smooth rotation under load — precise angular control on heavy & awkward logs
• 20 MPa | 60 LPM — standard skid steer hydraulic circuits, no modifications
• 1,220×1,348×1,112mm | 271kg — robust build, minimal added front weight
• Universal MP1140 quick attach — most skid steer loaders & compact track loaders

Technical Drawing:

Specifications
