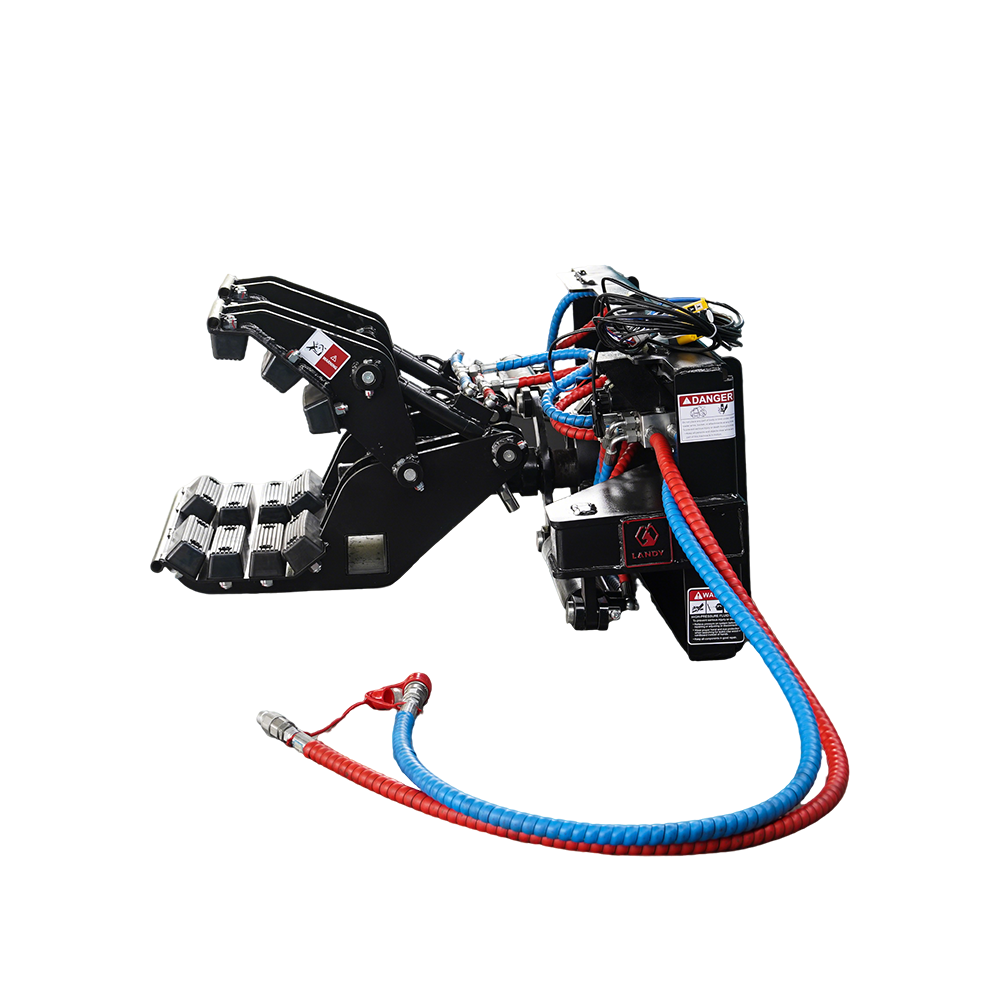

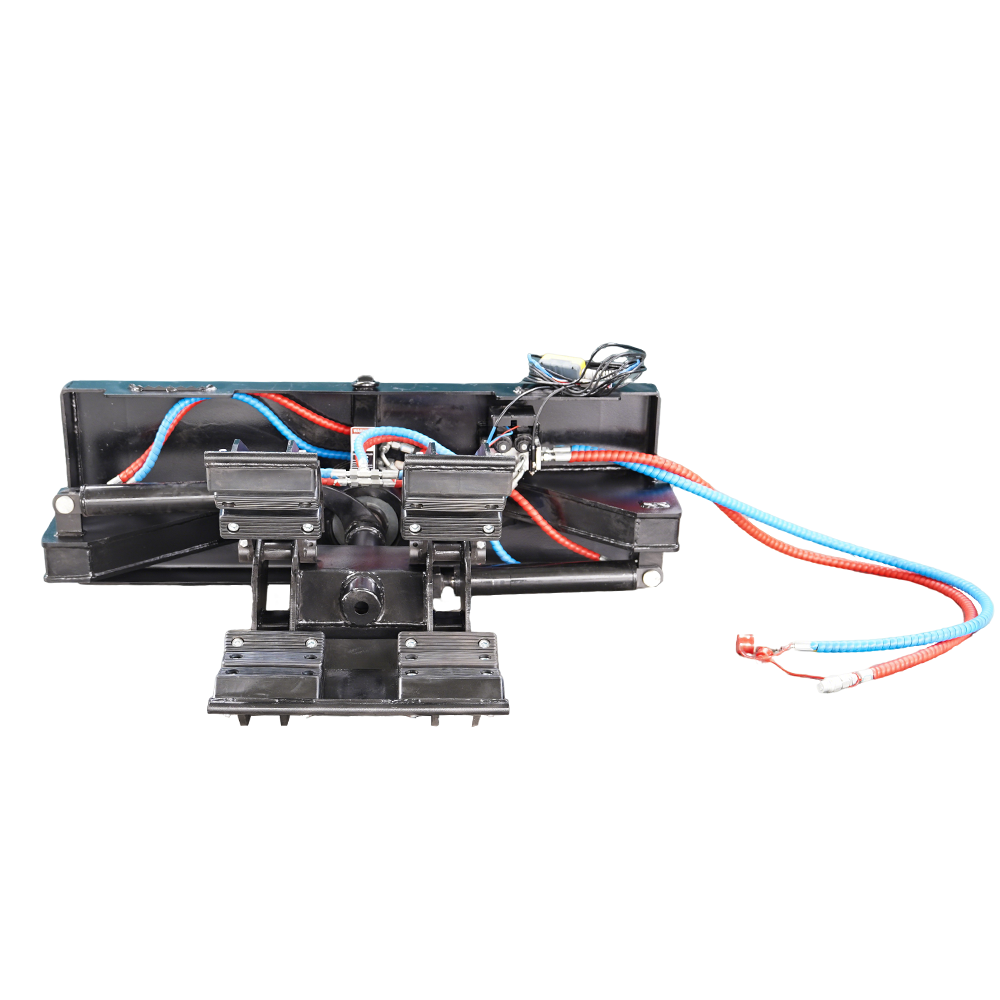

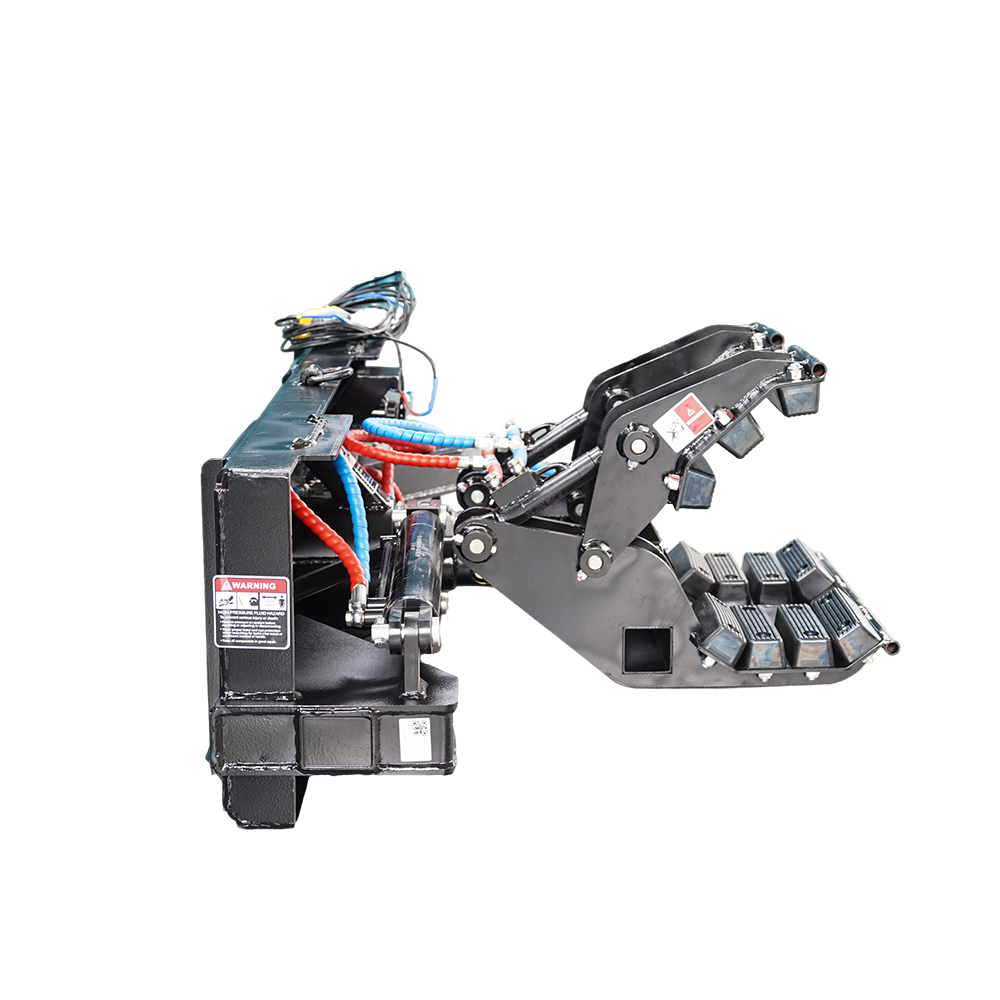

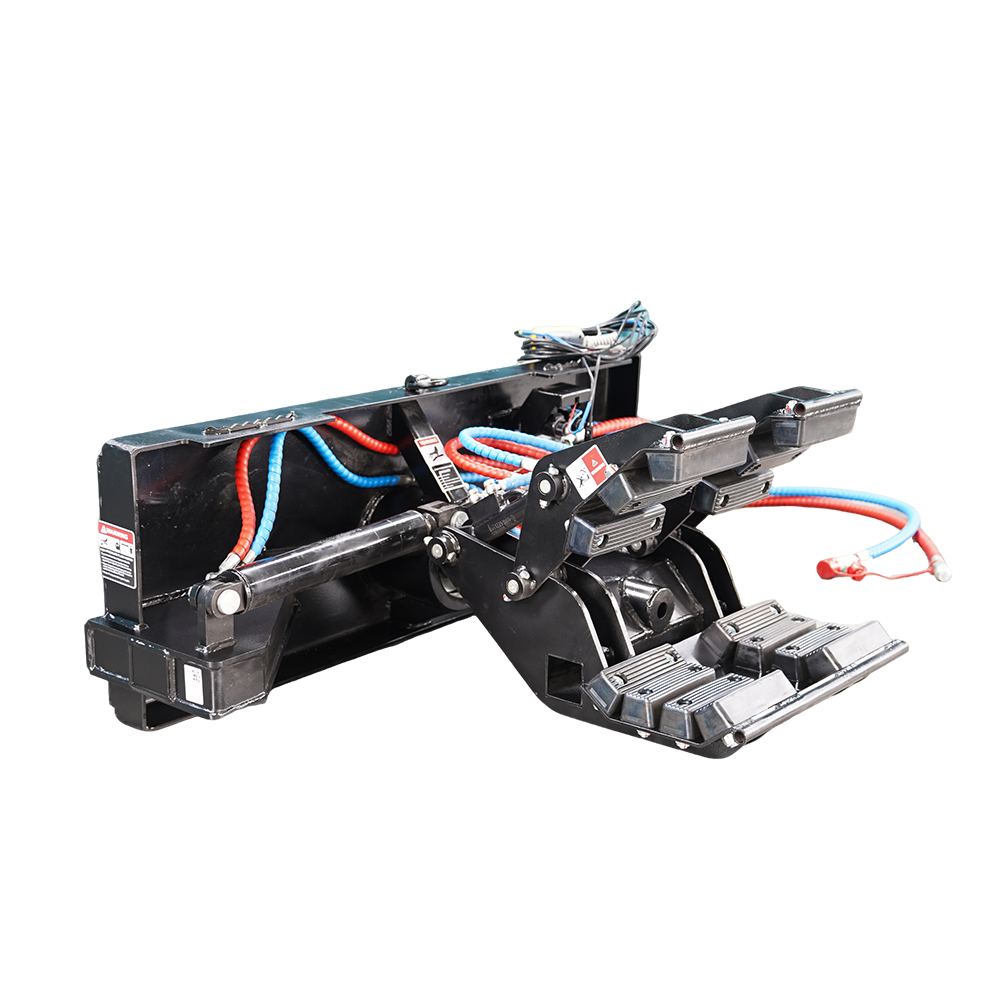

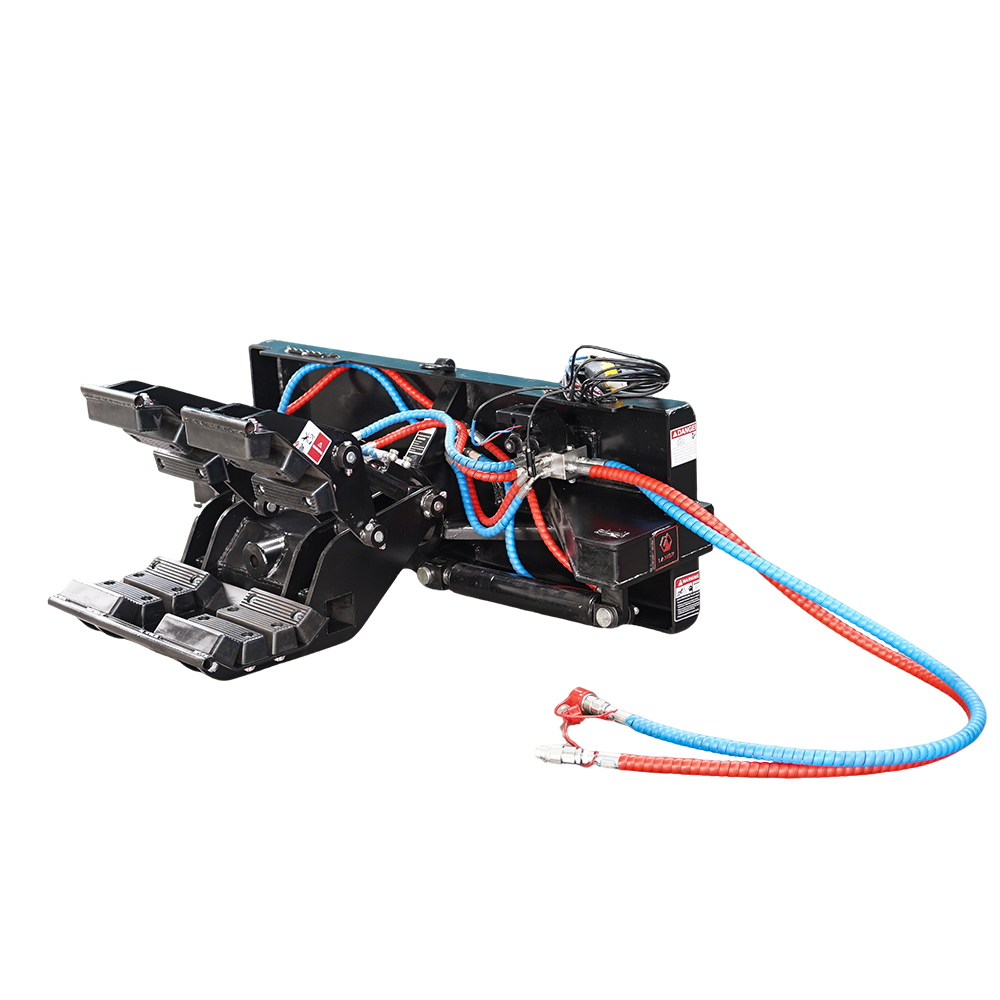

LANDYINDUS Skid Steer Pole Setter Attachment | Double Cylinder Rotating | 540kg | 75–355mm Jaw | Light Pole & Fence Post | MP1140

LANDYINDUS S-PS540(75-355)-MP1140 Skid Steer Pole Setter Attachment | Double Cylinder Rotating | 540kg SWL | 75–355mm Jaw Opening | MP1140 Universal Quick Attach

The LANDYINDUS S-PS540 Skid Steer Pole Setter is purpose-built for operators who need to install or remove light poles, fence posts, solar panel supports, and utility poles quickly and safely — all from the control cab of the skid steer loader. Capable of handling poles up to 32 feet long and weighing up to 540kg (1,190 lbs), this hydraulic pole setter attachment eliminates the need for additional ground crew and dramatically reduces job-site setup time.

Double Cylinder Sequential Jaws — Pole Remains Secure Throughout Entire Lift & Placement Cycle

The double cylinder rotating pole setter features two independent jaws that open and close in sequence, ensuring the pole remains secure throughout the entire lift and placement cycle. Each jaw is mounted with rubber lining to protect the pole surface from damage during clamping. The 75–355mm opening range accommodates a wide variety of pole diameters, and optional inserts allow the jaws to close down to zero for smaller stock — making this attachment compatible with the full range of light poles, fence posts, solar supports, and utility poles encountered on typical installation job sites.

Rotating Base or Fixed Non-Rotating Base — Select the Configuration for Your Job-Site Requirements

Available with either a rotating base or a fixed non-rotating base to suit different job-site requirements. The rotating base allows the operator to orient the pole to the precise installation angle from the cab without repositioning the machine — a critical advantage on confined sites, sloped terrain, or when setting poles at non-perpendicular angles. The fixed base provides a simpler, lighter configuration for straightforward vertical pole installation work.

Ready to Work Out of the Box — Wiring Harness, Spring Hose Mount & Flush-Faced Couplers Included

The attachment comes complete with a wiring harness, spring hose mount, and flush-faced couplers — ready to work straight out of the box with no additional hardware purchases required. Operating at 16 MPa with a hydraulic flow requirement of 60 LPM, the S-PS540 integrates seamlessly with most standard skid steer hydraulic systems. Mounts to any skid steer loader via universal MP1140 quick-attach plate for fast, tool-free installation. Weighs 326 kg with overall dimensions of 1,500 × 1,087 × 501mm.

Use Cases

• Light pole & street lamp installation & removal
• Fence post setting across agricultural & construction sites
• Solar panel support pole installation
• Utility pole handling & placement
• Any pole installation requiring precise angular placement or confined-site access

Key Features

• Double cylinder sequential jaws — pole secured throughout full lift & placement cycle
• Rubber-lined jaws — protects pole surface from clamping damage
• 75–355mm jaw opening — wide pole diameter range; optional inserts close to zero
• 540kg (1,190 lbs) SWL — poles up to 32 feet long
• Rotating base or fixed non-rotating base — select for job-site requirements
• Rotating base — cab-controlled pole angle adjustment, no machine repositioning
• Wiring harness, spring hose mount & flush-faced couplers included — ready to work out of the box
• 16 MPa | 60 LPM — standard skid steer auxiliary hydraulics
• 1,500×1,087×501mm | 326kg
• Universal MP1140 quick attach — fast tool-free installation on any skid steer

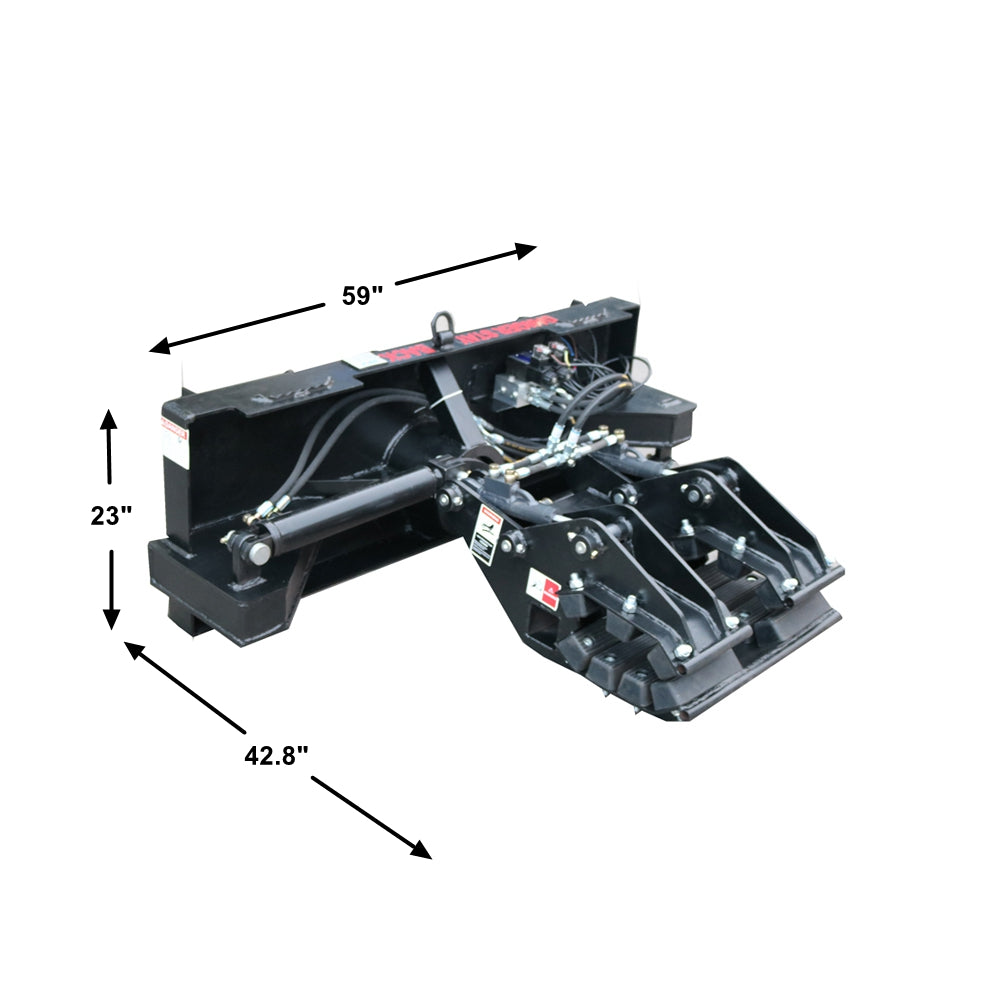

Technical Drawing:

Specifications
