LANDYINDUS Skid Steer Rock Grapple Bucket Attachment | 72 84 Inch | Twin Cylinder Dual Independent Arms | MP1140

LANDYINDUS Skid Steer Rock Grapple Bucket Attachment | 72 / 84 Inch | Twin Cylinder Dual Independent Arms | MP1140 Universal Quick Attach

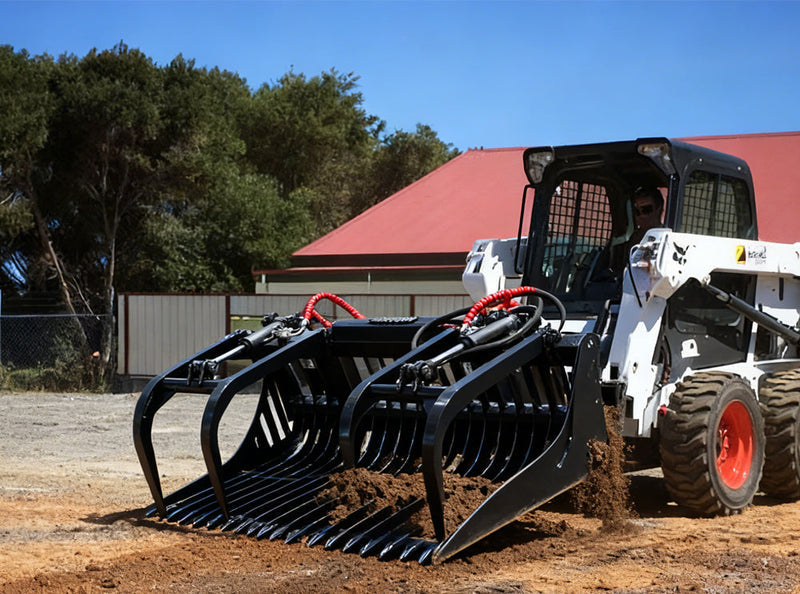

The LANDYINDUS Skid Steer Rock Grapple Bucket is purpose-built for operators who need to pick up rocks, clear brush, carry logs and firewood, dress yards, and clean up job sites with speed and control. By combining the sifting capability of a traditional rock bucket with the gripping power of a full grapple, this attachment handles a wide range of materials that neither a standard bucket nor a simple grapple could manage alone — the go-to attachment for landscapers, contractors, and farm operators dealing with mixed debris and uneven terrain daily.

Twin Hydraulic Cylinders | Dual Independent Grapple Arms — Adaptive Grip on Boulders, Stumps & Brush Piles

The structural design centres on dual independent grapple arms driven by twin hydraulic cylinders, allowing each arm to move independently for a more secure and adaptive grip on irregular objects like boulders, stumps, and brush piles. The twin cylinder configuration ensures balanced pressure distribution across both grapple arms — giving operators precise control even when handling asymmetric loads that would cause single-cylinder designs to lose grip or tilt.

5mm Tines | 960mm Opening Range — Sifts Fine Material, Retains Rocks & Debris

The 5mm tines are spaced to sift out fine material while retaining larger rocks and debris — reducing the need for manual sorting on site and improving cleanup efficiency across rocky fields, construction sites, and post-land-clearing jobs. With a full opening range of 960mm, the grapple accommodates large, bulky loads across both the 72" and 84" models.

16 MPa | 60 LPM | 237–255kg — Standard Skid Steer Hydraulic Circuits, No Special Modifications

The hydraulic system operates at up to 16 MPa with a recommended flow of 60 LPM, integrating with standard skid steer hydraulic circuits without special modifications. At 237–255kg depending on model, this light-duty rock grapple bucket offers a practical balance of durability and manoeuvrability for light to medium duty applications. Compatible with most skid steer loaders and compact track loaders via universal MP1140 quick attach.

Key Features

• Twin hydraulic cylinders | dual independent grapple arms — adaptive grip on irregular loads
• Balanced pressure distribution — precise control on asymmetric loads
• 5mm tines — sifts fine material, retains rocks & larger debris
• 960mm full opening range — accommodates large, bulky loads
• Combines rock bucket sifting + full grapple gripping in one attachment
• 16 MPa | 60 LPM — standard skid steer hydraulic circuits, no modifications
• 237–255kg — light to medium duty, practical durability & manoeuvrability balance
• Universal MP1140 quick attach — most skid steer loaders & compact track loaders

Technical Drawing:

Specifications
