LANDYINDUS Skid Steer Snow Wing Bucket | 91" Hydraulic Retractable Wings Large Area Snow Removal & Truck Dumping Quick Attach

LANDYINDUS Skid Steer Snow Wing Bucket | 91" Hydraulic Retractable Wings Large Area Snow Removal & Truck Dumping Quick Attach

Expand. Clear. Dump. Repeat. The LANDYINDUS Skid Steer Snow Wing Bucket is a heavy-duty hydraulic wing snow bucket engineered for large-area snow collection and high-volume snow removal on commercial streets, parking lots, municipal roads, and open job sites. Unlike standard fixed-width snow buckets, the hydraulic retractable side wings expand the working width from 91" up to 121" — dramatically increasing coverage per pass and reducing total clearing time on large sites.

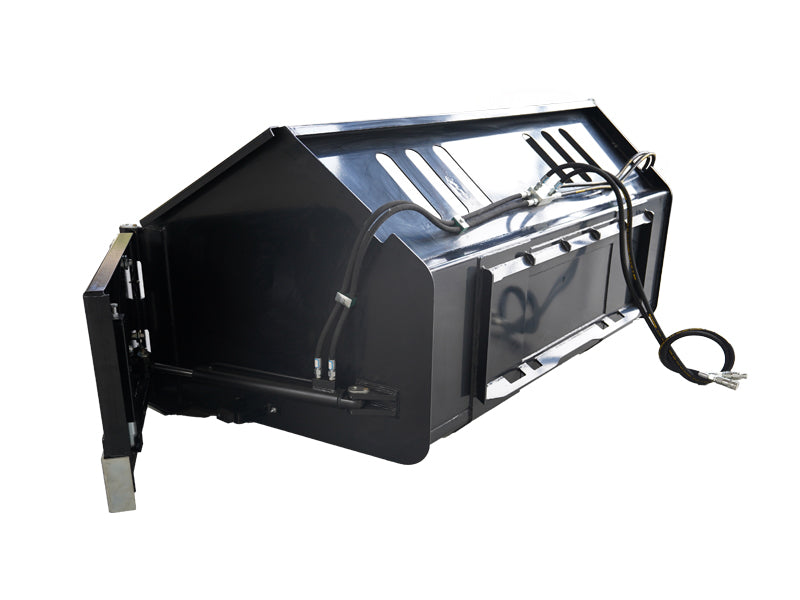

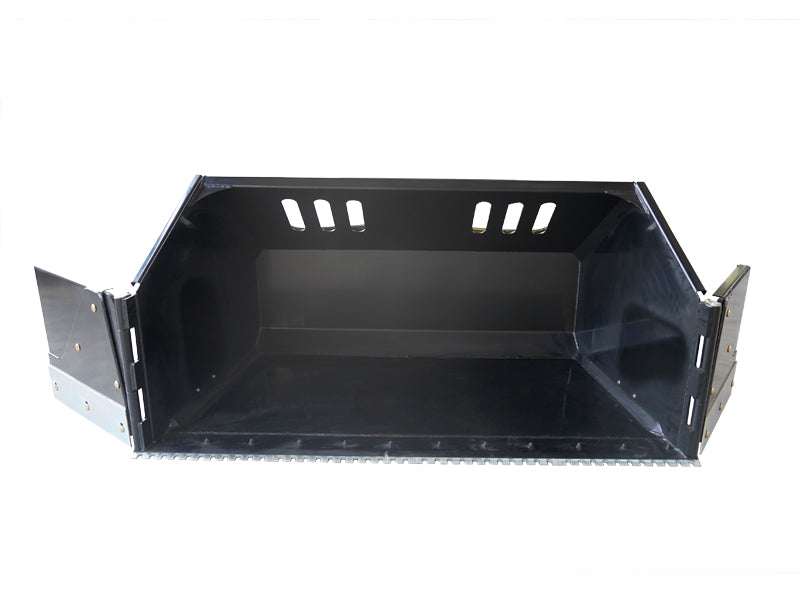

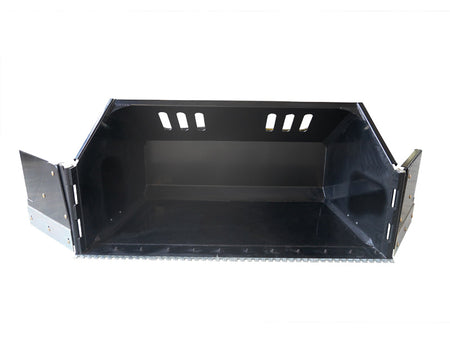

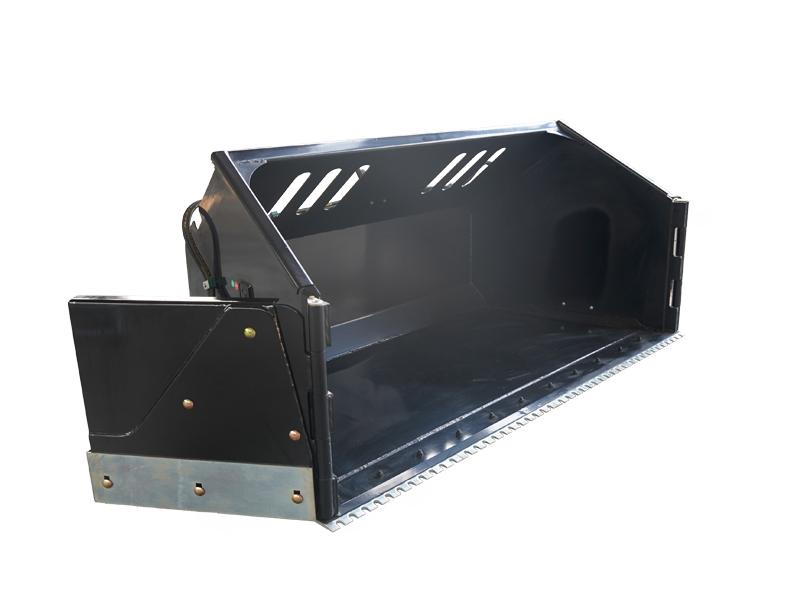

Hydraulic Retractable Side Wings — 91" to 121" Adjustable Working Width

The independently operated hydraulic side wings are the defining feature of this snow wing bucket. Each wing can be adjusted individually, giving operators precise control when working in tight or irregular spaces:

• Removing snow between parked cars in a parking lot
• Clearing around obstacles and fixed structures
• Navigating narrow access roads and confined areas

When retracted, the bucket returns to its standard 91" (2300mm) width for easy transport and maneuvering. When fully extended, the opening range reaches 2480–3075mm for maximum coverage on open sites.

Direct Truck Loading — No Repositioning, No Additional Handling

Designed for direct truck loading, this snow wing bucket allows operators to dump collected snow straight into the back of a truck without additional handling or repositioning. This makes it the most efficient solution for large-scale snow removal operations where speed and continuous workflow are critical — load, dump, and return to clearing without breaking the cycle.

2.20m³ Capacity + 6mm Plate — Built for Extreme Cold-Weather Volume

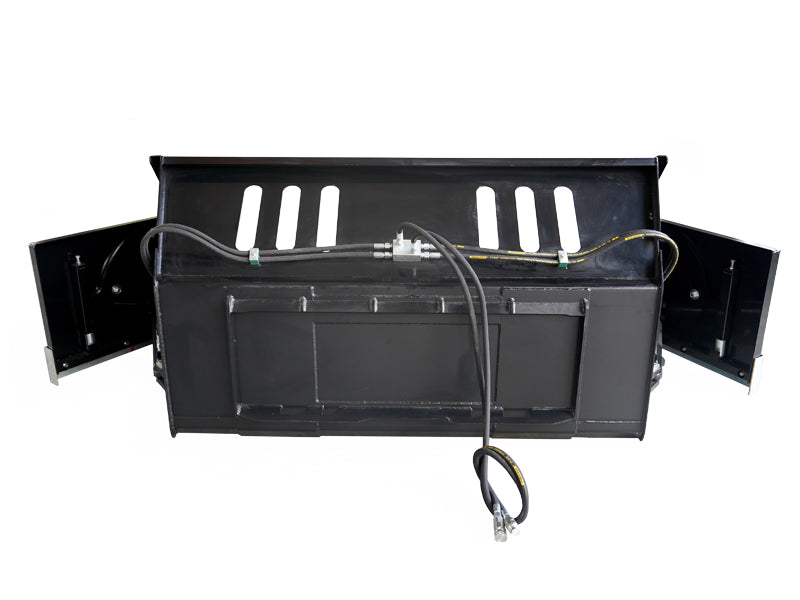

With a 2.20m³ volume capacity and a 6mm main plate heavy-duty steel frame, this snow wing bucket holds up to repeated use in extreme cold weather and high-volume snow conditions. The hydraulic system is rated at 16 MPa operating pressure and 60 LPM flow for reliable, consistent wing actuation in sub-zero temperatures.

Compatible with Major Skid Steer Brands

Fits most major skid steer brands including Bobcat, Case, Caterpillar, John Deere, and Kubota via a universal quick-attach mounting system — no additional adapters required. The professional-grade solution for municipal contractors, commercial property managers, and site operators who need maximum coverage, hydraulic precision, and heavy-duty durability in a single snow removal attachment.

Key Features

• Hydraulic retractable side wings: expands from 91" to 121" working width
• Independently operated wings for precise control in tight and irregular spaces
• Direct truck loading — dump snow into truck bed without repositioning
• 2.20m³ volume capacity for high-volume snow collection per pass
• 6mm main plate heavy-duty steel frame for extreme cold-weather durability
• 16 MPa / 60 LPM hydraulic system for reliable wing actuation
• Compatible with Bobcat, Case, Caterpillar, John Deere, Kubota & universal quick attach systems

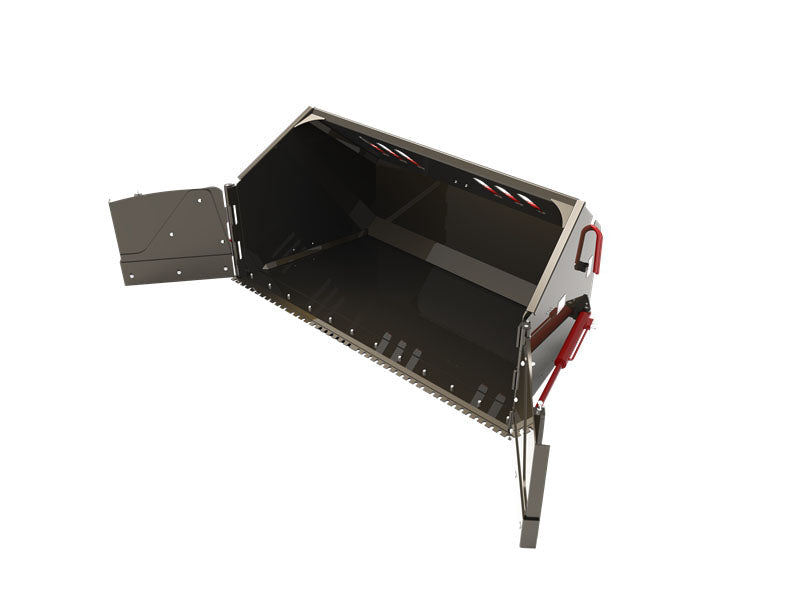

Technical Drawing:

Specifications
