LANDYINDUS Skid Steer Stick Rake | Side Wings | 71" or 87" | Heavy Duty Land Clearing | Open Tine Soil Separation | MP1140

LANDYINDUS S-SR Series Skid Steer Stick Rake | Integrated Side Wings | 71" or 87" | Heavy Duty Land Clearing | Open Tine Soil Separation | MP1140 Universal Quick Attach

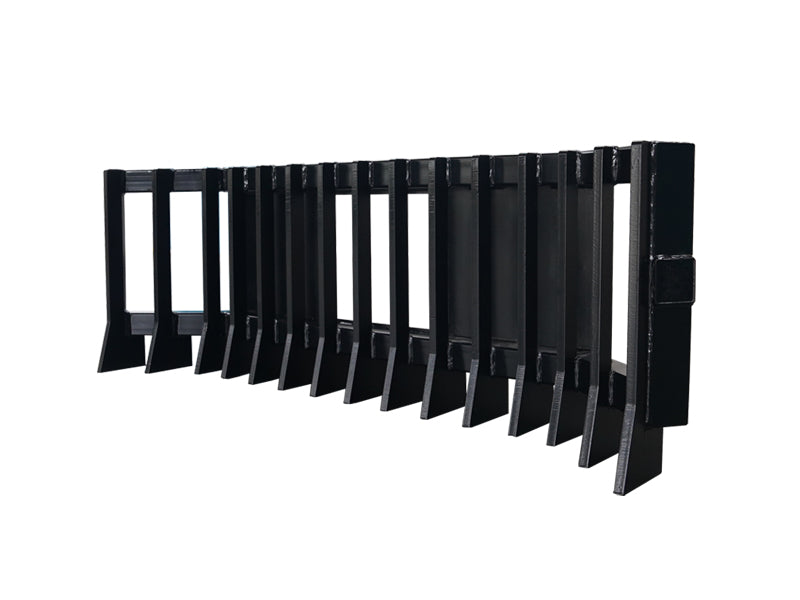

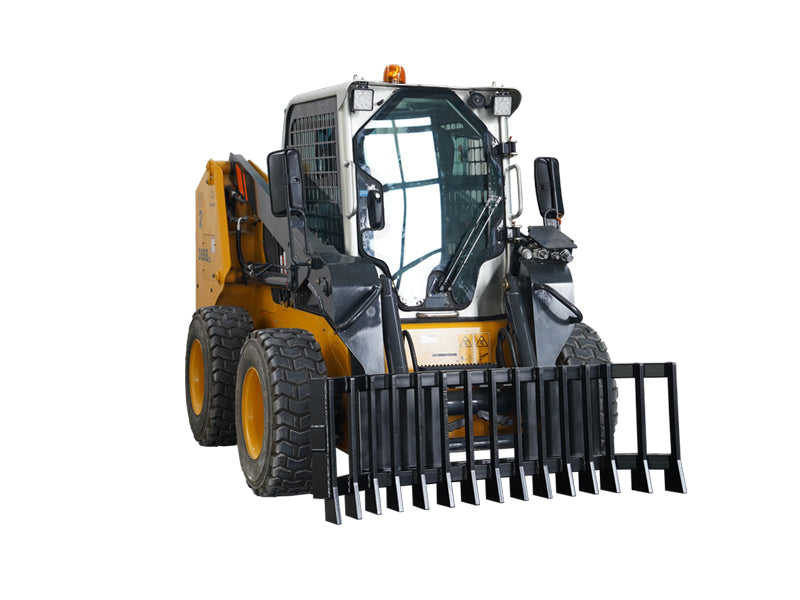

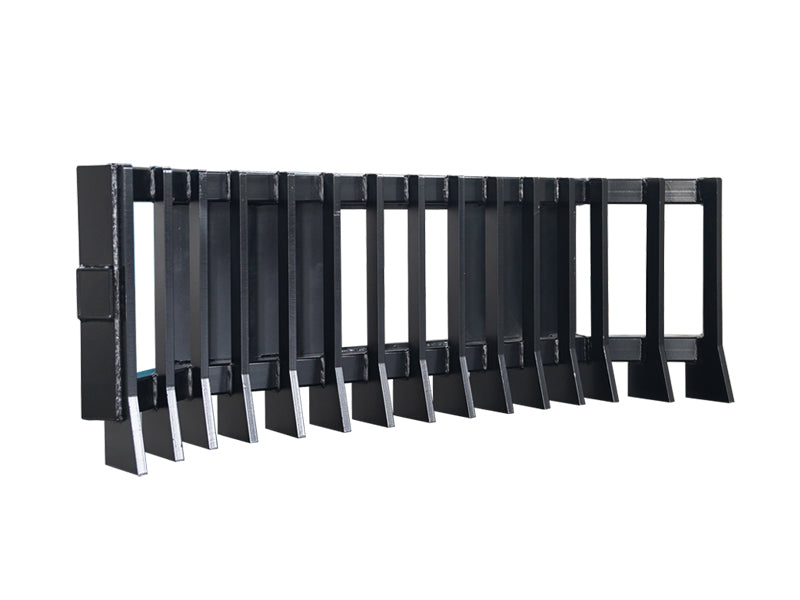

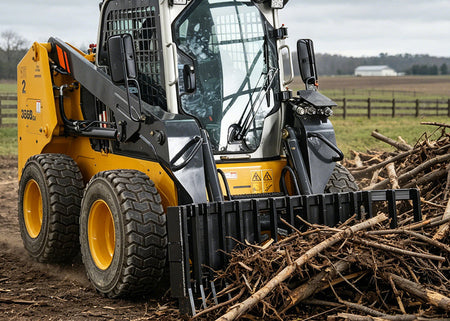

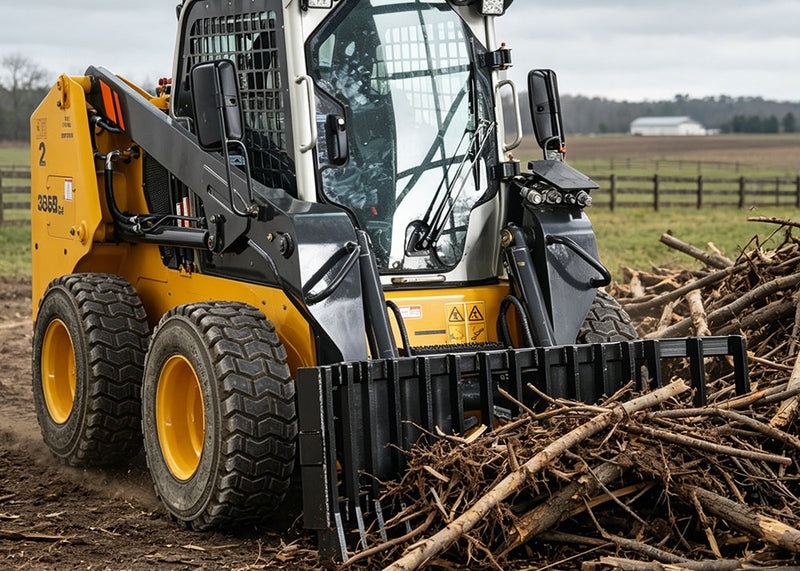

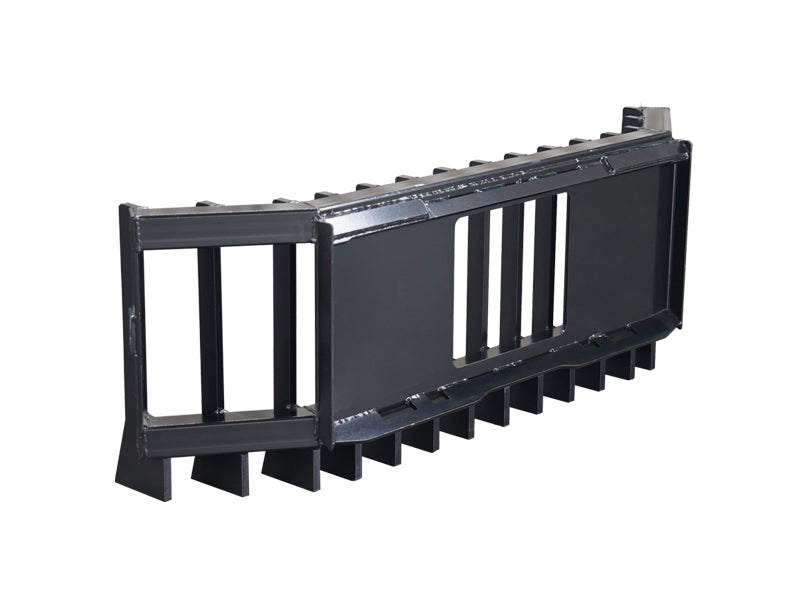

The LANDYINDUS S-SR Series Skid Steer Stick Rake is a heavy-duty land clearing tool built for operators who need to efficiently remove brush, stumps, roots, branches, fence line debris, and general vegetation from fields, construction sites, and wooded areas. The open-tine design allows soil and fine material to fall through the gaps during each pass, leaving only the larger debris captured in the rake — eliminating the need for a separate soil separation step and significantly reducing the total number of passes required to clear an area to a clean, workable surface.

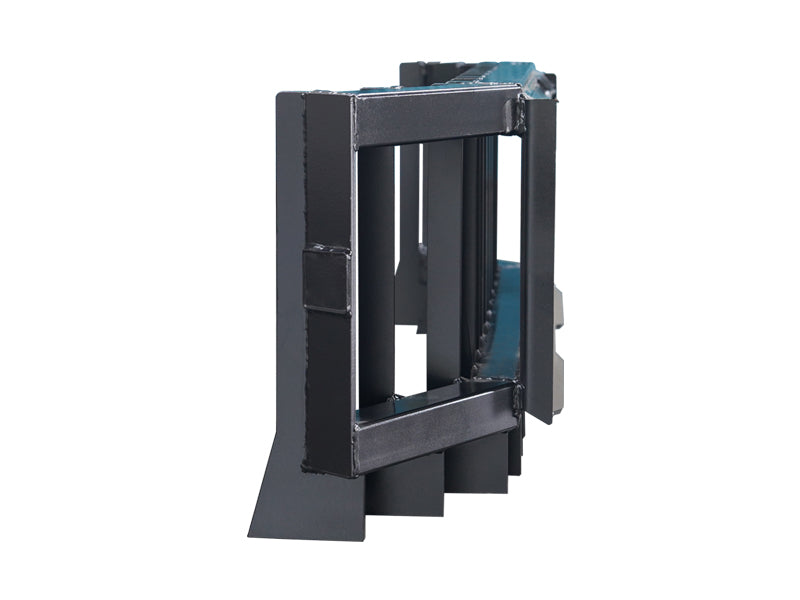

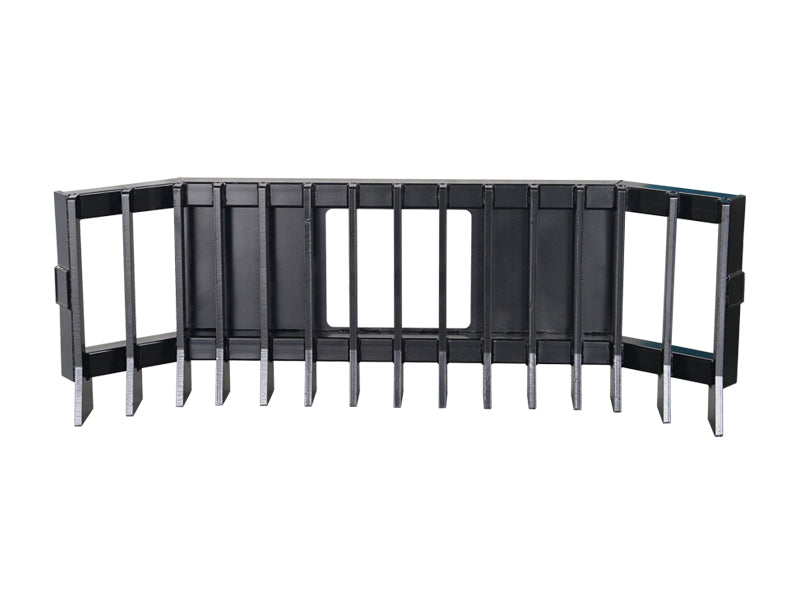

Integrated Side Wings — Prevent Brush & Branches Rolling Off Ends, Superior Containment vs Wingless Designs

The integrated side wings are the defining feature that sets this skid steer land clearing rake apart from standard wingless designs. By extending the effective containment width beyond the tine frame, the side wings prevent brush, branches, and vegetation from rolling off the ends of the rake during pushing and stacking operations — keeping material controlled and contained throughout the entire clearing cycle. This side-wing containment is particularly valuable when clearing fence lines, forest edges, and irregular terrain where material tends to scatter sideways, and it dramatically reduces the cleanup passes needed after the main clearing run.

Open Tine Design — Soil & Fine Material Falls Through Automatically, No Separate Separation Step Required

The open-tine design allows soil and fine material to fall through the gaps during each pass, leaving only larger debris — brush, stumps, roots, branches, and rocks — captured in the rake. This automatic soil separation eliminates the need for a separate soil separation step and significantly reduces the total number of passes required to clear an area to a clean, workable surface — saving time, fuel, and operator effort on every job.

Two Widths — 71" (1,800mm) & 87" (2,210mm) | Compact Skid Steers to Larger Loader Applications

Available in two widths to match your machine and job requirements:

• S-SR1800 — 71" (1,800mm) | 170kg | 400mm depth | 600mm height — compact skid steer configurations, tighter clearing areas & fence line work
• S-SR2210 — 87" (2,210mm) | 196kg | 400mm depth | 600mm height — larger loader applications, open fields & high-volume land clearing

Both models feature heavy-duty steel tine construction rated for continuous use against rocks, roots, and compacted debris.

No Hydraulics Required | Universal MP1140 Quick Attach — Any Skid Steer, Fast Tool-Free Installation

The S-SR series requires no auxiliary hydraulics — the attachment operates purely mechanically via the skid steer’s lift arms and bucket curl, making it compatible with virtually any skid steer loader regardless of hydraulic configuration. Mounts via universal MP1140 quick-attach plate for fast, tool-free installation. Suitable for new building site clearing, overgrown farmland reclamation, storm debris cleanup, fence line clearing, and forestry edge management.

Key Features

• Integrated side wings — prevent brush & branches rolling off ends, superior containment vs wingless
• Open tine design — soil & fine material falls through automatically, no separate separation step
• Heavy-duty steel tines — continuous use against rocks, roots & compacted debris
• Two widths — 71" (1,800mm) 170kg & 87" (2,210mm) 196kg
• No hydraulics required — compatible with any skid steer regardless of hydraulic configuration
• Building site clearing, farmland reclamation, storm debris, fence lines & forestry edge
• Universal MP1140 quick attach — fast tool-free installation on any skid steer

Technical Drawing:

Specifications
