LANDYINDUS S-TCR Series Skid Steer Trencher | 36" (960mm) or 48" (1,220mm) Max Depth | 3 Interchangeable Chain Options | 150mm Cutting Width | Adjustable Depth Control | MP1140 Universal Quick Attach

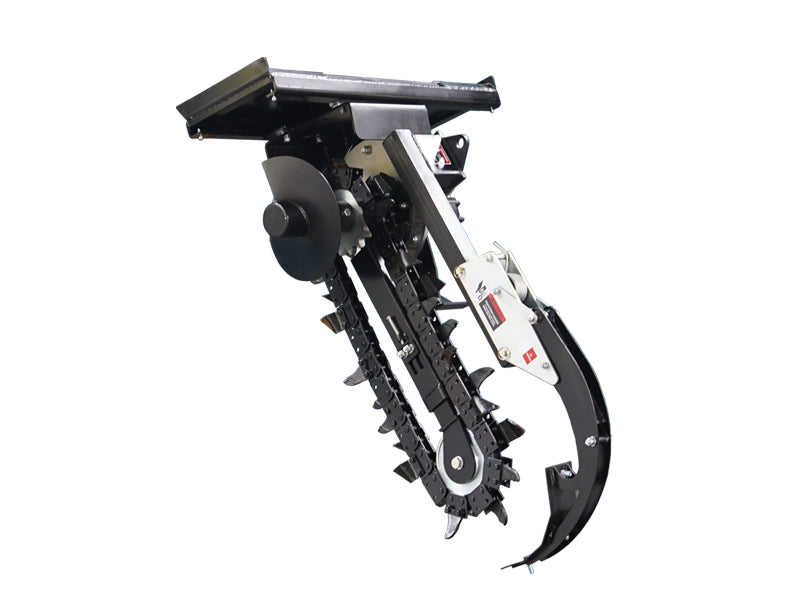

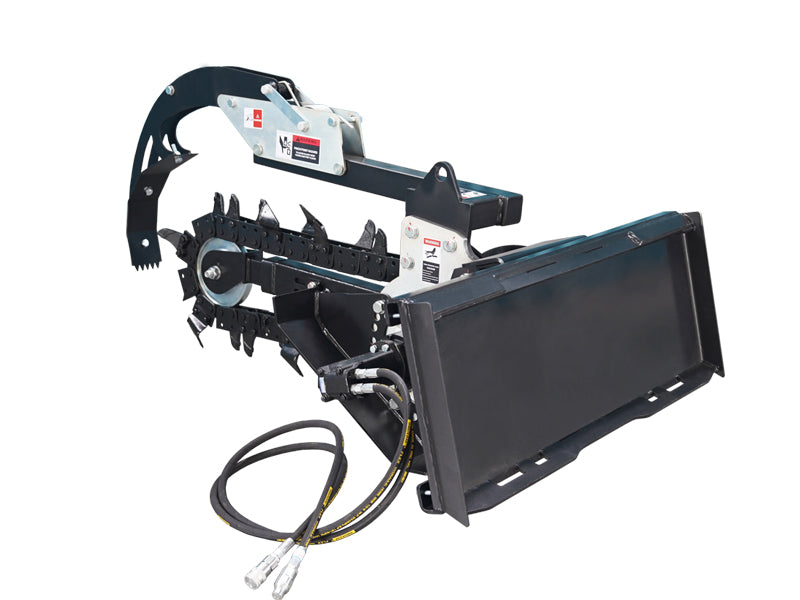

The LANDYINDUS S-TCR Series Skid Steer Trencher is a hydraulic chain trenching system built for contractors, farmers, and utility operators who need to dig precise, consistent trenches for irrigation pipe laying, underground power and communications cable installation, road repairs, and general construction applications. Available in two configurations — the 36" model with a maximum cutting depth of 960mm and the 48" model reaching up to 1,220mm — both deliver a consistent 150mm cutting width and mount to any skid steer via a universal quick-attach plate for fast, tool-free setup.

3 Interchangeable Chain Options — Earth, Rock, Concrete & Asphalt, Frozen Ground — One Attachment Covers All Ground Conditions Year-Round

The three interchangeable chain options are the defining advantage of this skid steer chain trencher over single-chain competitors:

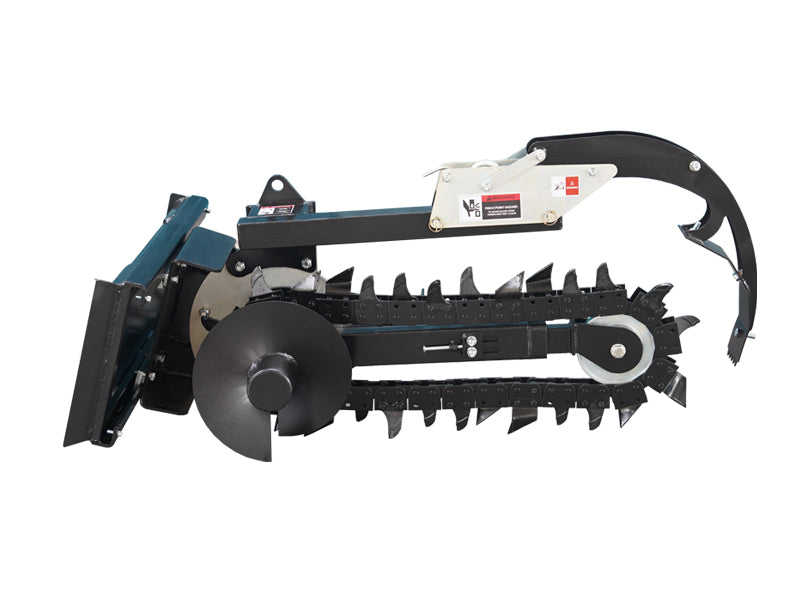

• Earth Chain — general soil conditions, efficient cutting in standard ground
• Rock Chain — hard and rocky ground where standard chains wear prematurely
• Concrete & Asphalt Chain — road repair and urban utility work on paved surfaces
• Frozen Ground Option — winter operations in frozen or frost-hardened soil

This multi-chain versatility means one attachment covers the full range of ground conditions a professional operator encounters across an entire season — eliminating the need to own separate trenching equipment for different job types.

Adjustable Depth Control Foot — Precise Target Depth, Consistent Throughout Entire Pass, Critical for Code-Compliant Utility Installation

The adjustable depth control foot allows the operator to set a precise target depth before beginning each trench run — ensuring the cutting chain maintains a consistent depth throughout the entire pass without manual monitoring or repeated depth checks. This depth consistency is critical for irrigation and utility installations where pipe or cable must be buried at a specific depth to meet code requirements or avoid frost damage.

Two Configurations — 36" (960mm Max) & 48" (1,220mm Max) | Four Selectable Depth Settings per Model

Both models share the same 1,232 × 1,436 × 1,804mm frame dimensions and 150mm cutting width, with depth range as the key differentiator:

Key Features

• 3 interchangeable chains — earth, rock, concrete/asphalt & frozen ground option
• One attachment, all ground conditions year-round — no separate trenchers for different job types
• Adjustable depth control foot — precise consistent depth, no manual monitoring
• 36" model: 500 / 650 / 800 / 960mm depth | 317kg
• 48" model: 690 / 890 / 1,070 / 1,220mm depth | 350kg
• 150mm cutting width — both models, irrigation to utility cable installation

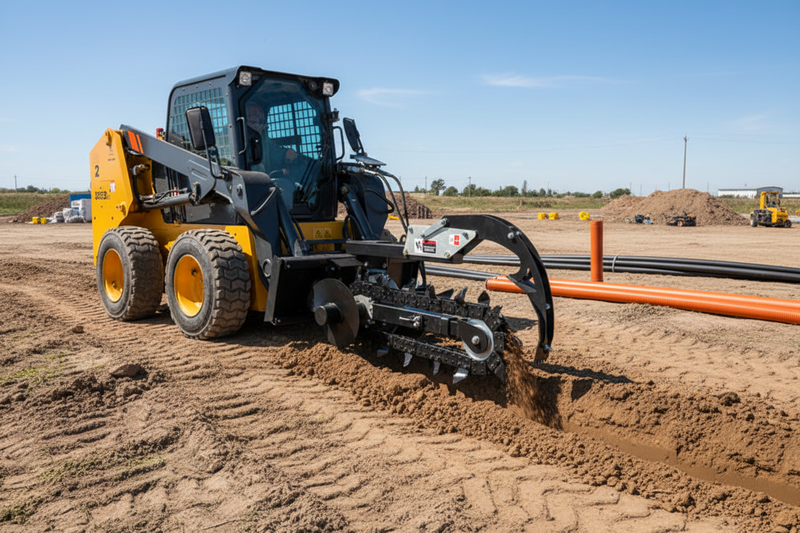

• Irrigation, underground power & comms, road repair & general construction
• 20 MPa | 75 LPM high-flow — maximum chain speed across all ground conditions

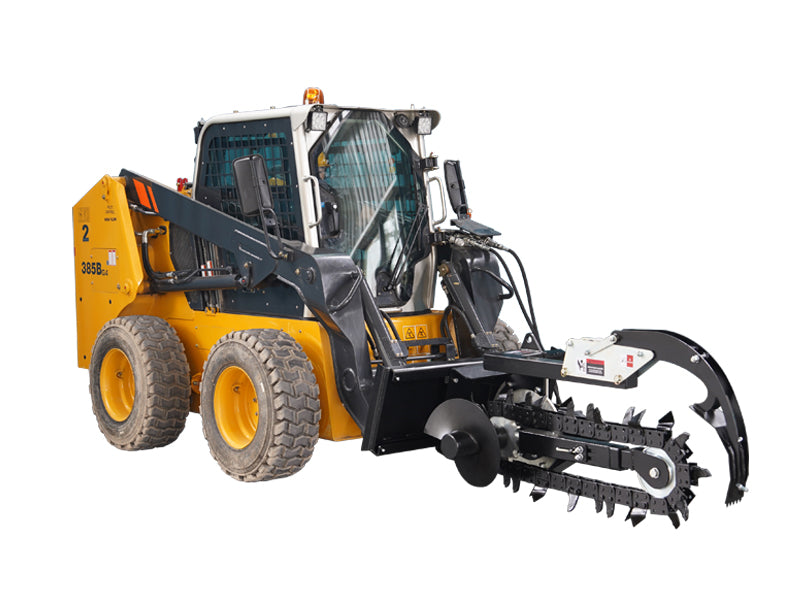

• Universal MP1140 quick attach — fast tool-free setup on any skid steer

Technical Drawing:

Specifications
