LANDYINDUS Skid Steer Wheel Saw | 14" Blade | 100mm Cut Width | 450mm Depth | Concrete Asphalt Reinforced | Hydraulic Trench Cleaner | MP1140

LANDYINDUS S-WS14IN-100-MP1140 Skid Steer Wheel Saw | 14" Blade | 100mm Cutting Width | 450mm Cutting Depth | Reinforced Concrete & Asphalt | Hydraulic Trench Cleaner | MP1140 Universal Quick Attach

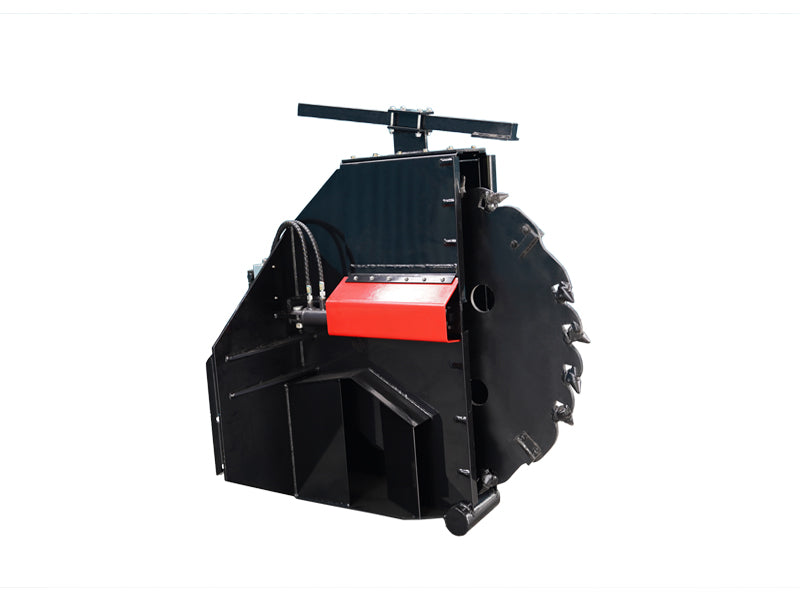

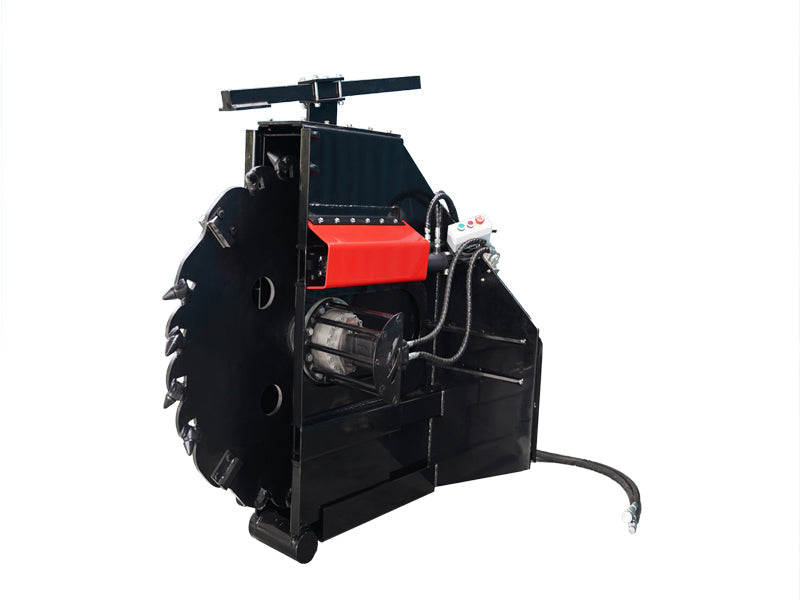

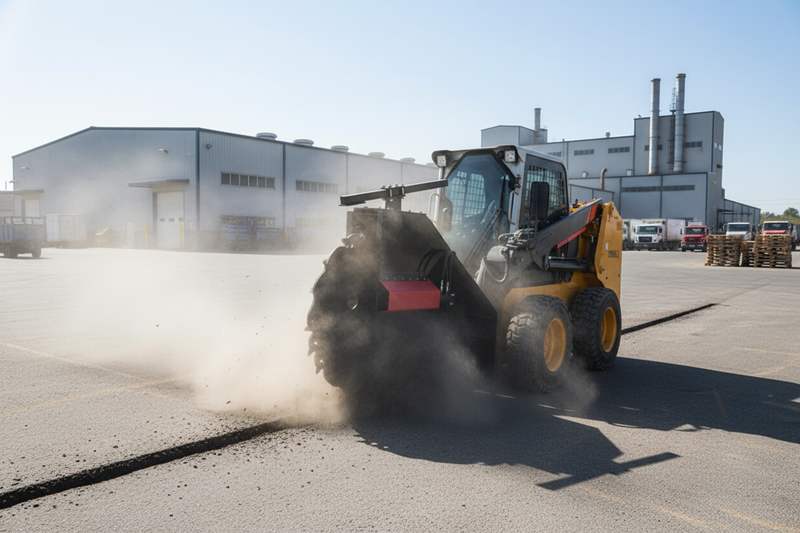

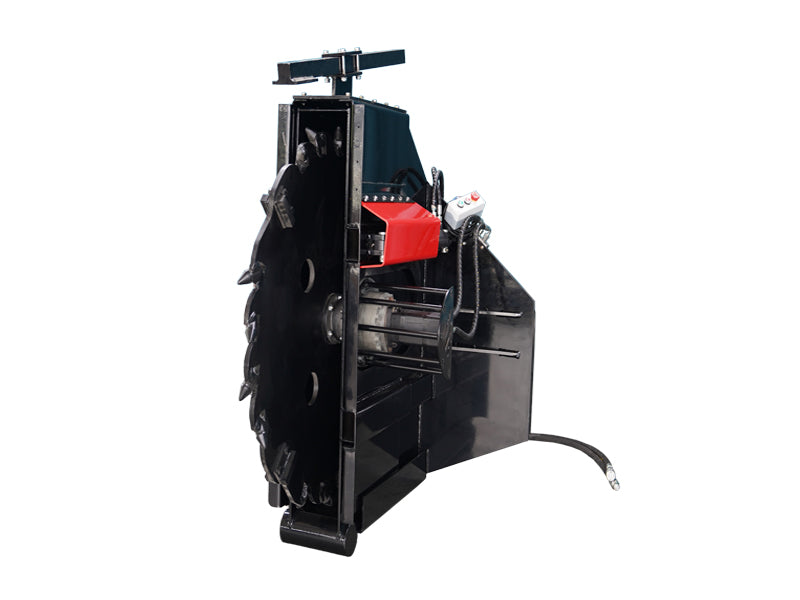

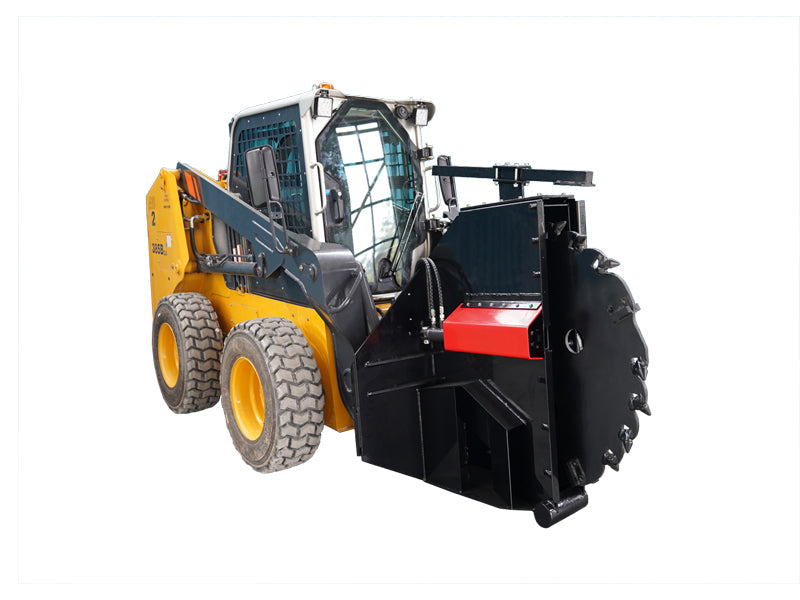

The LANDYINDUS S-WS14IN Skid Steer Wheel Saw is a heavy-duty concrete and asphalt cutting attachment engineered for contractors, municipalities, and utility crews who demand precision and efficiency on every job. Designed to mount directly onto skid steer loaders, this wheel saw delivers clean, controlled cuts through the toughest surfaces — including reinforced concrete, asphalt pavement, frozen ground, and wire mesh — without the excessive vibration or collateral damage caused by traditional air hammers or hydraulic breakers.

14" Blade | 100mm Cutting Width | 450mm Cutting Depth — Precision Cuts Through Reinforced Concrete, Asphalt, Frozen Ground & Wire Mesh

The 14" wheel saw blade delivers a 100mm cutting width at up to 450mm depth — sufficient for the full range of utility trenching and road repair applications including water lines, gas pipelines, electrical conduits, and fiber-optic cable installation. The wheel saw delivers clean, controlled cuts without the excessive vibration or collateral damage caused by traditional air hammers or hydraulic breakers — protecting adjacent pavement, structures, and underground utilities from impact damage during cutting operations.

Hydraulic Trench Cleaner — Raises & Lowers with Precision, Consistently Clean Trench Profile, Reduced Backfill Time & Labor

The hydraulically controlled trench cleaner raises and lowers with precision, ensuring a consistently clean trench profile that reduces backfill time and labor costs on every project. A clean trench profile is critical for utility installations where pipe or cable bedding must be placed on an undisturbed, debris-free trench floor — the hydraulic trench cleaner eliminates the manual cleanup step that conventional cutting methods require after each pass.

Utility Trenching & Road Repair — Water Lines, Gas Pipelines, Electrical Conduits & Fiber-Optic Cable

Built for real-world utility trenching and road repair applications, the S-WS wheel saw is the go-to choice for laying water lines, gas pipelines, electrical conduits, and fiber-optic cables. Whether managing a municipal road maintenance program or a large-scale utility installation, this attachment delivers the cutting accuracy and throughput that dedicated trenching machines offer — at a fraction of the transport and mobilization cost.

Compact for Tight Urban Environments | 16 MPa | 75 LPM | Universal MP1140 — Maneuverability Without Sacrificing Power

Compact enough to maneuver in tight urban environments yet powerful enough for demanding commercial jobsites. Operating at 16 MPa with a hydraulic flow requirement of 75 LPM, the S-WS integrates with high-flow skid steer hydraulic systems. At 760kg with overall dimensions of 1,740 × 1,343 × 1,324mm, the attachment mounts via universal MP1140 quick-attach plate for fast, tool-free installation.

Wheel Saw vs Hydraulic Breaker vs Chain Trencher — When to Choose the Wheel Saw

Key Features

• 14" blade | 100mm cutting width | 450mm cutting depth
• Cuts reinforced concrete, asphalt, frozen ground & wire mesh — clean, controlled, no impact damage
• Hydraulic trench cleaner — raises & lowers with precision, clean trench profile, less backfill labor
• No excessive vibration — protects adjacent pavement, structures & underground utilities
• Water lines, gas pipelines, electrical conduits & fiber-optic cable installation
• Municipal road maintenance & large-scale utility installation
• Compact — tight urban environments & commercial jobsites
• 16 MPa | 75 LPM high-flow | 760kg | 1740×1343×1324mm
• Universal MP1140 quick attach — fast tool-free installation on any skid steer

Technical Drawing:

Specifications
