LANDYINDUS T-BBL Telescopic Big Bag Lifter | 1,500kg SWL Per Arm | Single Arm (T-BBL12) or Dual Arm (T-BBL18) | 1,133–1,533mm Telescopic Reach | Euro Quick Attach & SMS Trima | Tractor Front Loader

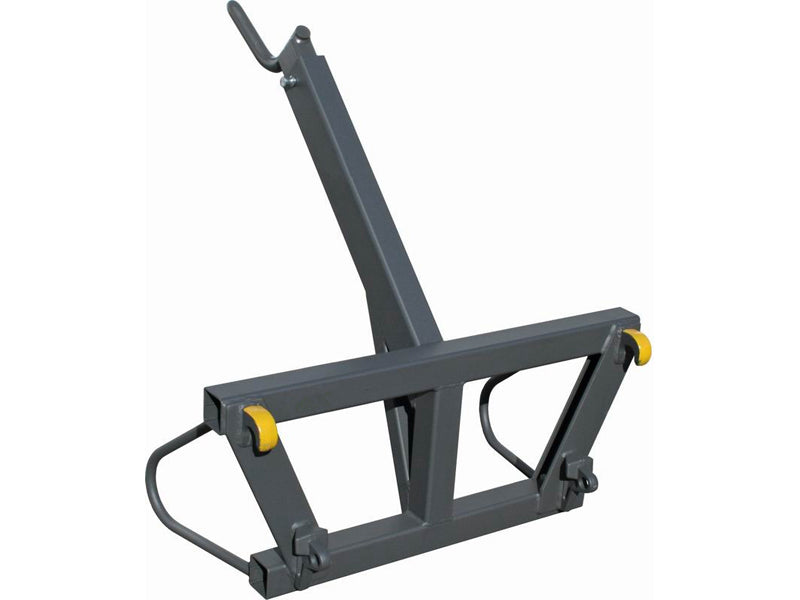

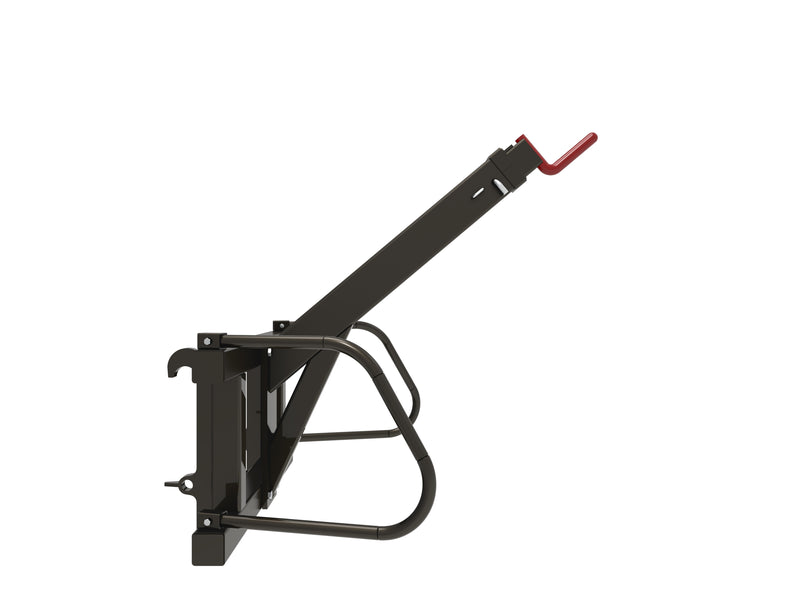

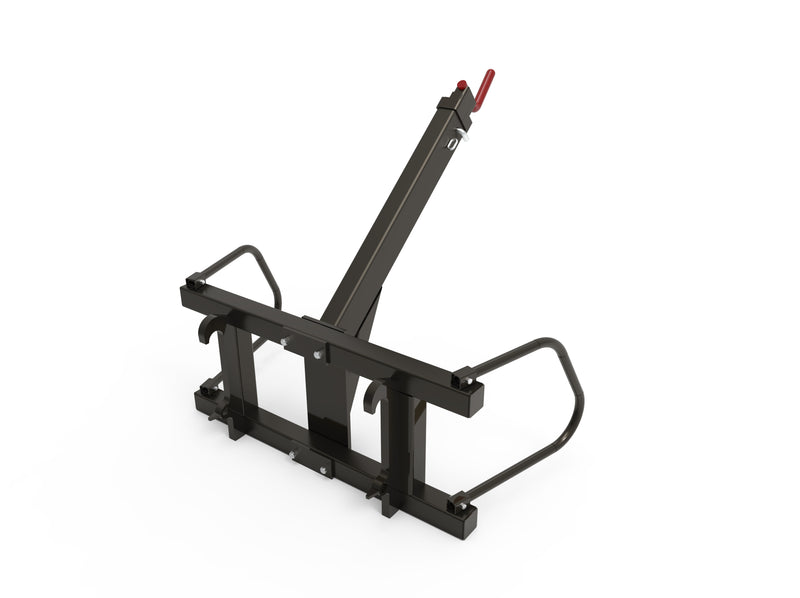

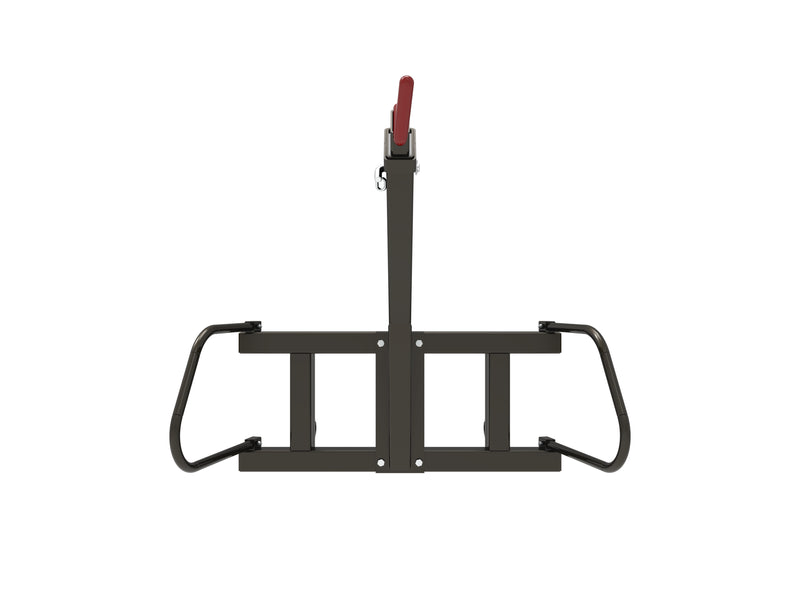

The LANDYINDUS T-BBL Telescopic Big Bag Lifter is a heavy-duty tractor front loader attachment with a safe working load of 1,500kg per arm — 50% higher capacity than the T-BBH1/T-BBH2 series. Built to handle the most demanding bulk material lifting tasks on farms, construction sites, and logistics yards, the T-BBL series is available in single-arm (T-BBL12) and dual-arm (T-BBL18) configurations to match your specific workload and tractor setup.
1,500kg SWL Per Arm — 50% Higher Capacity Than Standard Big Bag Lifters, Zero Tolerance for Downtime
With a rated capacity of 1,500kg per arm, the T-BBL series outperforms standard big bag lifters and is engineered for operations where downtime and load failures are not an option. The dual-arm T-BBL18 delivers a combined capacity of 3,000kg, making it the highest-capacity big bag lifter in the LANDYINDUS lineup for high-volume bulk handling applications.
1,133–1,533mm Telescopic Reach — 400mm Adjustment Range, Precise Hook Alignment Without Repositioning
The telescopic arm extends from 1,133mm to 1,533mm, providing a 400mm range of reach adjustment without repositioning the tractor. This adjustable arm length allows operators to precisely align the hook with bag loops even in confined or uneven working environments, reducing the time and effort required per lift. The large, clearly visible hook is designed to be driven into bag loops directly from the cab, giving the operator a clear sightline and eliminating the need to dismount during routine handling operations.
Four Configurations — Single Arm 1,200mm Width | Dual Arm 1,800mm Width | Euro & SMS
| Model | SWL | Arms | Reach (mm) | Width (mm) | Height (mm) | Attach | Weight (kg) |
|---|---|---|---|---|---|---|---|
| T-BBL12-EURO | 1,500kg | 1 | 1,133–1,533 | 1,200 | 1,176–1,511 | EURO | 110 |
| T-BBL12-SMS-C | 1,500kg | 1 | 1,133–1,533 | 1,200 | 1,176–1,511 | SMS | 112 |
| T-BBL18-EURO | 1,500kg/arm | 2 | 1,133–1,533 | 1,800 | 1,176–1,511 | EURO | 176 |
| T-BBL18-SMS-C | 1,500kg/arm | 2 | 1,133–1,533 | 1,800 | 1,176–1,511 | SMS | 178 |
Full Big Bag Lifter Series Comparison — Choosing the Right Model
| Series | SWL/arm | Max Combined | Reach | Best For |
|---|---|---|---|---|
| T-BBH1 (single) | 1,000kg | 1,000kg | Fixed | Occasional handling |
| T-BBH2 (dual) | 1,000kg | 2,000kg | Fixed | High-volume standard bags |
| T-BBL12 (single) | 1,500kg | 1,500kg | 1,133–1,533mm | Heavy single bags, max reach |
| T-BBL18 (dual) | 1,500kg | 3,000kg | 1,133–1,533mm | Highest capacity, high-cycle ops |
Key Features
- 1,500kg SWL per arm — 50% higher than T-BBH series, zero tolerance for load failures
- Single arm (T-BBL12) or dual arm (T-BBL18) — 1,500kg to 3,000kg combined
- 1,133–1,533mm telescopic reach — 400mm adjustment, no machine repositioning
- 1,176–1,511mm height range — ground pickup to elevated placement
- Large visible hook — cab-driven loop engagement, no dismounting
- Euro quick attach & SMS Trima — wide tractor compatibility, no adapters
- Fertilizer, grain, sand, gravel and construction aggregates
Technical Drawing:
