LANDYINDUS Telescopic Crane Jib | 2.2t, 4t, 6t & 10t | Up to 6.01m Reach | Euro, SMS, Z602, Big BM & BM L150/180 | Front Loader | T-CJ

LANDYINDUS T-CJ Telescopic Crane Jib | 2.2t, 4.0t, 6.0t & 10t Lifting Capacity | Up to 6.01m Telescopic Reach | Euro, SMS, Z602, Big BM & BM L150/180 | Tractor Front Loader

The LANDYINDUS T-CJ Telescopic Crane Jib is a front loader lifting attachment available in four capacity classes — 2.2 tonnes, 4.0 tonnes, 6.0 tonnes, and 10 tonnes — with maximum telescopic reach extending to 6.01 meters at reduced load. Designed for industrial construction, agricultural, and infrastructure applications, this front loader crane jib allows operators to lift, position, and transport heavy loads, machinery components, structural elements, and bulk material containers directly from the tractor cab without the need for a dedicated mobile crane or telehandler.

Variable Telescopic Reach — Adjust Working Radius Without Repositioning the Tractor

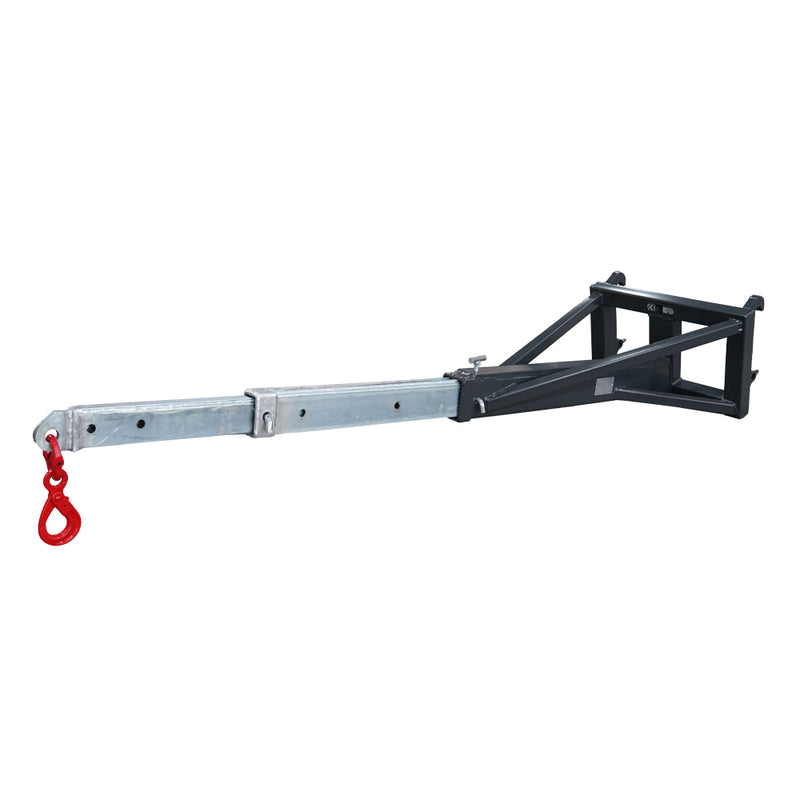

The telescopic arm design provides variable reach from the minimum collapsed length to the maximum extended position, allowing the operator to adjust the working radius to match the specific lift requirement without repositioning the tractor. Rated capacities reduce proportionally as the arm extends — giving operators precise control over lift planning and ensuring the correct model is selected for the combination of load weight and working distance required.

Load-Radius Ratings — Select the Right Model for Your Load Weight and Working Distance

Four Capacity Classes — Mid-Size Tractor to Heavy Construction Front Loader

• T-CJ2.2 (2.2t) — Euro, SMS & Z602 | 158–165kg — mid-size tractor loaders, agricultural lifting, machinery components
• T-CJ4.0 (4.0t) — SMS & Big BM | 394–395kg — mid-to-large tractor loaders, IBC containers, heavy pallets
• T-CJ6.0 (6.0t) — Big BM | 560kg — large front loader systems, precast elements, steel beams
• T-CJ10 (10t) — Big BM & BM L150/180 | 867–953kg — heavy construction-grade lifting, maximum structural capacity

Euro, SMS, Z602, Big BM & BM L150/180 — Broadest Crane Jib Interface Coverage in the LANDYINDUS Range

Compatible with Euro quick attach, SMS Trima, Z602, Big BM, and Big BM L150/180 front loader bracket systems, covering the most widely used front loader interfaces across European agricultural and construction tractor fleets. Each bracket configuration is dimensionally matched to its target loader interface, ensuring full engagement and rated load transfer without custom fabrication.

Typical Applications

• Precast concrete elements and structural steel beams
• Machinery, engine blocks and large agricultural equipment components
• IBC containers and heavy palletized loads
• Locations where a mobile crane cannot access or crane hire cost is not justified

Key Features

• Four capacity classes: 2.2t, 4.0t, 6.0t & 10t
• Up to 6.01m telescopic reach at reduced load
• Variable reach — adjust working radius without repositioning tractor
• Euro, SMS, Z602, Big BM & BM L150/180 — eight SKUs, broadest interface coverage
• 158kg (T-CJ2.2 SMS) to 953kg (T-CJ10 BM L150/180)
• Tractor-mounted lifting — no mobile crane or telehandler required

Technical Drawing:

Specifications
