LANDYINDUS Telescopic Forklift Jib Boom | 2.5T Tilt Long Jib | 3.58m Max Reach | 8 Hook Positions | Zinc Plated | F-TJL2.5

LANDYINDUS F-TJL2.5 Telescopic Forklift Jib Boom | 2.5T SWL | Tilt Adjustable Long Jib | 3.58m Max Reach | 8 Hook Positions | Zinc Plated

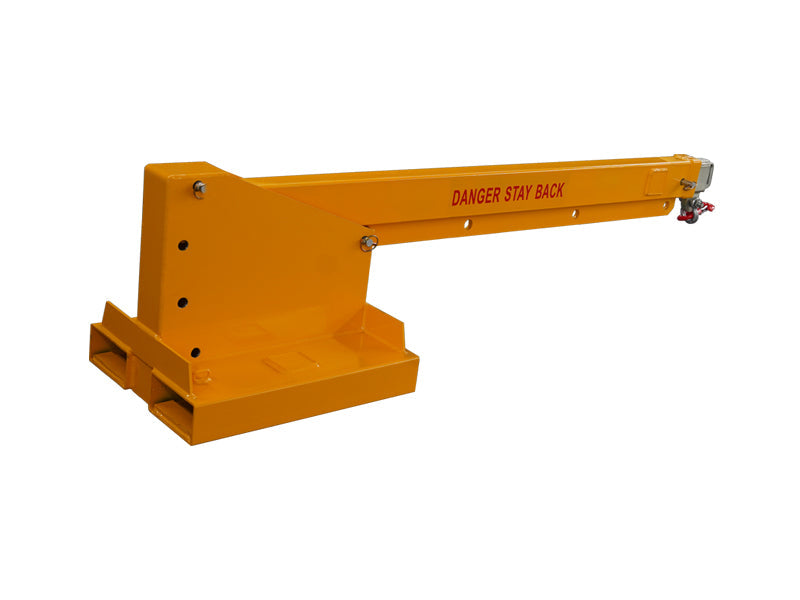

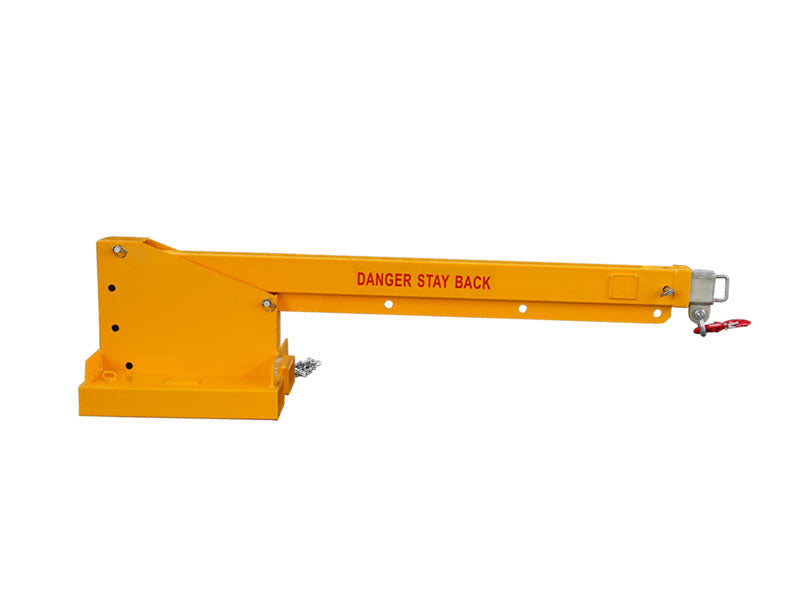

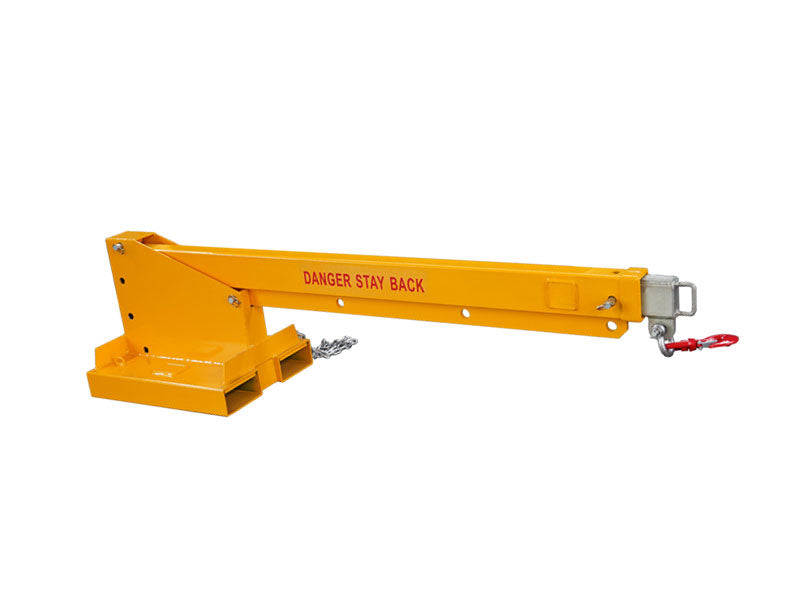

The LANDYINDUS F-TJL2.5 Telescopic Forklift Jib Boom is a heavy-duty, extendable crane jib attachment engineered for maximum lifting versatility across construction, industrial, and logistics applications. Rated at a 2.5-tonne safe working load (SWL), this attachment combines the massive horizontal reach of a long jib with the added functionality of tilt angle adjustment and telescopic extension.

This is the ultimate forklift crane attachment, delivering the reach, height, and load capacity needed for complex lifting tasks that standard pallet forks or fixed-angle jibs simply cannot perform.

Telescopic Extension — 3.58m Max Reach & 2.4m Height Gain

The inner extension beam slides out smoothly, extending the jib from its 2.15-metre retracted length up to a massive 3.58-metre maximum reach. Furthermore, when the jib is angled upwards and fully extended, it provides an incredible additional height gain of 2.4 metres above the forklift carriage.

This extreme vertical and horizontal clearance allows operators to:

• Lift loads over high barriers, safety fencing, or deep trenches on construction sites
• Reach deep into the back of shipping containers or enclosed transport trucks
• Place materials precisely onto second-story mezzanines or high racking tiers

3 Adjustable Angles & 8 Hook Positions

What sets the F-TJL2.5 apart from fixed-angle jibs is its unmatched positioning flexibility. The boom features 3 adjustable tilt angle settings (using a heavy-duty locking pin mechanism) and 8 distinct hook positions spaced along the inner and outer beams.

This allows the operator to fine-tune the lift angle and hook location to suit the exact requirements of the load geometry — ensuring the load remains level and the forklift remains stable when lifting irregular, awkward, or off-centre cargo.

Premium Zinc Plated Finish

Finished with a durable zinc plated coating, the telescoping jib boom is built to withstand outdoor exposure, moisture, and the corrosive conditions common to construction yards, ports, and open-air industrial environments. The zinc plated finish provides long-term structural protection, prevents rust from forming on the sliding telescopic inner beam, and significantly extends service life compared to standard painted steel alternatives.

Tool-Free Slip-On Design

The slip-on mounting design allows for fast, tool-free installation and removal across multiple forklift units. It features 165×65mm fork pockets set at 310mm centres. The attachment is secured firmly to the forklift carriage with a heavy-duty safety chain, ensuring absolute security during heavy-lift operations.

Applications

• Construction & Rigging — lifting structural steel, timber frames, and roofing materials
• Logistics & Ports — extracting heavy, unpalletised cargo from deep inside shipping containers
• Industrial Manufacturing — positioning heavy machinery, engines, and dies over obstacles
• Equipment Yards — a highly capable, cost-effective alternative to hiring mobile cranes

Key Features

• 2.5 Tonne (2,500kg) Safe Working Load
• Telescopic inner beam extends to 3.58 metres

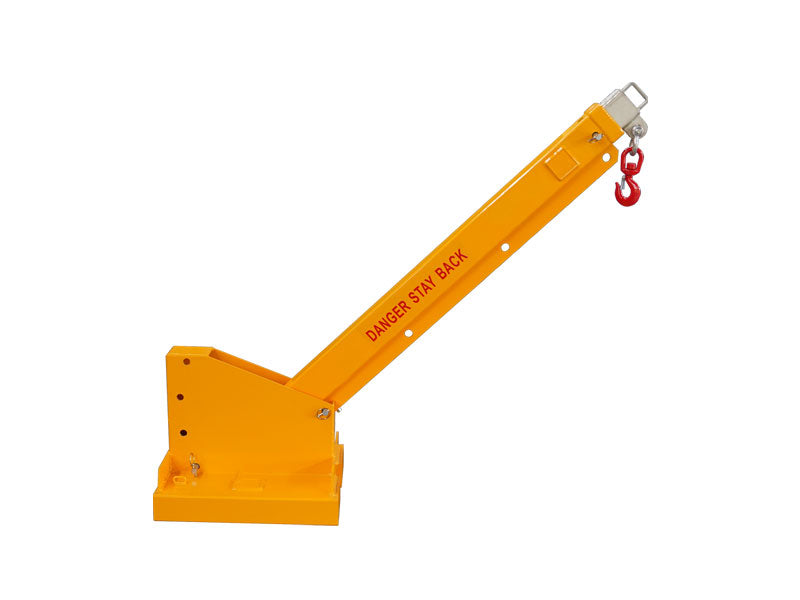

• Tilt adjustable — 3 angle settings for up to 2.4m of extra height
• 8 distinct hook positions for precision load balancing
• Premium zinc plated finish — extreme corrosion resistance
• Slip-on design with heavy-duty safety chain locking
• 180kg attachment weight balances reach capability with forklift stability

Specifications

Note: Custom reach lengths, SWL ratings, hook configurations, and pocket dimensions are available on request.

Technical Drawing
