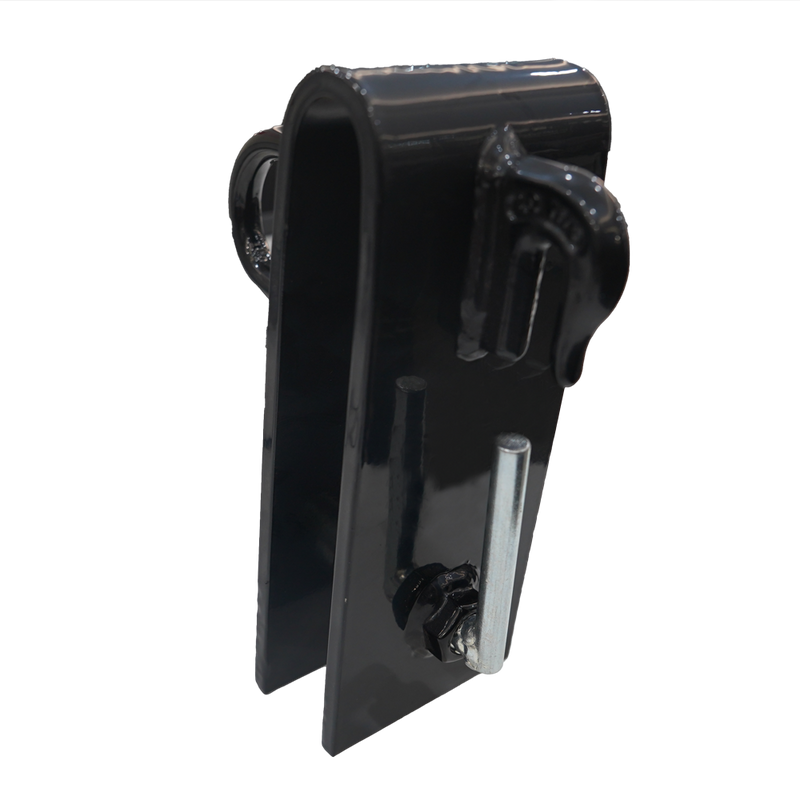

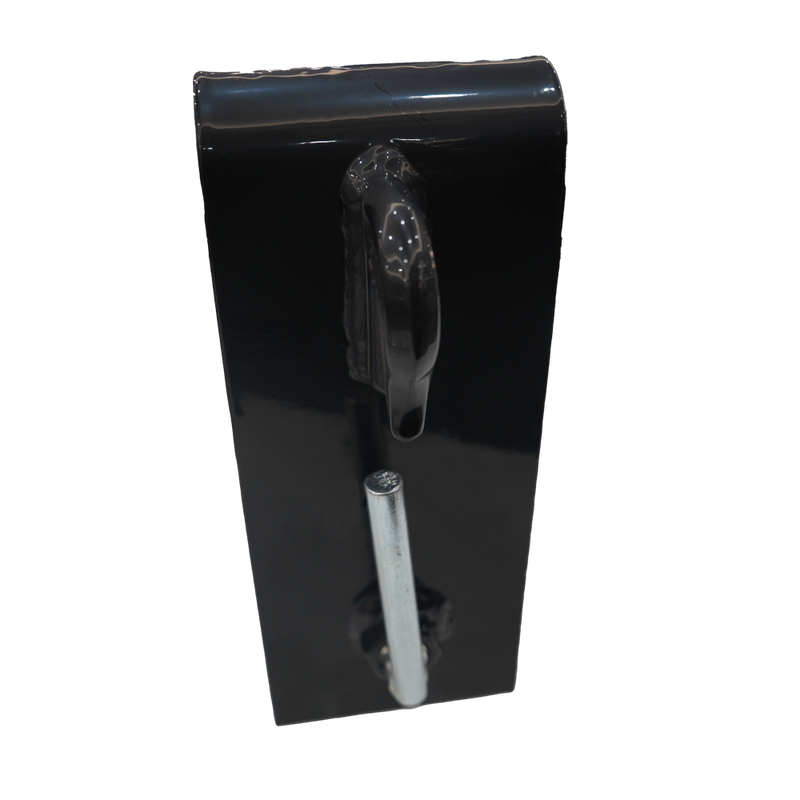

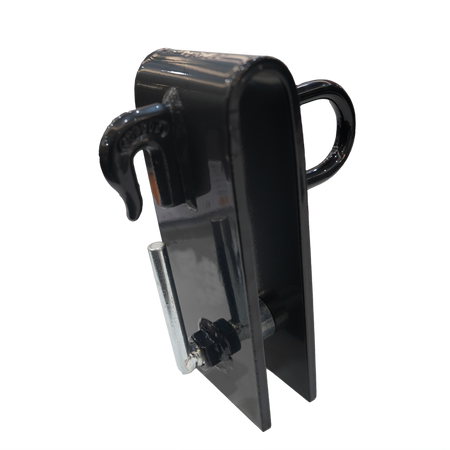

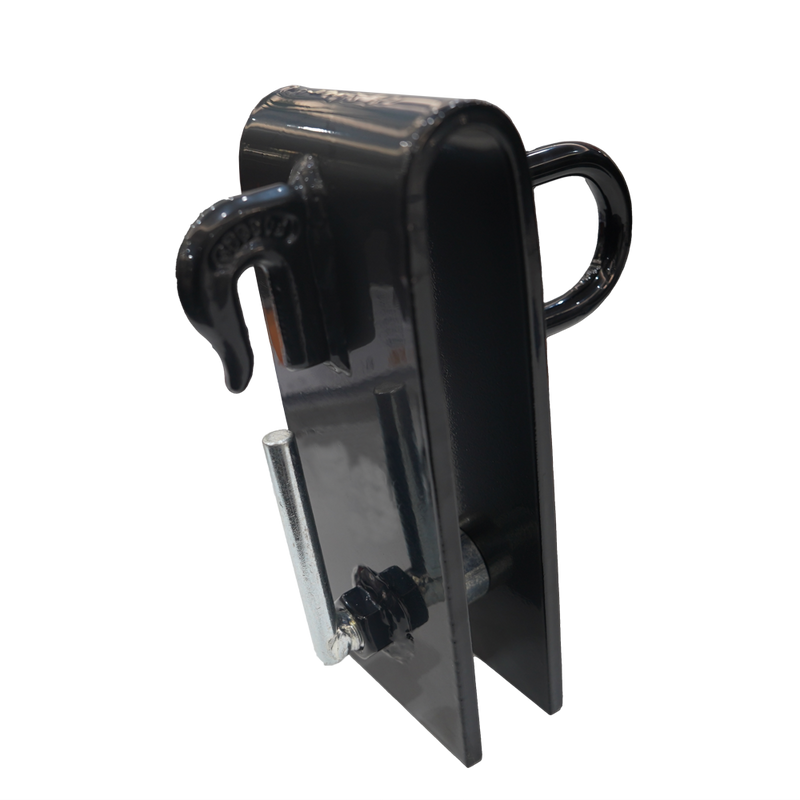

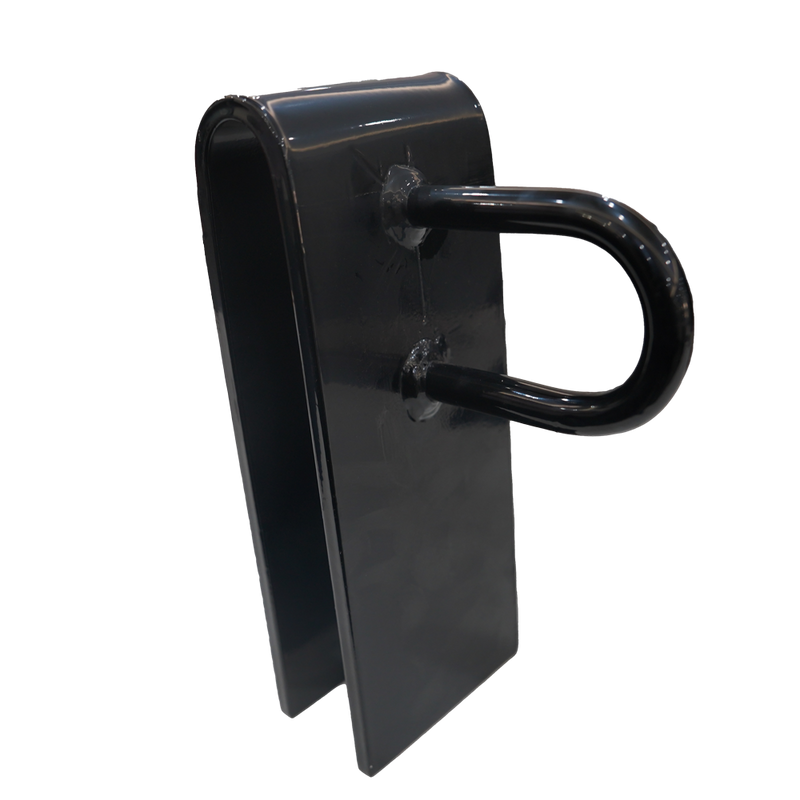

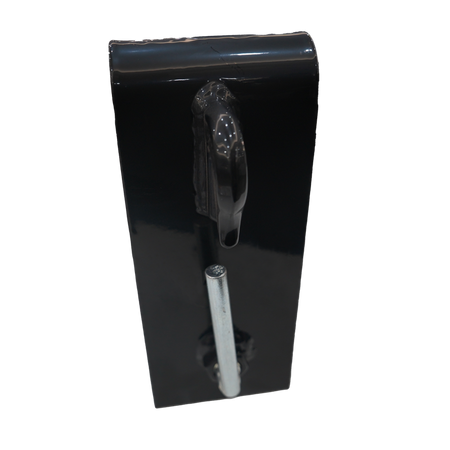

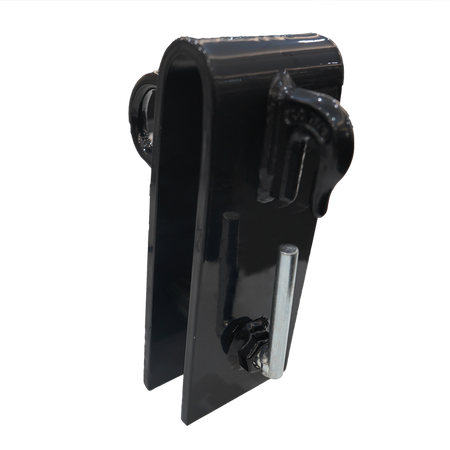

LANDYINDUS Tractor Bucket Grab Hook Attachment 1100 LB No Drill No Weld Hand Crank Puck Lock G-ELBA1.25IN
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!
Add an instant, heavy-duty lifting and towing anchor to your tractor loader bucket with the LANDYINDUS Tractor Bucket Grab Hook Attachment (Model: G-ELBA1.25IN). Engineered with an innovative hand crank and pressure puck clamping mechanism, this 500 kg (approximately 1,100 LB) rated hook attaches securely over your bucket lip in seconds—completely eliminating the need for drilling holes, welding brackets, or using specialized tools.
Product Overview
Lifting heavy logs, clearing site debris, pulling fence posts, and rigging transport chains are difficult tasks when using an open bucket alone. The LANDYINDUS G-ELBA1.25IN provides an instant, rugged tie-down point right on your bucket cutting edge. Featuring an integrated welded steel ring and a forged grab hook, it securely anchors transport chains, recovery tow straps, ropes, and lifting slings without marring or altering your bucket's factory steel.
Core Selling Points
100% Tool-Free Hand Crank & Puck Lock System
No bolts to torque, no drilling through reinforced bucket steel, and no welder needed. Simply slide the bracket over your loader bucket cutting edge, spin the heavy-duty hand crank, and the steel pressure puck compresses tightly against the bucket lip for a rigid, slip-resistant hold in seconds.
Heavy-Duty 500kg (1,100 LB) SWL Capacity
Fabricated from heavy-gauge structural plate steel, this compact anchor is certified for a 500kg Safe Working Load, providing dependable muscle for lifting farm implements, towing disabled vehicles, moving landscape rocks, or hauling fallen timber.
Dual Rigging: Welded D-Ring & Chain Grab Hook
Combines a precision grab hook that firmly grips 5/16" and 3/8" transport binder chains with an integrated heavy-duty steel ring that readily accepts synthetic tow straps, recovery ropes, and bow shackles.
Ultra-Compact & Portable 4kg Design
Weighing only 4kg with dimensions of 102 × 191 × 254mm, this attachment easily stows in a tractor toolbox or cab corner when not in use, ready to deploy at a moment's notice.
Specifications
| Parameter | Specification |
|---|---|
| Model / Type | G-ELBA1.25IN |
| Safe Working Load (SWL) | 500 kg (~1,100 LB) |
| Overall Dimensions (W × D × H) | 102 × 191 × 254 mm |
| Product Weight | 4 kg |
| Mounting Mechanism | Hand Crank with Pressure Puck Lock (Clamp-On) |
| Rigging Features | Integrated Welded Ring & Chain Grab Hook |
| Installation Requirement | Zero Drilling / Zero Welding / Tool-Free |
| Compatible Equipment | Tractor & Skid Steer Loader Bucket Lips |
Technical Drawing
⚠️ Safety & Compatibility Warnings
- Crank Tension Check: Ensure the hand crank is fully tightened against the bucket edge before applying pulling or lifting loads. Re-verify puck tightness after initial tensioning.
- Rigging Angle & Straight Pulls: Rig chains and straps for in-line, straight pulling forces. Avoid severe lateral side-loading angles that could twist the clamp bracket against the bucket edge.
- Ground-Level Rigging Only: Intended for ground-level pulling, log dragging, towing, and light cargo handling. NOT certified for overhead personnel or life-critical lifting.
- Bucket Lip Clearance: Verify your bucket cutting edge and wear plate thickness allow the clamp opening to seat fully against the back of the bracket throat.
