LANDYINDUS Triple Arm Big Bag Lifter | 1,500kg Per Arm (4,500kg Total) | 3 FIBCs Simultaneously | 2,780mm Width | Euro Quick Attach | T-TBBL1500

LANDYINDUS T-TBBL1500-EURO Triple Arm Big Bag Lifter | 1,500kg Per Arm | 4,500kg Combined SWL | 3 FIBCs Simultaneously | 2,780mm Working Width | 1,700–2,210mm Height | Bolted Hooks | Euro Quick Attach

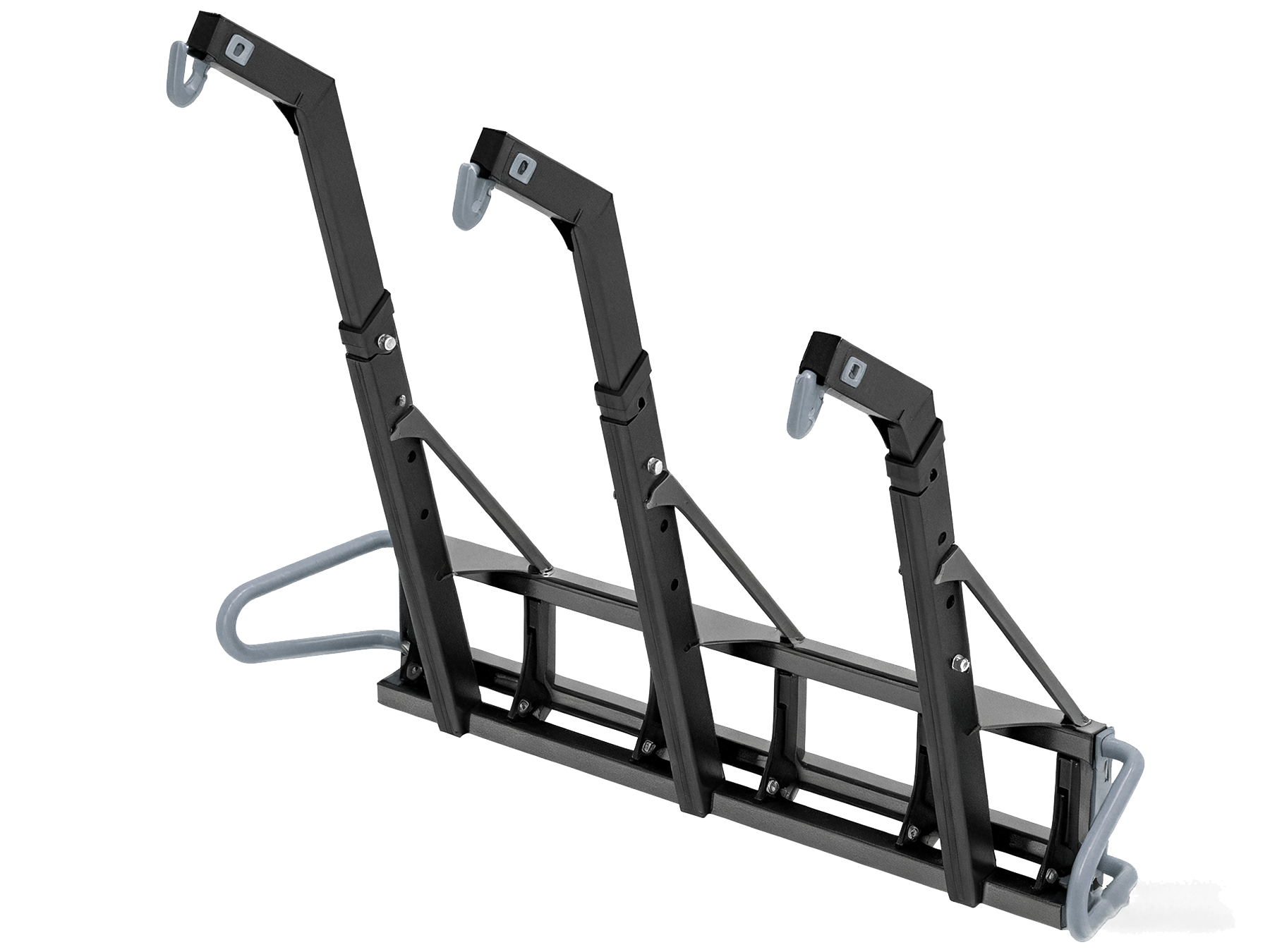

The LANDYINDUS T-TBBL1500 Triple Arm Big Bag Lifter is rated at 1,500kg per arm for a combined safe working load of 4,500kg across all three arms simultaneously. Designed for the most demanding bulk material handling operations on farms, construction sites, and industrial logistics yards, this triple-arm bulk bag handler allows operators to lift and transport three large FIBCs in a single pass, delivering a level of throughput that single and dual-arm alternatives simply cannot match.

4,500kg Combined SWL — Three FIBCs in One Pass, Unmatched Throughput vs Single and Dual-Arm

Each arm operates at the full 1,500kg rated capacity independently, delivering a combined 4,500kg SWL across all three arms. For operations where maximizing the number of bags moved per tractor pass is the primary productivity driver, the T-TBBL delivers 3x the throughput of single-arm alternatives and 1.5x the throughput of dual-arm models — directly reducing tractor hours, fuel consumption, and operator time per tonne moved.

2,780mm Working Width — Widest Span in Class, Three Standard FIBCs Side by Side

With a total working width of 2,780mm, the T-TBBL covers the widest span in its class, making it particularly well suited for operations that require simultaneous handling of multiple standard-width bulk bags side by side. Each arm is independently positioned to align with individual bag loops, giving the operator precise control over all three bags without repositioning the tractor between lifts.

1,700–2,210mm Height Range — Ground Pickup to Elevated Trailer and Platform Loading

The height adjustment range of 1,700 to 2,210mm accommodates a wide variety of bag sizes and loading heights, from ground-level pickup to elevated trailer and platform loading — covering the full vertical range required for farm, construction, and logistics yard operations.

Bolted Adjustable Hooks — Field Reposition or Swap Without Specialized Tooling, Extended Service Life

The bolted hook design on each arm allows hooks to be repositioned or swapped out in the field without specialized tooling, reducing maintenance downtime and extending the operational life of the attachment. The large, clearly visible hooks are engineered for direct cab-operated placement through bag loops, eliminating the need for the operator to dismount during routine handling cycles.

Complete Big Bag Lifter Series — T-TBBL in Context

Key Features

• 4,500kg combined SWL — highest capacity in the LANDYINDUS big bag lifter lineup
• 3 FIBCs simultaneously — 3x throughput vs single-arm, 1.5x vs dual-arm
• 2,780mm working width — widest span in class, three standard bags side by side
• 1,700–2,210mm height range — ground pickup to trailer and elevated platform
• Bolted adjustable hooks — field reposition or swap, no specialized tooling
• Cab-operated hook placement — no dismounting during routine handling
• Euro quick attach — wide tractor compatibility, no custom adapters
• 269kg — structural rigidity with practical front loader compatibility

Specifications
