LANDYINDUS Twin Bale Lifter Handler | Carry Two Bales at Once | 1,600kg SWL | 2,100mm Width | 620–1,000mm Opening | 3-Point Cat 2

LANDYINDUS T-TBH(2100x840-1200)-3Point Twin Bale Lifter Handler | Carry Two Bales Simultaneously | 1,600kg SWL | 2,100mm Working Width | 620–1,000mm Opening Range | 3-Point Linkage Cat 2

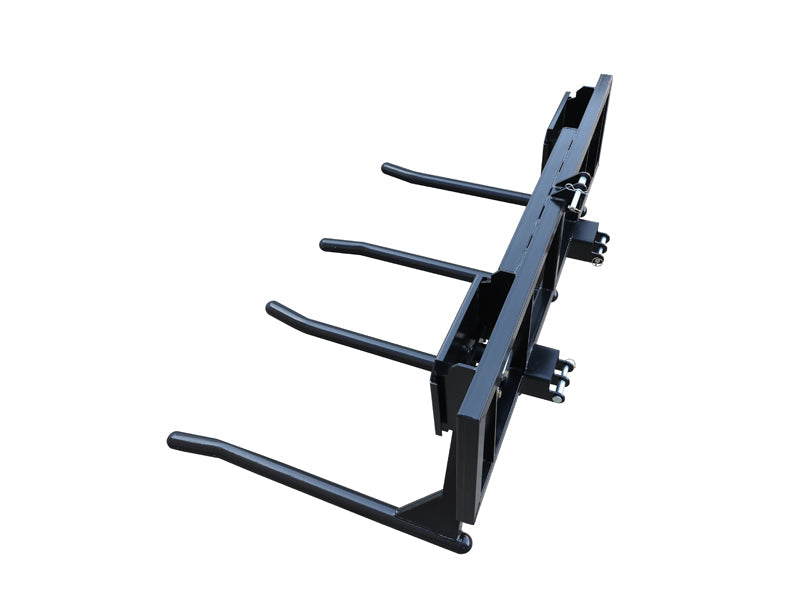

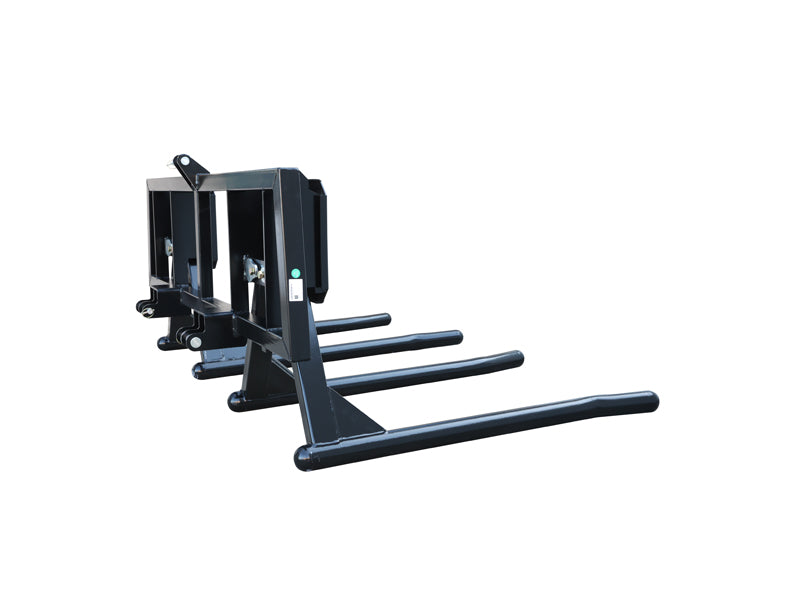

The LANDYINDUS T-TBH Twin Bale Lifter Handler is a heavy-duty, flexible implement engineered for high-efficiency bale handling operations. Uniquely designed to carry two bales simultaneously, this bale handler significantly reduces the number of trips required during bale transport — making it the ideal choice for farmers and contractors managing large-scale bale storage or silage operations where time and fuel efficiency are critical.

Carry Two Bales Simultaneously — Half the Trips, Double the Throughput vs Single-Bale Handlers

The defining advantage of the T-TBH is its ability to carry two full-size round or square bales in a single pass. With a safe working load of 1,600kg and a working width of 2,100mm, the twin bale lifter handles two bales simultaneously — cutting the number of field trips in half compared to single-bale handlers and delivering a direct reduction in fuel consumption, operator time, and tractor wear across every bale transport session.

Extended Tube Length and Generous Tube Diameter — Even Pressure Distribution, No Damage to Silage Film or Plastic Wrapping

The extended tube length and generous tube diameter distribute pressure evenly across both bales simultaneously, preventing damage to plastic wrapping and preserving the integrity of silage film during every lift and transport cycle. This even pressure distribution is critical for wrapped silage bales where puncture or film damage causes spoilage — protecting both the bale value and the silage quality throughout the handling process.

620–1,000mm Opening Range — Wide Variety of Bale Diameters, Consistent Grip Across All Sizes

With an opening range of 620 to 1,000mm, the lifter accommodates a wide variety of bale diameters, providing consistent grip and stability across different bale sizes and weights throughout the working season. This range covers the full spectrum of standard round bale diameters produced by most commercial round balers.

3-Point Linkage Cat 2 — Direct Fitment to Most Standard Tractors, No Adapters or Custom Brackets

The 3-Point Linkage Cat 2 attachment system ensures direct and secure fitment to most standard tractors without the need for additional adapters or custom brackets. Cat 2 is the most widely used three-point hitch standard across mid-to-large agricultural tractors, making the T-TBH compatible with the majority of tractors in professional farming fleets worldwide.

1,492 x 2,100 x 937mm | 239kg — Robust Steel Construction, Stable Dual-Bale Lifting Platform

The overall dimensions of 1,492 x 2,100 x 937mm provide a stable and well-balanced lifting platform, while the 239kg unit weight reflects the robust steel construction required to handle the increased dual-bale load capacity reliably under demanding field conditions season after season.

Key Features

• Carry two bales simultaneously — half the trips, double the throughput vs single-bale handlers
• 1,600kg SWL — two full-size round or square bales in a single pass
• Even pressure distribution — no damage to silage film or plastic wrapping
• 620–1,000mm opening range — all standard round bale diameters
• 2,100mm working width — side-by-side dual bale handling
• 3-Point Linkage Cat 2 — direct fitment, no adapters or custom brackets
• 239kg robust steel construction — continuous heavy-use durability
• Large-scale bale storage and silage operations

Technical Drawing:

Specifications
