Skid Steer Hydraulic Breaker Attachment Vertical | Concrete & Rock Demolition 3-Tool S-VBH

LANDYINDUS Skid Steer Hydraulic Breaker Attachment Vertical – Concrete & Rock Demolition 3-Tool S-VBH

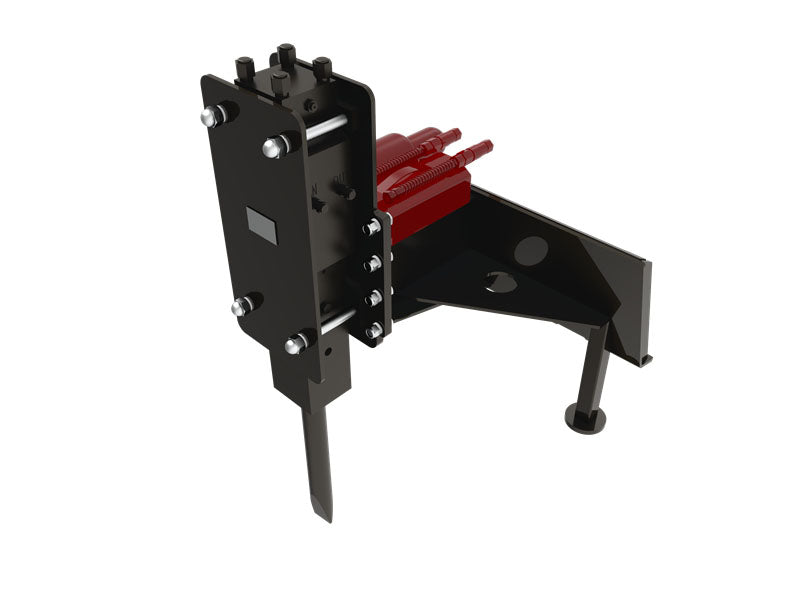

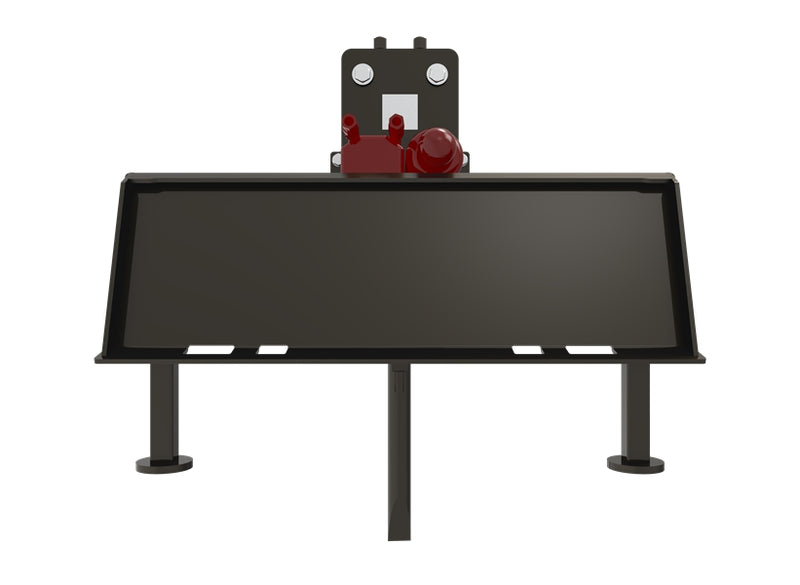

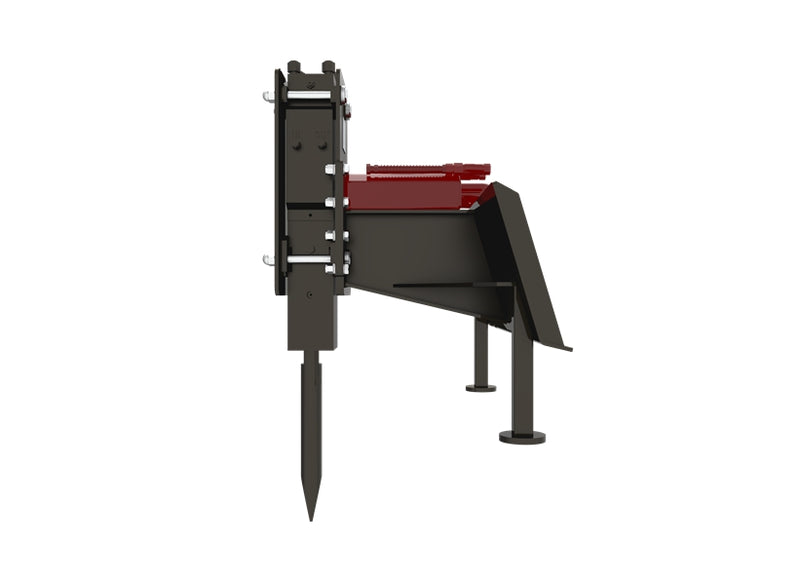

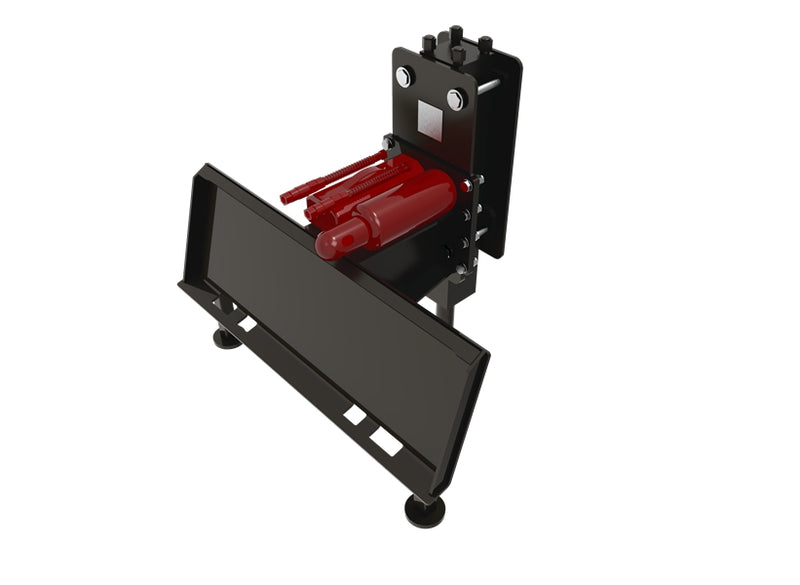

Maximum downward impact force for concrete breaking, rock excavation, asphalt removal, and foundation demolition. The LANDYINDUS S-VBH Skid Steer Vertical Hydraulic Breaking Hammer mounts perpendicular to the ground, directing full impact force straight down into the material — the preferred configuration for breaking concrete slabs from above, excavating rock formations, and demolishing foundation structures.

Available in 53mm, 68mm, and 75mm tool diameter configurations. Each model includes 3 interchangeable tool heads as standard: Cone chisel, Flat chisel, and Drive cup.

Key Features

• Vertical Mounting Design: Positions the breaker perpendicular to the ground for maximum downward penetration force — ideal for concrete slab breaking, rock excavation, foundation pier demolition, and hard material breaking
• 3 Tool Diameter Options: 53mm (600–1100 BPM) for rapid breaking of lighter concrete & asphalt; 68mm (450–750 BPM) for reinforced concrete & dense rock; 75mm (400–800 BPM) for sustained heavy-duty breaking of hard aggregate formations
• 3 Interchangeable Tool Heads (Standard): Cone chisel for rock & hard material penetration; Flat chisel for concrete slab & asphalt breaking; Drive cup for compaction & driving tasks
• Hydraulic-Driven Piston: High-speed drill rod impact system operating at 12–15 MPa / 50–70 LPM — consistent high-cycle impact performance throughout the working day
• Standard Quick Attach Compatible: Mounts directly to skid steer hydraulic circuit without custom adapters or modifications
• Structural Mass for Stable Breaking: 316–539kg attachment weight provides effective ground contact and stable breaking performance

Available Models

• S-VBH530-MP1140: Tool Dia. 53mm | 1232×806×1423mm | 12MPa / 50LPM | 600–1100 BPM | 316kg
• S-VBH680-MP1140: Tool Dia. 68mm | 1232×806×1423mm | 13MPa / 60LPM | 450–750 BPM | 412kg
• S-VBH750-MP1140: Tool Dia. 75mm | 1232×806×1423mm | 15MPa / 70LPM | 400–800 BPM | 539kg

Technical Specifications

• Frame Dimensions (W×D×H): 1232 × 806 × 1423 mm (all models)
• Tool Diameter: 53mm / 68mm / 75mm
• Operating Pressure: 12–15 MPa
• Hydraulic Flow: 50–70 LPM
• Impact Frequency: 400–1100 BPM (model dependent)
• Weight: 316–539 kg
• Mount: MP1140 Standard Skid Steer Quick Attach

Ideal For

• Demolition contractors — reinforced concrete foundation & slab breaking
• Road construction crews — asphalt & base layer removal
• Site preparation — rock formation clearing for new construction
• Civil engineering — foundation pier demolition & hard material excavation

Technical Drawing:

Contact LANDYINDUS for model selection guidance, volume pricing, OEM inquiries, or compatibility checks for your skid steer machine.
