LANDYINDUS Skid Steer Hydraulic Tilt Coupler Quick Attach – 20 Degree Tilt Adapter for Grading & Ditching

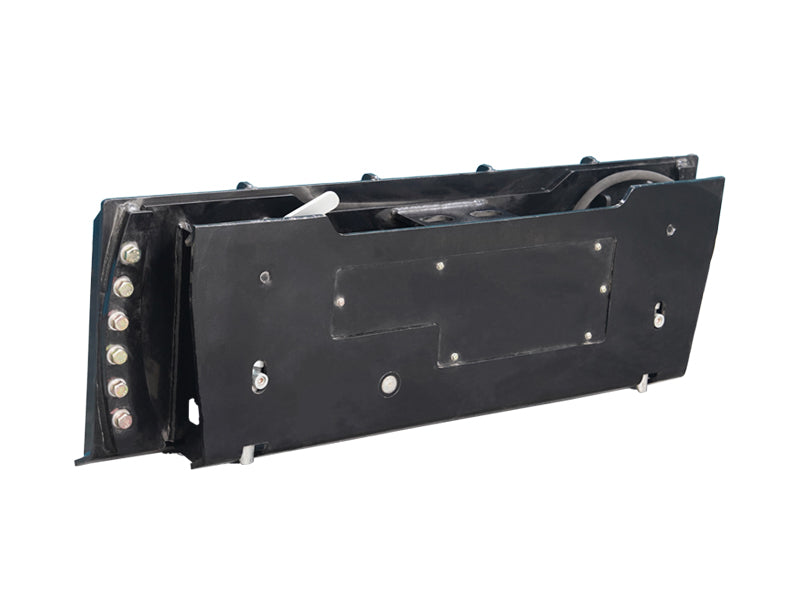

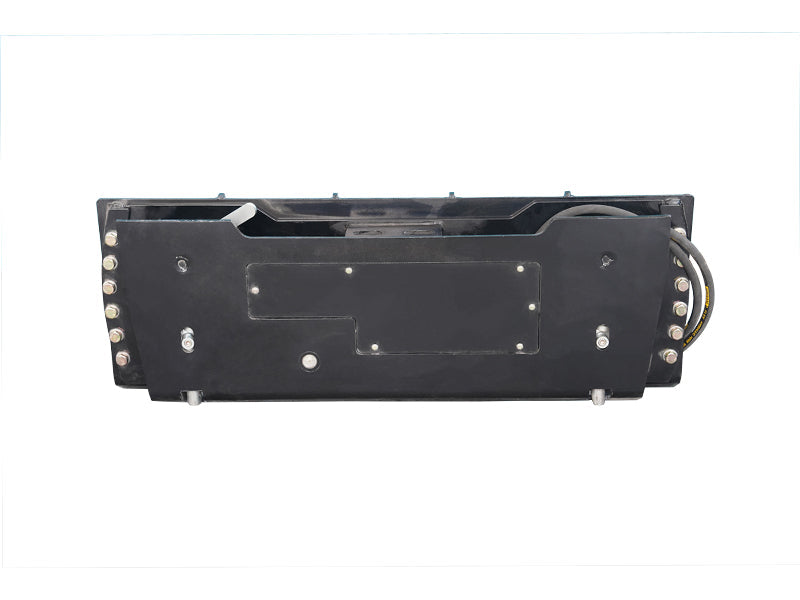

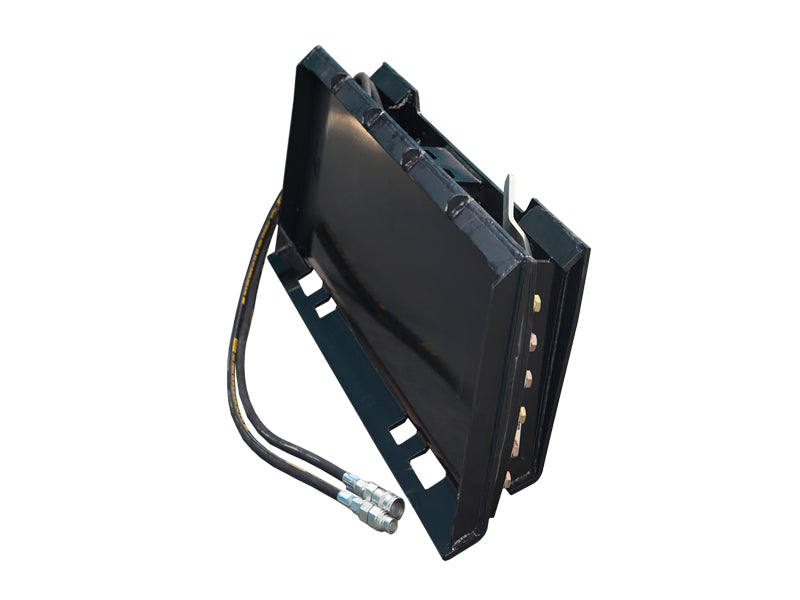

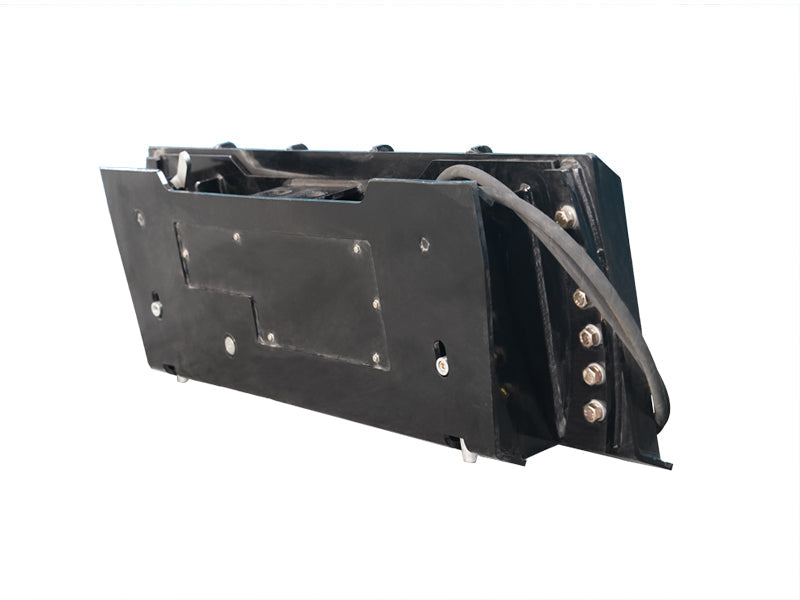

Add powered left/right tilting capability to any standard skid steer attachment — without leaving the cab. The LANDYINDUS S-HTMP1140 Hydraulic Tilt Coupler connects between your skid steer’s universal quick attach plate and any standard attachment, delivering up to 20° left/right tilt controlled directly from the operator seat.

Operating at 16 MPa / 60 LPM. Weight: 164kg. Compatible with universal skid steer quick attach systems.

Key Features

• Up to 20° Hydraulic Tilt (Left & Right): Angle any attachment up to 20 degrees from the skid steer’s horizontal centerline — cut grades, shape ditches, form swales, and keep buckets and blades level on uneven or hilly terrain without repositioning the machine
• Cab-Controlled Operation: Make fine tilt adjustments on the fly while remaining seated — improves operator efficiency and safety on sloped ground and hillside applications where maintaining a level working angle is critical

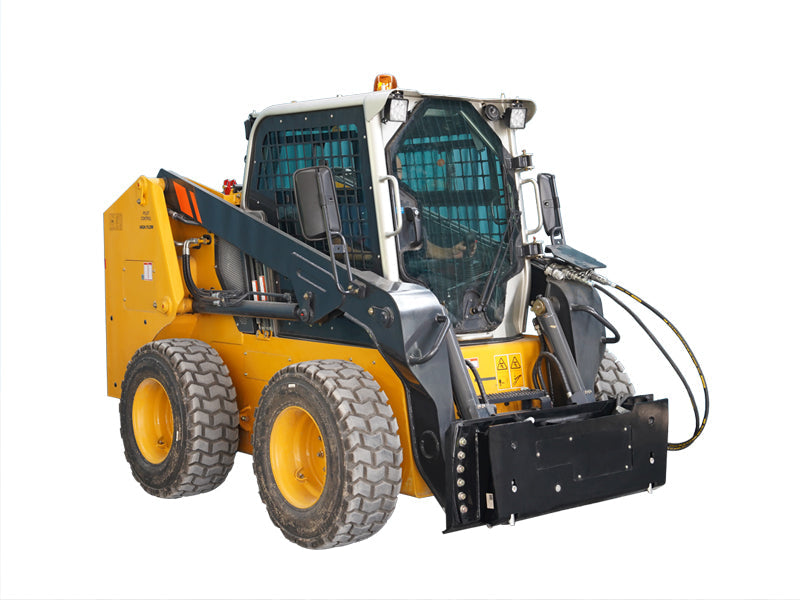

• Universal Quick Attach Compatible: Mounts between your existing skid steer quick attach plate and any standard attachment — no permanent modifications required
• Reduces Total Job Time: Eliminates repeated machine repositioning to compensate for uneven terrain — minimizes soil disturbance and delivers a cleaner, more professional finish on grading, ditching, and landscaping projects
• Heavy-Duty Steel Construction: Built for long-term durability in demanding field and site conditions at 164kg
• Maximizes Existing Attachment Value: Transforms every attachment you already own — buckets, blades, and more — into a tilt-capable precision tool

Technical Specifications

• Model: S-HTMP1140
• Tilt Angle: Up to 20° (left & right)
• Dimensions (W×D×H): 1180 × 226 × 470 mm
• Operating Pressure: 16 MPa
• Hydraulic Flow: 60 LPM
• Weight: 164 kg
• Mount: Universal Skid Steer Quick Attach (MP1140 compatible)

Ideal For

• Grading & finish grading — precise angle control on sloped terrain
• Ditch cutting & swale forming — consistent side-slope angles without machine repositioning
• Landscaping — level bucket and blade operation on hillside and uneven ground
• Site preparation — earthmoving precision on complex terrain profiles

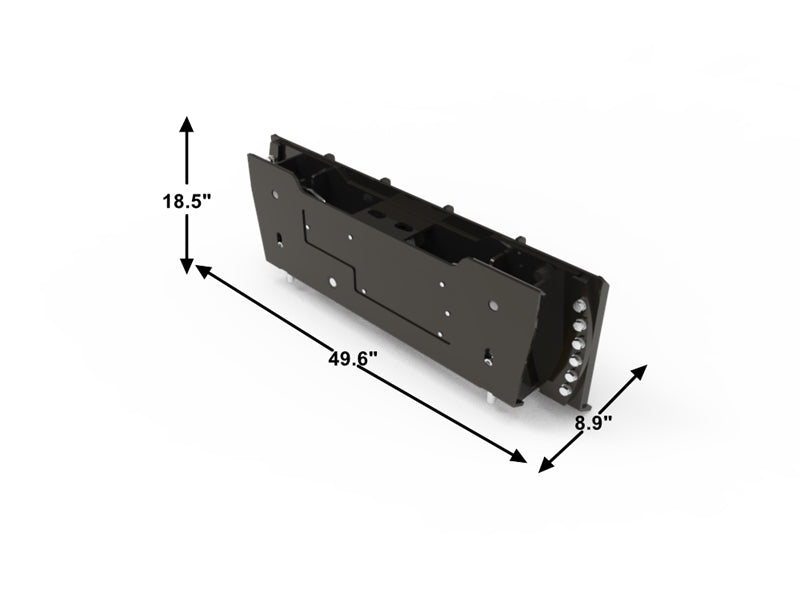

Technical Drawing:

Contact LANDYINDUS for volume pricing, OEM inquiries, or compatibility checks for your skid steer model.
