Skid Steer to PTO Adapter 3 Point Hitch Category 1 & 2 Hydraulic Drive S-PTOMPHDv2

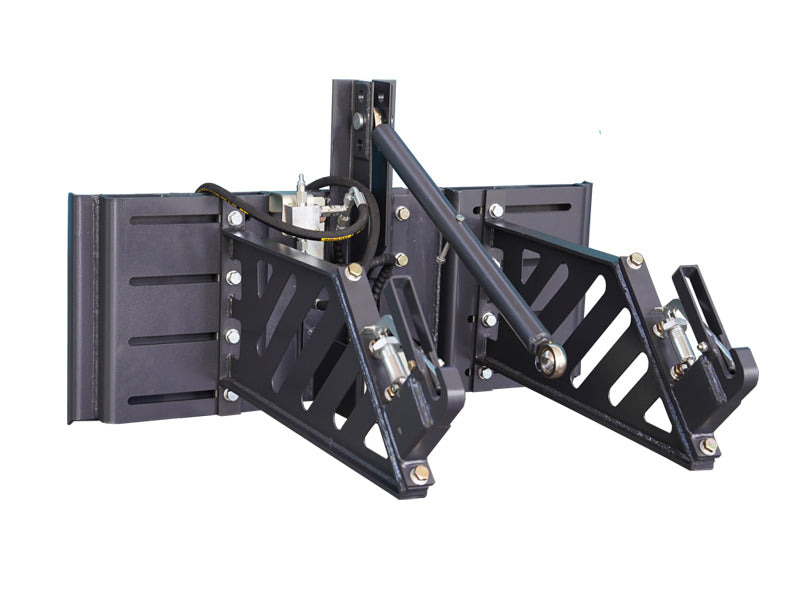

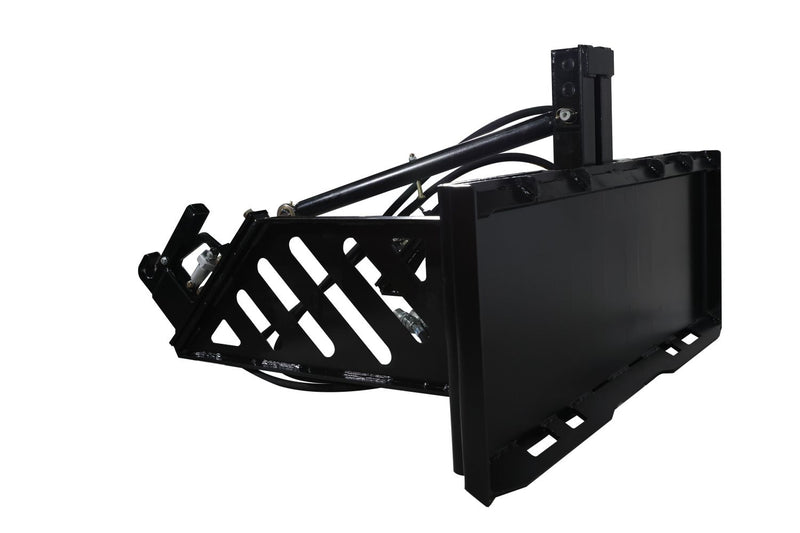

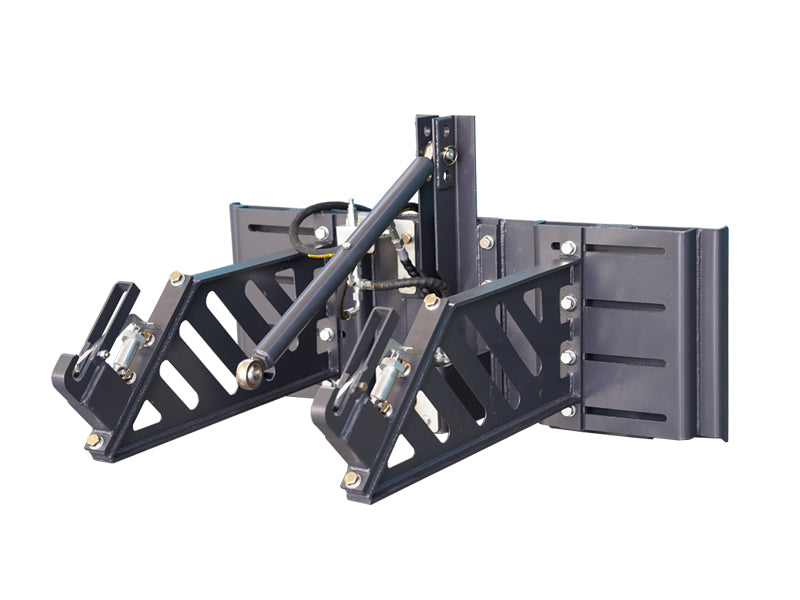

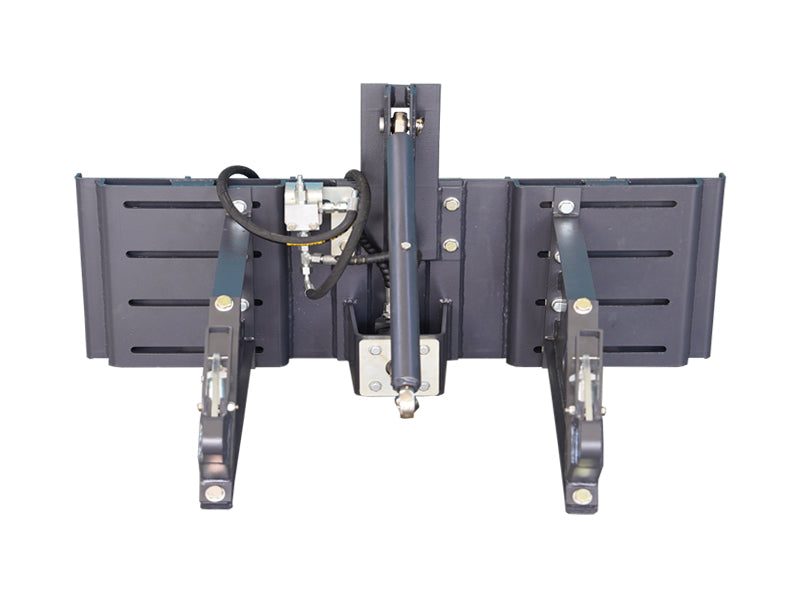

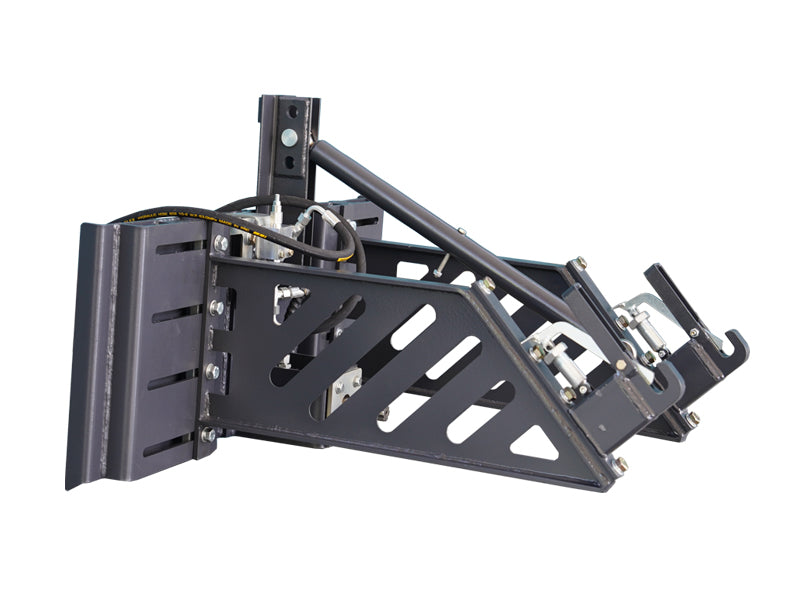

LANDYINDUS Skid Steer to PTO Adapter 3 Point Hitch Category 1 & 2 Hydraulic Drive – S-PTOMPHDv2

Run PTO-driven agricultural attachments from your skid steer — no tractor required. The LANDYINDUS S-PTOMPHDv2 Skid Steer to PTO Adapter connects directly to your skid steer’s hydraulic system, delivering power to a full range of Category 1 and Category 2 three-point implements — rotary cutters, tillers, augers, and more — at 20 MPa / 75 LPM.

Static load capacity: 2,460 lbs. Weight: 150kg. Hoses and flat-faced couplers included.

Key Features

• Skid Steer Hydraulic to PTO Drive: Connects to your skid steer quick attach plate and hydraulic system to power Category 1 & Category 2 three-point implements — rotary cutters, tillers, augers, and beyond — without owning or renting a tractor
• Category 1 & 2 Compatible: Fits both Category 1 and Category 2 pin configurations for the widest possible range of three-point implements already in your inventory
• Quick-Connect Lower Links & Adjustable Top Link Bar: Switch between attachments in minutes — reduces downtime between tasks and keeps your operation moving efficiently
• 2,460 lb Static Load Capacity: Heavy-duty steel construction engineered for demanding agricultural and land clearing tasks
• Built-In Relief Valve: Protects the hydraulic motor from pressure spikes — extends service life of both the adapter and your attachments
• 20 MPa / 75 LPM Hydraulic Performance: Consistent PTO-equivalent power output to implements throughout the working day
• Enhanced Lower Pin Hook Assembly: Secure, reliable implement connection under heavy load conditions
• Hoses & Flat-Faced Couplers Included: Complete kit for fast, straightforward installation directly to your skid steer hydraulic circuit

Technical Specifications

• Model: S-PTOMPHDv2
• Skid Steer Interface: Universal Quick Attach (MP1140)
• Implement Interface: Category 1 & Category 2 Three-Point Hitch
• Operating Pressure: 20 MPa
• Hydraulic Flow: 75 LPM
• Static Load Capacity: 2,460 lbs (1,115 kg)
• Dimensions (L×W×H): 1048 × 1232 × 699 mm
• Weight: 150 kg
• Included: Hydraulic hoses, flat-faced couplers, adjustable top link bar, quick-connect lower links

Ideal For

• Farmers — running rotary cutters, tillers, and augers from a skid steer without a tractor
• Land clearing operators — PTO-driven implement power from existing skid steer equipment
• Property managers — maximizing skid steer versatility across Category 1 & 2 agricultural implements
• Contractors — eliminating the cost and complexity of maintaining a second tractor machine

Technical Drawing:

Contact LANDYINDUS for volume pricing, OEM inquiries, or compatibility checks for your specific skid steer and PTO implement models.
